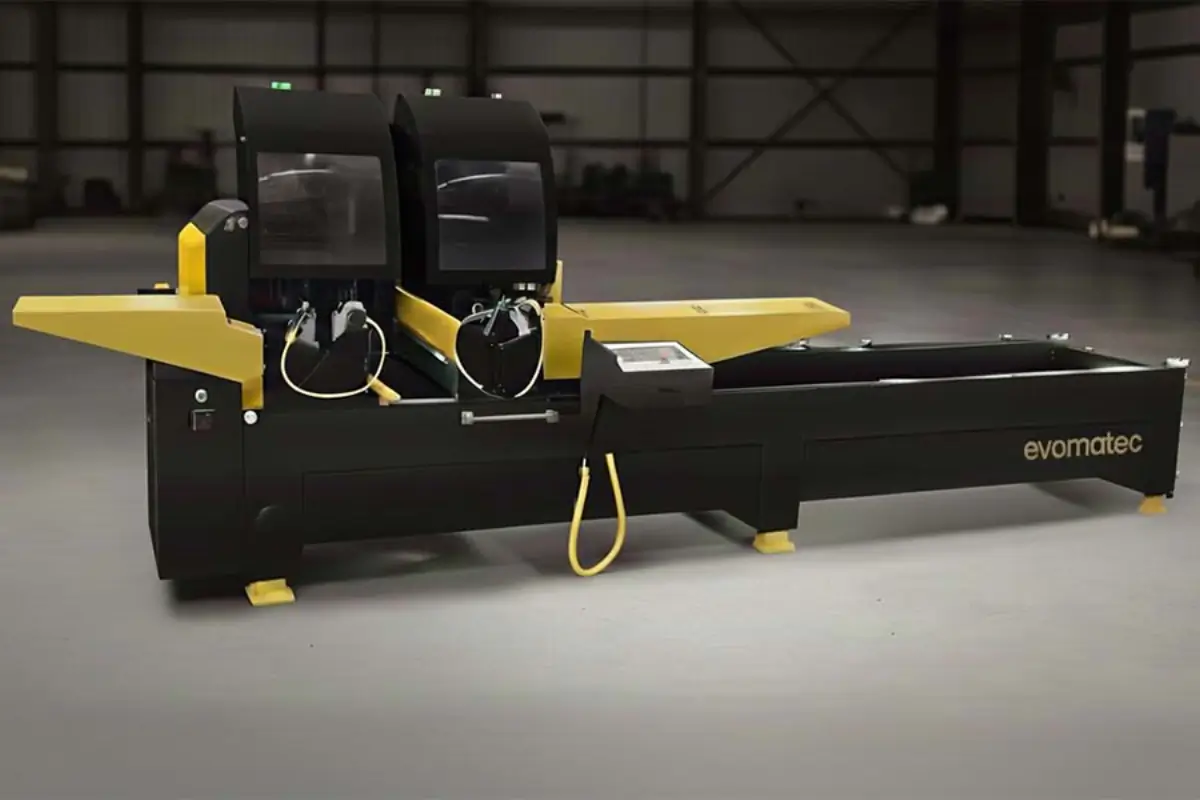

DOUBLE MITRE SAW FOR WOOD PROFILES EVOG SAWH

‹ ›

Double Mitre Saw for Wood Profiles – EVOG SAWH

Highest Precision, Industrial Efficiency, and Digital Control for Wood Profile Processing

Precision and Performance for Professional Woodworking

The Double Mitre Saw for wood and wood profiles, EVOG SAWH by EVOMATEC, is a highly precise, robust, and industrial-grade CNC saw developed for the accurate cutting of wood profiles in interior finishing, frame construction, and series production. As a modern solution within double mitre saws, it combines a stable machine structure, digital control, and process-safe feed technology to achieve dimensionally stable, splinter-free, and angular cuts.

The EVOG SAWH is a powerful variant for companies that use double mitre saws for wood or double mitre saws for wood profiles in industrial continuous operation. It combines precise mitre technology with efficient material handling and intelligent software for optimized processes.

Double-Sided Cutting with Maximum Precision

The EVOG SAWH double mitre saw is designed for simultaneous double-sided cutting of wood profiles. Both saw heads can be operated synchronously or independently, which saves time in series production and delivers consistent quality. The double-sided cutting significantly increases productivity and ensures repeatable mitres and lengths.

The robust machine base ensures vibration-free operation, long service life, and consistently high cutting quality. Therefore, the EVOG SAWH is one of the wood double mitre saws specifically designed for high volumes and precise fits.

Digital Mitre Control for Precise Angles

The two cutting units are designed for precise angle adjustments and are quickly, accurately, and repeatably positioned via digital control. The digital angle adjustment supports mitres for frame joints, polygonal shapes, and special constructions in woodworking. The precise control ensures that dimensional stability is maintained even with varying profile geometries.

CNC Control and Length Processing with Measuring System

Through digital length measurement and CNC-controlled positioning, the EVOG SAWH automatically and millimetre-precisely aligns each workpiece. The integrated double mitre saw length measurement system supports the production of repeatable lengths and reduces measurement errors. Combined with the double mitre saw fence and precise positioning, stable processes are achieved in series production.

For material efficiency, the control system can support double mitre saw optimization functions, including double mitre saw cut optimization and double mitre saw scrap optimization to reduce waste and improve material utilization.

Hydro-Pneumatic Feed Technology and Material Handling

The EVOG SAWH is designed for process-safe material movement. Depending on the configuration, the machine operates as a double mitre saw pneumatic or double mitre saw hydro-pneumatic to achieve smooth cutting motion. This setup supports a double mitre saw with feed for controlled, clean cuts and consistent surface quality.

For series production, stable material handling is crucial. Therefore, the EVOG SAWH can be equipped with roller conveyor systems, such as double mitre saw with roller conveyor, double mitre saw infeed conveyor, and double mitre saw outfeed conveyor. Combined with double mitre saw with material feed, cycle times are reduced, and operating processes are simplified.

Versatility for Wood Profiles and Profile Shapes

The EVOG SAWH double mitre saw is suitable for various wood profile shapes and cross-sections, from classic moulding profiles to complex frame systems. The right tool selection is crucial: The machine uses double mitre saw carbide saw blade and special wood blades as double mitre saw wood saw blades to achieve splinter-free cutting edges.

Depending on the application, the EVOG SAWH can be configured for different diameters, such as double mitre saw blade 400 mm, double mitre saw blade 450 mm, double mitre saw blade 500 mm, double mitre saw blade 550 mm, or double mitre saw blade 600 mm. This allows the machine to be customized according to profile height, cutting requirements, and production logic.

Automation and Integration into Production Lines

The EVOG SAWH can be delivered as a CNC version with automatic head positioning and is designed for integration into automated production lines. This enables a continuous process from profile handling and measurement to cutting. The digital data interface supports fast setup times and reproducible programs for both series and custom production.

Typical Applications

Interior finishing: precise cuts for mouldings and profiles

Frame construction: wooden frames, door and window elements with precise mitres

Furniture manufacturing: precise frame parts and structural joints

Stairs and wood construction: exact angles and repeatable lengths

Industry: series production of wood profiles and system components

Technical Features of the EVOG SAWH Double Mitre Saw

Advanced Equipment and Options

CNC positioning of both heads

Digital angle and length storage

Cut parameters optimization via software functions for double mitre saw optimization

Spray mist or air cooling system depending on wood material and cutting task

Barcode integration and USB/Ethernet interface for data transfer

Chip and dust extraction, as well as integrable roller conveyor systems

Advantages of the EVOG SAWH Double Mitre Saw

Highest cutting precision through two synchronized heads

Digital control for repeatability and quick reconfiguration

Process-safe feed and clamping technology for splinter-free wood cutting edges

Efficient material handling with roller conveyor, infeed conveyor, and outfeed conveyor

High flexibility due to configurable saw blade diameters and wood saw blades

CE certified safety with protective covers and emergency stop system

Quality and Manufacturing Reliability

Each EVOG SAWH is manufactured, tested, and calibrated according to European standards. Evomatec ensures high dimensional accuracy, vibration-free cutting motion, electrical and pneumatic safety checks, and comprehensive functional and stress testing before delivery.

Conclusion – Precision, Stability, and Efficiency in Perfection

The EVOG SAWH is a powerful double mitre saw for wood and wood profiles, designed for precise mitres, efficient material flow, and digital process security. It is the optimal choice for companies using double mitre saws for wood profiles in series production, expecting the highest cutting quality, repeatability, and cost-efficiency.

EVOMATEC – Machines for Precise Wood Profile Processing.
