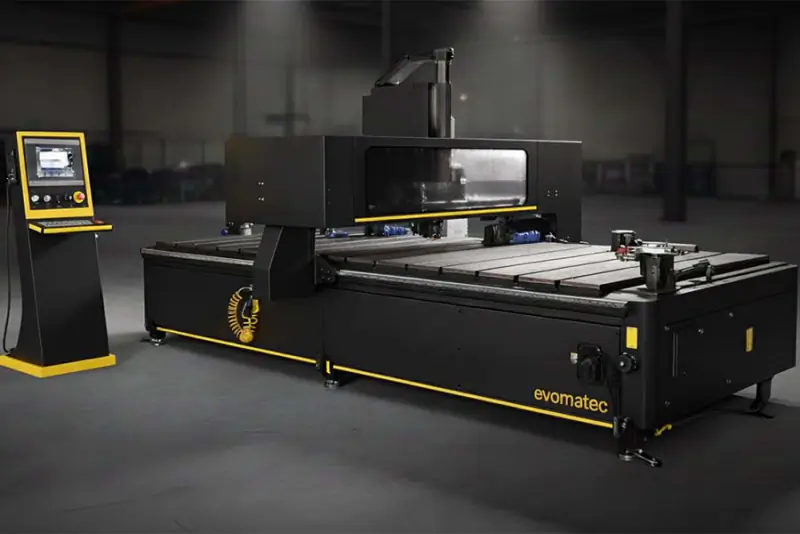

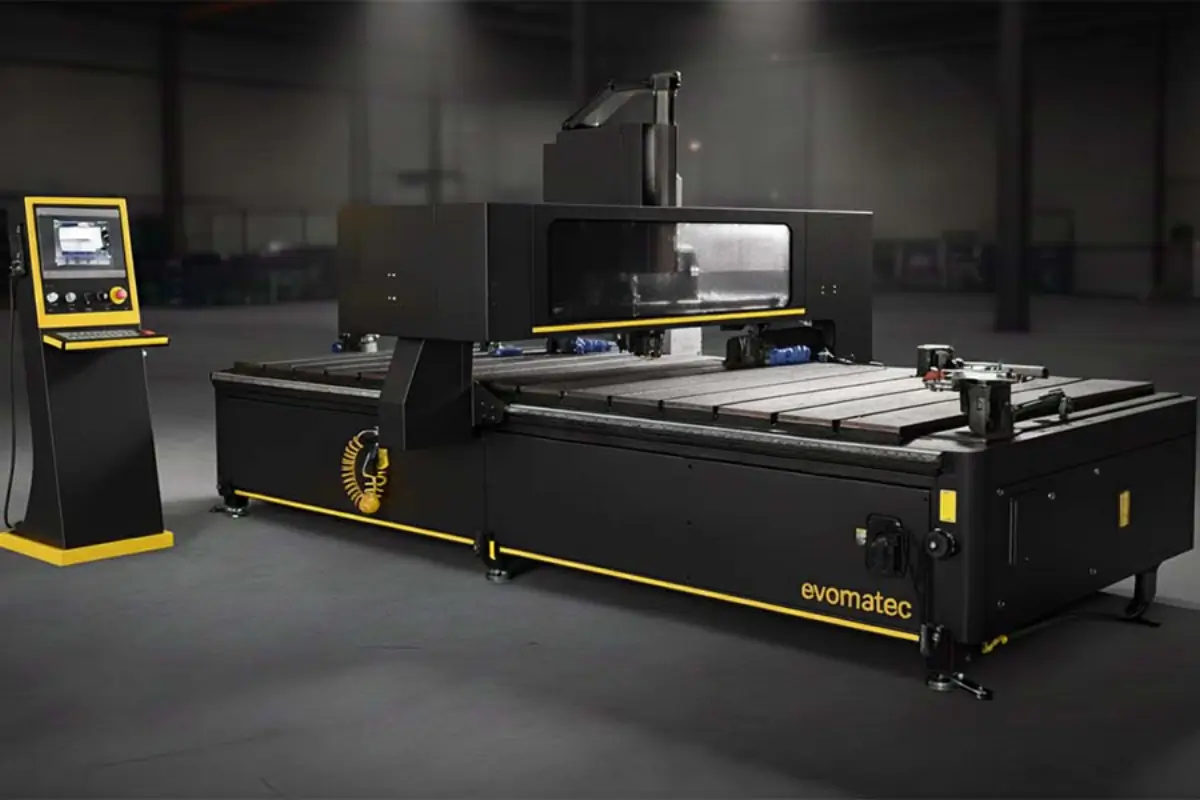

ACP ALUMINIUM COMPOSITE PANEL MACHINING CENTER EVO X

‹ ›

ACP Panel Machining Center EVO X – High-Precision CNC Machine for Aluminium Composite Panels

The ACP Panel Machining Center EVO X is a high-end CNC machining center for aluminium composite panels, engineered for precise cutting, milling and drilling of ACP sheets in demanding industrial environments. Designed for façade construction, interior fit-out and professional signmaking, this CNC machine for aluminium composite panels delivers outstanding accuracy, energy efficiency and long-term reliability in continuous operation.

With its large 4000 × 1600 × 250 mm machining area, powerful 7.5 kW spindle and automatic tool changer, the EVO X ACP panel machining center combines industrial performance with user-friendly CNC control and full CAD/CAM compatibility – making it the ideal solution for companies that need a future-proof CNC machine for ACP panels and other lightweight materials.

High-Performance CNC Technology for Aluminium Composite Panels

Advanced CNC Control for 3-Axis Precision

The EVO X ACP panel machining center is equipped with a modern CNC control system that provides:

• Digital precision on 3 axes

• Smooth, dynamic motion control

• High positioning speeds for maximum productivity

The controller is operated via a 15" touchscreen, giving the operator a clear and intuitive interface. USB and network connectivity ensure seamless data transfer from CAD/CAM workstations and ERP systems.

Large Machining Area for Oversized ACP Panels

With a machining area of 4000 × 1600 × 250 mm, the EVO X is specifically designed for large-format aluminium composite panels:

• Reliable processing of full-size ACP sheets

• Safe clamping thanks to a high-performance vacuum table

• Flexible use for aluminium, plastics, wood and composite materials

This makes the CNC machining center ideal for façade cladding, large signboards, design panels and interior wall elements where full panel size and precise contour machining are crucial.

High-Performance Spindle for Clean Cuts and Perfect Edge Quality

At the heart of the EVO X ACP panel machining center is a robust spindle:

• Spindle motor power: 7.5 kW

• Speed: up to 24,000 rpm

• ISO 30 tool holder

The high spindle speed, combined with suitable cutting tools, ensures:

• Accurate cuts with clean edges

• Excellent surface quality on ACP panels

• Reliable machining of aluminium, plastics, wood and composite sheets

This spindle concept is tailored to continuous industrial use and supports both 2D and 3D machining operations.

Technical Specifications of the EVO X ACP Panel Machining Center

CNC Control and Machine Dimensions

• CNC control with digital precision on 3 axes

• Machining area: 4000 × 1600 × 250 mm

• 2D and 3D machining capability

• Alphacam CAD/CAM compatibility for efficient programming

Spindle, Tool System and Feed Rates

• Spindle motor power: 7.5 kW

• Speed: 24,000 rpm

• Tool holder: ISO 30

• Automatic tool magazine for 5 tools

• Positioning speed on X and Y axes: 55 m/min

• Positioning speed on Z axis: 15 m/min

The automatic tool changer reduces setup times and allows seamless switching between cutting, drilling and milling tools, which is particularly important in series production and mixed part batches.

Dust Extraction, Vacuum System and Power Supply

• Dust extraction: 3 kW power

• Air flow: 700 m³/h

• Two high-performance vacuum pumps with 7.5 kW each

• Total machine power: 38 kW

• Voltage: 400 V

• Frequency: 50–60 Hz

• Required air pressure: 6–8 bar

The dust extraction system and powerful vacuum pumps ensure clean working conditions and secure clamping of aluminium composite panels and other sheet materials during CNC machining.

Key Advantages of the EVO X CNC Machining Center for ACP Panels

Maximum Precision for Cutting, Drilling and Milling

The ACP panel machining center EVO X delivers high-precision results in all machining operations:

• Accurate contour cutting of ACP panels

• Precise drilling for fixings, fittings and mounting systems

• Clean milling of grooves, pockets, slots and decorative patterns

The combination of a rigid machine frame, powerful CNC control, high-speed spindle and controlled vacuum clamping ensures that tolerances remain stable even in continuous industrial operation.

Automatic Tool Changing for Minimal Setup Times

The automatic tool magazine for 5 tools allows the CNC machining center to:

• Change tools automatically without operator intervention

• Combine multiple operations (cutting, drilling, milling) in a single program

• Reduce setup and idle times in series production

This makes the EVO X particularly attractive for companies that want to increase throughput and reduce non-productive time in ACP panel processing.

Low-Vibration Operation and Excellent Edge Quality

The mechanical design of the EVO X ACP panel machining center is optimised for low vibration:

• Rigid machine structure

• Precisely engineered guides and bearings

• Optimised drive technology

This low-vibration behaviour results in:

• Perfect edge quality on aluminium composite panels

• Minimal rework and cleaning at the edges

• Long service life of tools due to stable cutting conditions

Energy-Efficient Technology and Long Service Life

The EVO X CNC machining center is designed to offer energy-efficient operation:

• Efficient use of drives and vacuum systems

• Robust components dimensioned for long service life

• Reduced maintenance requirements

This energy-optimised concept helps lower operating costs and supports sustainable production strategies.

Safe Workpiece Clamping with Independent Vacuum Zones

Independent vacuum zone control ensures:

• Secure clamping of ACP panels and sheet materials

• Flexible clamping of smaller parts and nested parts

• Stable machining conditions even for complex contours

This is essential when machining cut-outs, grooves and small elements in large aluminium composite panels.

Safety and Operator Protection

The EVO X ACP panel machining center includes:

• Metal safety barriers on three sides of the working area

• Clearly structured operator panel

• Emergency stop and safety functions integrated into the CNC system

This safety concept provides a secure working environment and supports compliance with industrial safety standards.

User-Friendly CNC Control and CAD/CAM Integration

Intuitive Operation via Touchscreen

The EVO X CNC machine for aluminium composite panels features a user-friendly interface:

• 15" touchscreen control

• Clear menu structure for all CNC functions

• Simple access to setup parameters and tool management

This reduces the learning curve for operators and supports efficient day-to-day use of the ACP panel CNC machining center.

Seamless Workflow with Alphacam and CAD/CAM Systems

Thanks to Alphacam CAD/CAM compatibility and standard data interfaces, the EVO X ACP panel machining center fits perfectly into digital production environments:

• Import of CAD geometries and panel layouts

• Creation of efficient tool paths for cutting, drilling and milling

• Optimisation of machining strategies for aluminium composite panels

USB and network connectivity make it easy to transfer programs from CAD/CAM workstations to the machine, reducing manual data entry and potential sources of error.

Typical Applications of the EVO X ACP Panel Machining Center

Façade Construction and Architectural Cladding

In façade construction, aluminium composite panels are used for:

• Architectural cladding and ventilated façades

• Design elements and building envelopes

• Functional and decorative façade components

The EVO X ACP panel machining center enables:

• Precise milling of V-grooves for folding ACP panels

• Accurate drilling for fixings and mounting structures

• Contour machining for bespoke façade panels and special shapes

Signmaking and Advertising Technology

For signmaking and advertising applications, the CNC machine for aluminium composite panels is ideal for:

• Production of illuminated signs and display systems

• Machining of signage and corporate identity panels

• Cutting and milling of design panels and decorative elements

The EVO X provides the flexibility and precision required to produce complex shapes, radius transitions, recesses and cut-outs in ACP sheets and other materials.

Interior Fit-Out and Architectural Interiors

In interior fit-out, the ACP panel machining center EVO X is used for:

• Wall and ceiling claddings

• Furniture components and partition elements

• Decorative panels and design features

Thanks to its large machining area and high precision, the CNC machine supports creative interior design concepts and series production of high-quality elements.

Industrial Manufacturing and Component Production

Beyond façade and interior projects, the EVO X CNC machining center for aluminium composite panels can be used for:

• Series production of technical components

• Machining of aluminium, plastics, wood and composite materials

• CNC machining of complex parts with contours, cut-outs and pockets

The flexibility of the machine allows manufacturers to process ACP panels and other materials on one platform, increasing overall utilisation and productivity.

Why Choose the EVO X ACP Panel Machining Center

Designed for Industrial-Grade Performance

The EVO X ACP panel machining center is engineered for continuous industrial operation:

• Robust construction for high-duty cycles

• Reliable components and high-quality drives

• Stable performance even in multi-shift production

This makes the EVO X a long-term investment for companies that rely on consistent output and quality.

CE-Certified, Low-Maintenance and Future-Proof

The CNC machining center is CE-certified and designed with:

• Low maintenance requirements

• Modern control technology

• High flexibility for future product changes

This ensures that the ACP panel machining center remains compatible with evolving production needs and industry standards.

Ideal CNC Machine for Aluminium Composite Panels

For companies working with ACP sheets and other lightweight materials, the EVO X offers:

• A dedicated CNC machining center for aluminium composite panels

• Large-format machining capability

• Integrated dust extraction and vacuum clamping

• High-quality cutting, drilling and milling results

In short, it is the ideal CNC machine for ACP panels in demanding industrial environments.

Conclusion – The Premium Machining Center for ACP Panels

The ACP Aluminium Composite Panel Machine EVO X stands for high performance, precision and durability at an industrial level. With its modern CNC control, automatic tool changer, powerful spindle and robust construction, it provides everything required for professional machining of aluminium composite panels and other sheet materials.

Whether in façade construction, signmaking, interior fit-out or industrial component manufacturing, the EVO X ACP panel machining center offers maximum cutting quality, short setup times and outstanding operational reliability. Companies that focus on efficiency, precision and future-proof CNC technology make the right decision with the EVO X when selecting a CNC machining center for aluminium composite panels.
