CUTTING MACHINE & MILLING MACHINE FOR ALUMINIUM COMPOSITE PANELS EVO LI ECO

‹ ›

CNC CUTTING MACHINE & MILLING MACHINE FOR ALUMINIUM COMPOSITE PANELS EVO LI ECO – HIGH-PRECISION ACP PROCESSING FOR INDUSTRY

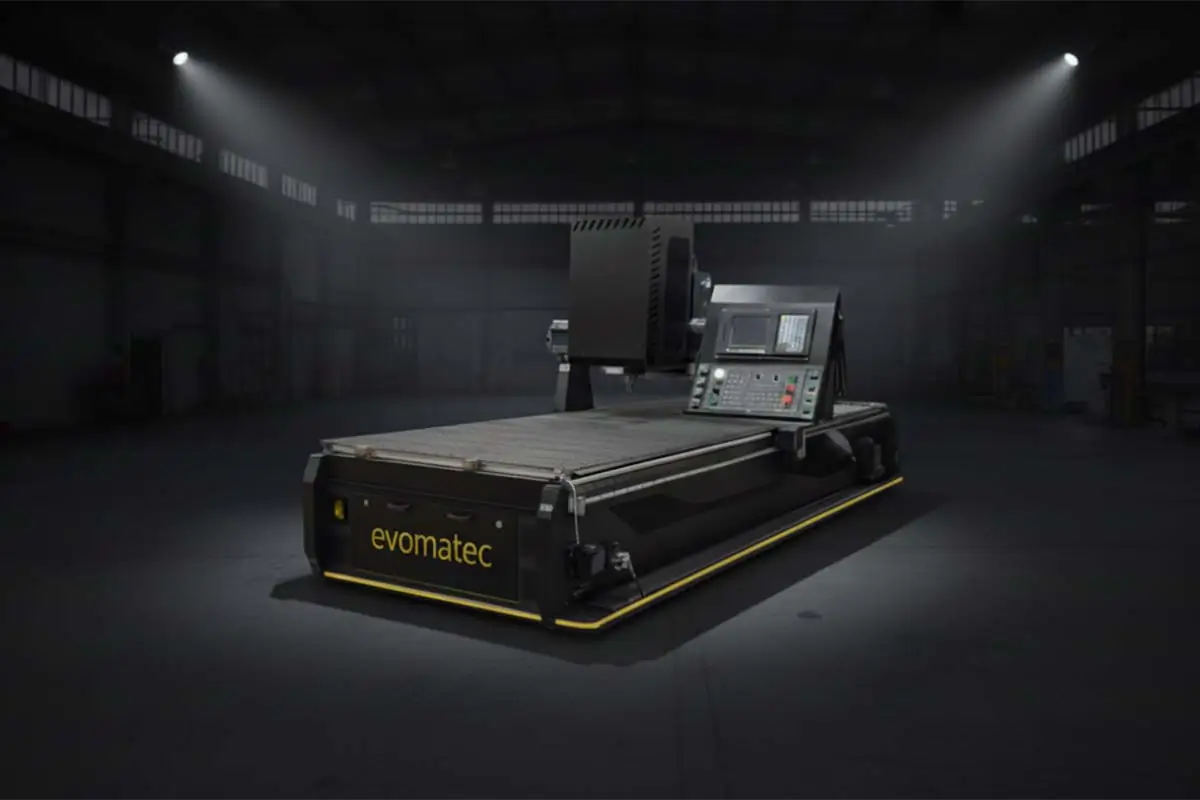

The CNC cutting and milling machine for aluminium composite panels EVO LI ECO is a premium ACP machining center for manufacturers who demand maximum precision, efficiency and reliability in façade, signage and interior production. With its modern 4-axis CNC control, robust mechanical design and optimised energy consumption, the EVO LI ECO provides a future-proof platform for professional aluminium composite processing

4-AXIS CNC TECHNOLOGY FOR ALUMINIUM COMPOSITE PANELS

The EVO LI ECO has been specifically developed for the precise cutting, milling, drilling and V-grooving of aluminium composite panels (ACP). The machine combines an intelligent CNC control system with a rigid steel construction, ensuring stable machining conditions even with large-format sheets and complex contours

The generously dimensioned working area of 4000 × 1550 × 250 mm allows the processing of a wide range of panel formats used in modern façade and advertising technology. This makes the EVO LI ECO ideal for both project-based production and continuous industrial series manufacturing

Four high-performance spindle motors, each with 3 kW power and speeds up to 18,000 rpm, guarantee clean cutting edges, precise bore holes and high-quality milling results. Even demanding geometries, radius parts and intricate cut-outs are produced with high repeat accuracy

The integrated automatic tool changer performs tool changes in around 2.5 seconds, reducing idle times and increasing overall productivity. The additional B-axis with a rotational speed of 10°/s extends the machining flexibility and enables highly accurate work on inclined surfaces – perfect for V-grooves, chamfers and contour milling on aluminium composite panels

TECHNICAL SPECIFICATIONS OF THE EVO LI ECO CNC MILLING MACHINE

• 4-axis CNC control with digital high-precision regulation

• Working area: 4000 × 1550 × 250 mm

• Automatic tool change: approx. 2.5 seconds

• Spindle motor power: 4 × 3 kW

• Spindle speed: up to 18,000 rpm

• Tool holder system: ER20

• Dust extraction motor: 3 kW, approx. 700 m³/h air flow

• Vacuum motors: 2 × 7.5 kW

• Control unit: 15″ industrial touchscreen display

• Power supply: 400 V, total connected load 38 kW

• Frequency: 50–60 Hz

• Required air pressure: 6–8 bar

• 2D/3D machining: compatible with Alphacam CAD/CAM software

These specifications make the EVO LI ECO a powerful and efficient CNC cutting and milling machine for aluminium composite panels, ideally suited for demanding industrial environments

KEY ADVANTAGES OF THE EVO LI ECO ACP MACHINING CENTER

The EVO LI ECO ACP machining center combines modern CNC technology with robust mechanical engineering to ensure consistently high machining quality with minimal maintenance effort

• Maximum precision in cutting, milling, drilling and V-grooving

• Ultra-fast tool change for maximum output and short cycle times

• Vibration-free machine frame for excellent surface finish and clean edges

• CE-certified design for proven safety and operational reliability

• Energy-efficient operation and maintenance-friendly component layout

• Integrated vacuum table with 5 individually controlled zones for secure clamping of different panel sizes

• Laser safety barriers and a fully enclosed metal housing for high operator protection

• Full Alphacam integration for precise digital 2D and 3D manufacturing workflows

The EVO LI ECO has been designed for companies that need high process speed, repeat accuracy and stable quality, while keeping operating and lifecycle costs under control

APPLICATION AREAS OF THE EVO LI ECO CNC MILLING MACHINE

The EVO LI ECO CNC cutting and milling machine for aluminium composite panels is used in a wide range of industries where aluminium composite sheets and similar materials need to be processed efficiently and precisely

Façade Construction

• Production of façade cassettes and cladding elements made from ACP

• Precise V-grooves, edge machining and cut-outs for architectural building envelopes

• Reliable processing of large-format panels for curtain wall systems and exterior cladding

Signage and Advertising Production

• Manufacturing of illuminated signs, advertising panels, billboards and logo elements

• High-precision contour cuts for lettering, logos and design elements

• Ideal for companies in signmaking, display and advertising technology

Interior Design and Shopfitting

• Machining of wall claddings, furniture fronts, ceiling and partition elements

• Clean visible edges and repeatable quality for design-oriented interior components

• Suitable for shopfitting, exhibition stand construction and architectural interior projects

Industrial Manufacturing and Composite Processing

• Series production of aluminium composite panels, plastics and other composite materials

• CNC-controlled cutting and milling for component manufacture in various industries

• Flexible system for contract manufacturers and OEM suppliers in the façade and industrial sector

Thanks to its combination of flexibility, performance and precision, the EVO LI ECO is the ideal choice for manufacturers who require fast, accurate and cost-efficient ACP machining on an industrial level

CONCLUSION – PREMIUM CNC MACHINING CENTER FOR ACP PANELS

The EVO LI ECO CNC cutting and milling machine for aluminium composite panels stands for high-precision ACP machining, efficient production processes and robust industrial performance. With its 4-axis CNC control, automatic tool changer and vacuum table with multiple zones, it provides all core functions needed for professional aluminium composite panel fabrication

Whether used in façade construction, signage production or interior design, the EVO LI ECO supports short production cycles, consistent quality and improved profitability. For companies that value long-term reliability, high machining quality and future-ready CNC technology for aluminium composite panels, the EVO LI ECO is one of the most attractive solutions in its class
