AUTOMATIC DOUBLE MITRE SAW FOR WOOD EVOG VIH

‹ ›

Automatic Mitre Saw for Wood – EVOG VIH

Precise, Automated Mitre Cuts for Wood Profiles

Highest Precision and Productivity in Wood Profile Processing

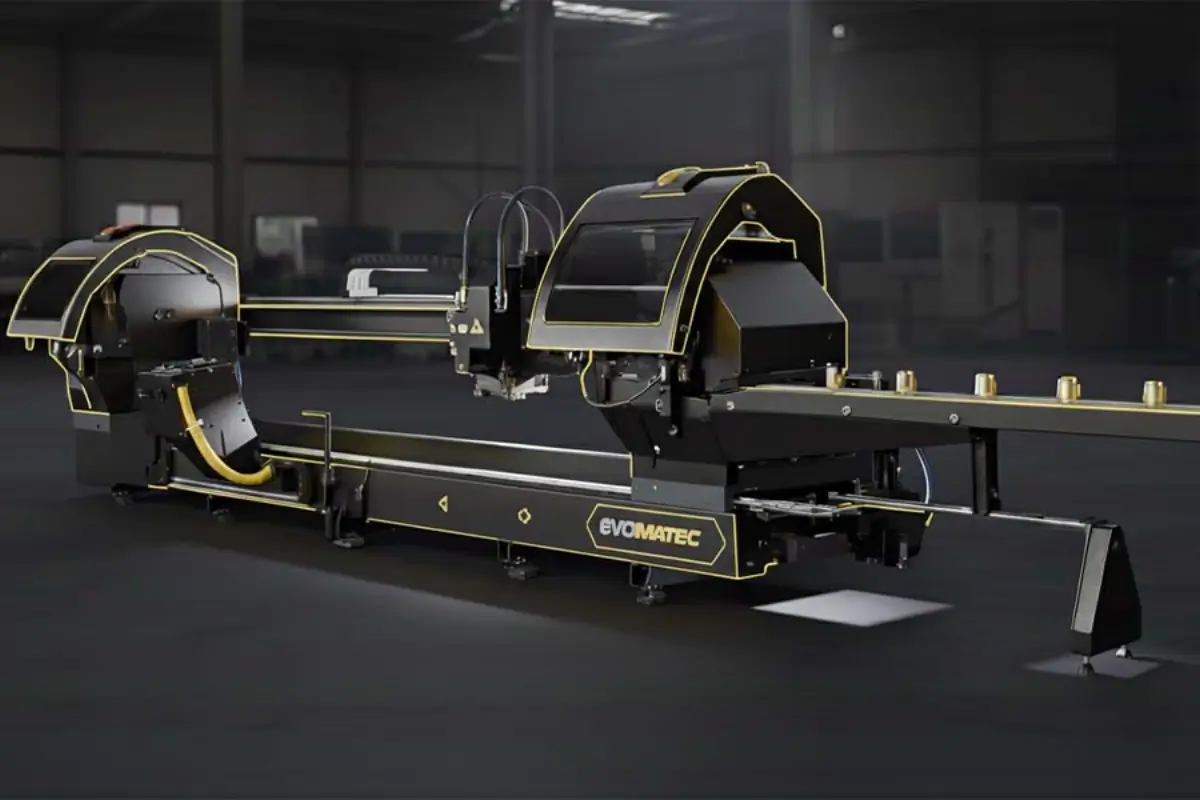

The automatic mitre saw for wood profiles EVOG VIH by EVOMATEC is a highly precise, robust, and industrial-grade CNC saw, designed for the exact mitre cutting at the ends of wood profiles. Ideal for professional wood mitre saw applications, it provides the perfect solution for window, door, and façade construction, where precise, chip-free, and stable cut edges are required.

With its servo-controlled 3-axis technology and automatic angle positioning, the EVOG VIH delivers the highest precision in wood profile processing. It offers a mitre saw cutting length of up to 5,050 mm and is suitable for both short and long wood profiles. This makes the EVOG VIH an ideal choice for manufacturers who rely on a mitre saw for long profiles and precise processing.

Servo Technology for Maximum Precision

The EVOG VIH utilizes state-of-the-art servo technology for fully automatic control of both cutting heads. Each head can be precisely positioned within the angle range of –22.5° to +45°. This servo-controlled precision enables the production of repeatable mitre saw cuts with the highest dimensional accuracy and minimal material loss.

The hydro-pneumatic feed ensures a smooth, vibration-free cutting movement, resulting in clean cut edges and long-lasting tools. This combination of digital control and servo-driven motors guarantees precise, chip-free cuts across all wood profiles.

Technical Features of the EVOG VIH Mitre Saw

Standard Equipment

The EVOG VIH mitre saw comes with a range of standard features for precise and fast processing of wood profiles:

• Two Ø 600 mm carbide saw blades for precise wood cutting
• Servo-controlled dual heads with automatic angle positioning
• Pneumatic clamping systems (horizontal and vertical) for stable workpiece fixation
• Hydro-pneumatic feed control for smooth, controlled cuts
• Spray cooling system to reduce friction and prevent material deformation
• Roller conveyor on moving head for long profiles
• Digital control of feed and cutting speed
• CE-certified safety cover and emergency stop system

Optional Equipment

The EVOG VIH is equipped with several optional extensions to optimize machine operation:

• EVOSOFT cutting optimization system for automatic calculation of efficient cutting sequences
• Barcode printer for production integration and traceability
• Ethernet / USB interfaces for data exchange with ERP / manufacturing software
• Additional intermediate supports for oversized workpieces
• Automatic chip extraction for a clean, low-maintenance operation

Advantages of the EVOG VIH Mitre Saw

1. Highest Precision with Servo Technology

With servo-driven technology, the EVOG VIH enables millimeter-accurate mitre cuts, even with large wood profiles or complex geometries. The mitre saw cutting width and mitre saw cutting capacity can be customized to deliver precise results.

2. Flexibility for Every Profile

The EVOG VIH is ideal for all types of wood profiles thanks to its flexibility. It offers a wide cutting capacity, ranging from short to long profiles. This makes it the perfect mitre saw for wood profiles, especially suitable for series production and fast manufacturing.

3. Maximum Efficiency and Fast Production

The combination of digital control and automatic servo technology guarantees fast production with minimal setup times and maximum cutting precision. The mitre saw fast production and mitre saw short cycle times optimize the manufacturing process and reduce operating costs.

4. Energy-Efficient and Low-Maintenance

With optimized operation of motors and hydraulic systems, the EVOG VIH ensures energy-efficient operation and low maintenance costs. This servo-driven mitre saw is designed for long life and easy maintenance.

5. CE-Certified Safety

The EVOG VIH is equipped with mitre saw safety systems that ensure safe and reliable operation. CE-certified protective covers and an emergency stop system guarantee compliance with all safety regulations.

Applications of the EVOG VIH Mitre Saw

The EVOG VIH is ideal for:

• Window Manufacturing: Precise mitre cuts for window frames and sashes
• Door Manufacturing: Exact mitres for door frames and casings
• Facade Construction: Processing of large profiles for load-bearing and connecting elements
• General Profile Processing: For wood profiles of all types and sizes
• Series Production: Precise and fast processing for high volumes

Quality, Safety, and CE Compliance

Each EVOG VIH mitre saw is manufactured and calibrated to the highest European standards. Evomatec guarantees:

• Highest precision and repeatable cutting movements
• Vibration-free, safe, and reliable machine performance
• Electrical and mechanical safety tests according to EU guidelines
• 100% functionality test and final acceptance with CE certification

Cost-Effectiveness and Investment Security

Through automation, energy optimization, and digital cutting controls, the EVOG VIH is quickly amortized. By purchasing this mitre saw, you invest in a powerful and long-term profitable solution for your wood processing.

Conclusion – Precision, Efficiency, and Flexibility in Perfection

The EVOG VIH is a highly precise, automated mitre saw for wood profiles. With its servo technology, automatic angle adjustment, and robust design, it provides fast, repeatable, and energy-efficient cuts. It is ideal for companies expecting high precision and efficiency in wood profile processing.

EVOMATEC – Machines for precise wood profile processing.
