FULLY AUTOMATIC DOUBLE MITRE SAW FOR WOOD EVOG HX

‹ ›

Fully Automatic Double Mitre Saw for Wood Profiles – EVOG HX

Servo-Controlled Precision, Industrial Performance, and Cutting Lengths up to 6000 mm for Wood Profiles

Precision and Productivity for Wood Profile Processing

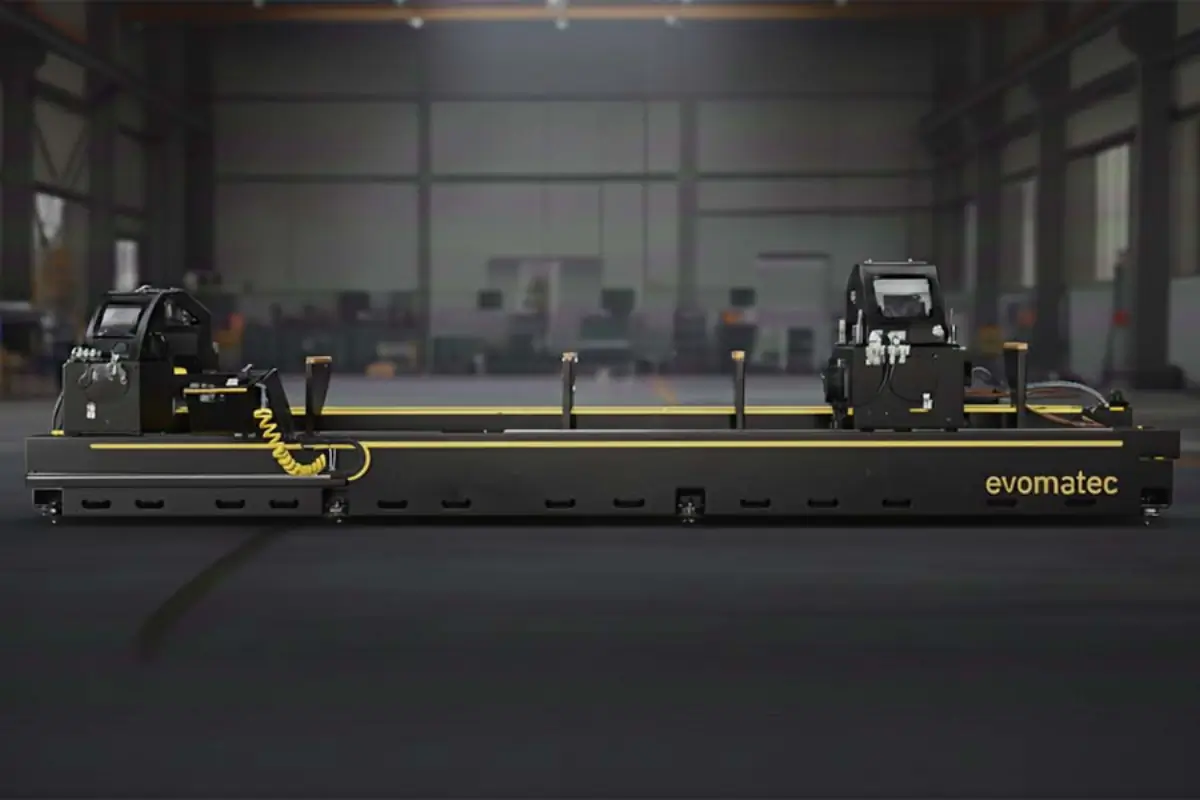

The fully automatic double mitre saw for wood profiles EVOG HX from EVOMATEC is a highly precise, robust, and industrial-grade saw, designed for the exact mitre cutting of wood profiles in window, door, and facade construction. It offers an outstanding combination of servo-controlled 3-axis technology, automatic head positioning, and a maximum cutting length of 6000 mm, allowing for the processing of even long wood profiles with the highest accuracy.

With a cutting width of up to 600 mm and the ability to cut wood profiles in various geometries, the EVOG HX is the ideal solution for operations that require efficient and precise processing for both large and small profiles. This double mitre saw is especially suitable for applications where high repeatability and quality are key.

Servo Technology for Fully Automatic Precision

The EVOG HX utilizes servo-controlled 3-axis technology, enabling precise and automatic positioning of the cutting heads. The angle adjustment is done automatically between –22.5° and +45°, ensuring high flexibility and accuracy when processing wood profiles. This technology ensures precise mitre cuts and clean edges for any profile geometry – even for large and complex wood profiles.

The hydro-pneumatic feed system provides a smooth, vibration-free cutting motion, ensuring that the saw blades are always controlled through the material during the cutting process. The result is precise, tear-free, and burr-free cuts.

Technical Features of the EVOG HX Double Mitre Saw

Standard Equipment

The EVOG HX offers a wide range of standard features for efficient processing of wood profiles:

• Two Ø 550 mm carbide-tipped saw blades for precise cuts in wood profiles
• Servo-controlled rotating axes for exact angle positioning of both heads
• Automatic angle positioning from –22.5° to +45°
• Pneumatic clamping systems (horizontal and vertical) for stable workpiece fixation
• Hydro-pneumatic feed control for smooth, precise cutting motion
• Spray cooling system to reduce friction and improve cutting quality
• Roller table for processing long profiles
• Digital control of feed and cutting speed via a 10" touchscreen control panel
• CE-certified safety cover and emergency stop system

Optional Equipment

The EVOG HX can be equipped with a range of optional features to optimize machine operation:

• EVOSOFT cut optimization system for reducing material waste and managing cut plans
• Barcode printer for production traceability and batch control
• Ethernet/USB interfaces for data transfer
• Additional intermediate supports for extra-long or heavy profiles
• Automatic chip extraction for clean operation and longer tool life

Advantages of the EVOG HX Double Mitre Saw

1. Highest Precision through Servo Control

With servo technology, the cutting heads are precisely and automatically moved to the desired angle positions. This ensures dimensional accuracy and repeatability for every type of wood profile.

2. Maximum Cutting Capacity up to 6000 mm

The EVOG HX offers a double mitre saw maximum profile length of up to 6000 mm, making it ideal for large wood profiles in window, door, and facade construction.

3. Robust Construction for Industrial Continuous Use

The heavy-duty machine bed ensures stability, and vibrations are minimized by the high-quality construction, extending the machine's lifespan.

4. Productivity through Automation

With servo technology, digital control, and the EVOSOFT cutting system, the production process is optimized, setup times are reduced, and throughput is increased.

5. Energy Efficiency and CE Safety

Optimized motor control, automatic cooling, and CE-certified safety components ensure safe and energy-efficient operation of the machine.

Applications of the EVOG HX Double Mitre Saw

The EVOG HX is ideally suited for the following applications:

• Window construction: precise cuts for window frames and sashes
• Door construction: exact mitre cuts for door frames
• Facade construction: large profiles for load-bearing and connection elements
• Industry: series production of wood profiles
• Metalworking: processing of aluminum and light metals

Quality, Safety, and CE Compliance

Each EVOG HX double mitre saw is manufactured and tested according to the highest European standards. Evomatec guarantees:

• Highest precision and repeatable cutting movements
• Vibration-free and stable cutting quality
• Electrical and mechanical safety checks according to EU guidelines
• 100% functional testing before shipment

Economic Efficiency and Investment Security

The EVOG HX enhances production performance, reduces material waste, and lowers energy costs. With the use of servo technology and EVOSOFT optimization, the machine is quickly amortized and offers long-term profitability.

Conclusion – Precision, Performance, and Efficiency in the Premier Class

The EVOG HX offers the highest precision, a wide cutting capacity, and robust construction. It is the ideal solution for companies that require precise, economical, and efficient mitre cuts in wood profile processing.

EVOMATEC – Machines for precise wood profile processing.
