LAMINATED GLASS CUTTING MACHINE EVOGLAS VI

Laminated Glass Cutting Machine EVOGLAS VI – Precision and Efficiency in Laminated Safety Glass Cutting

High-Precision Laminated Glass Cutting System for Industrial Glass Processing

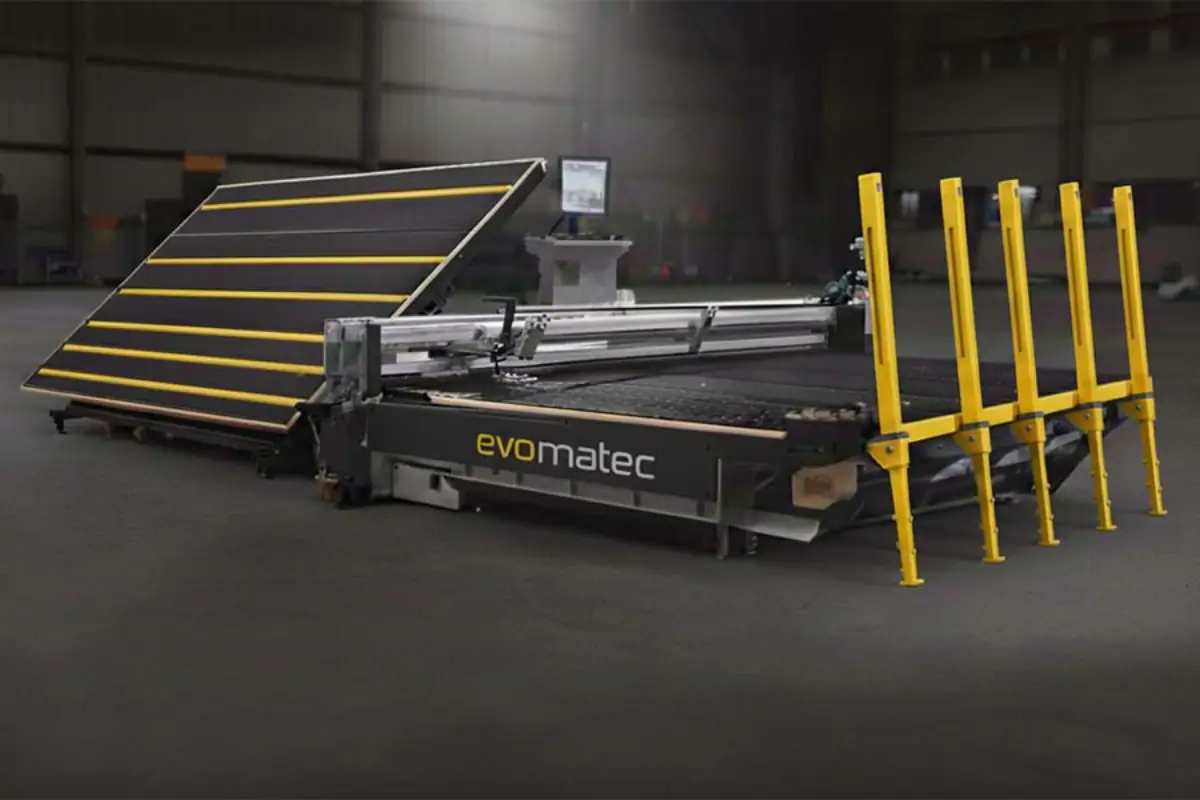

The EVOGLAS VI Laminated Glass Cutting Machine from EVOMATEC is an industrial-grade, high-performance system designed for the precise cutting of laminated safety glass (VSG).
This glass type consists of multiple layers bonded with PVB, EVA, or TPU interlayers. The EVOGLAS VI is engineered to cut these materials with accuracy, cleanliness, and efficiency, ensuring maximum process stability, energy efficiency, and superior edge quality.

With its reinforced steel frame, laser-guided cutting system, and integrated air cushion table, the EVOMATEC EVOGLAS series provides a fully automatic solution for professional laminated glass cutting — ideal for architectural, façade, furniture, and insulating glass production.

Technical Features of the EVOGLAS VI

CNC Precision and German Engineering Combined

Cutting Length: Up to 6000 mm
Glass Thickness Range: 3–19 mm
Power Consumption: 16–18 kW (depending on model)
Power Supply: 380 V / 3-phase / 50 Hz
Machine Weight: 3500–4000 kg for maximum operational stability
Air Cushion System: Ensures smooth movement and precise positioning of large glass sheets
Side Loading and Unloading Arms: Ergonomic handling even for heavy glass panes
Dual Cutting Mechanism: Simultaneous upper and lower cutting without damaging the interlayer
Diamond Cutting Wheels with Oil Feed: Clean scoring with automatic lubrication for extended tool life
Automatic Interlayer Separation: Thermal or air-jet separation along the cutting line for PVB, EVA, or TPU films
Helical Rack & Pinion Drive: Delivers vibration-free motion and consistent cutting precision
Laser Line Guidance: Accurate visual alignment during the entire cutting process
Optimized Airflow Distribution: Maintains uniform table pressure for perfect cutting conditions
CE-Certified Construction: Fully compliant with European safety and quality regulations

Functionality and Operation

Intelligent Cutting Control for Maximum Accuracy

The EVOGLAS VI enables fully automatic cutting of both laminated and flat glass on the same machine — without the need for setup changes.

Glass Positioning

Using the air cushion system and side loading arms, the glass sheet is gently lifted and positioned precisely on the table.

Dual Cutting Process

Diamond-tipped wheels score the top and bottom glass layers simultaneously, achieving burr-free, stress-free cutting.

Automatic Break Separation

Sensors trigger the controlled breaking of the upper and then the lower glass layer for clean separation.

Interlayer Separation (PVB, EVA, TPU)

An integrated heating system warms the interlayer film along the cut line, ensuring a clean and delamination-free separation.

Finished Cut

The result is smooth, stress-free edges, ideal for further processing in insulating, safety, or laminated glass production lines.

Control and Software

EVOSOFT Control System – Intelligence, Automation, and Precision

The EVOGLAS VI is equipped with the EVOSOFT CNC control interface, operated via a modern touchscreen panel.
This intelligent system combines CNC precision, automated process control, and intuitive usability.

Adjustable cutting parameters: speed, pressure, depth, and heating duration
Automatic cutting optimization: calculates the most efficient layout to minimize glass waste
Laser-based alignment: ensures perfect positioning even for complex geometries
Multilingual interface: available in German, English, and Turkish
USB and network connectivity: for fast data exchange and production management
Remote support: online maintenance, software updates, and real-time diagnostics

Safety and Maintenance System

The EVOGLAS VI Laminated Glass Cutting Machine is fully CE-certified and designed for 24/7 industrial operation.

Emergency stop and safety shutdown system
Transparent protective covers for clear visibility and safety
Sensor monitoring for all motion axes
Vibration-free structure for long-term stability and low wear
Easy maintenance access for all lubrication points and filters
Automatic lubrication and oil system for top and bottom cutting wheels

These features ensure maximum uptime, long service life, and low operating costs.

Advantages of the EVOMATEC EVOGLAS VI

1. Industrial-Grade Precision

Dual-sided cutting with laser guidance delivers flawless results on every type of laminated glass.

2. Dual Function for Laminated and Flat Glass

A single machine capable of cutting both laminated and monolithic glass — saving space, energy, and investment costs.

3. Optimized Production Efficiency

Automatic nesting and layout calculation minimize material waste and improve cycle times.

4. Low-Maintenance Design

Durable components, robust mechanics, and an intelligent oiling system reduce maintenance intervals.

5. Energy Efficiency

Optimized motor control, air pressure management, and heating systems reduce overall power consumption.

6. Ergonomics and Safety

Thoughtfully designed with loading arms, an air cushion system, and safety covers for comfortable and secure operation.

Application Areas

The EVOGLAS VI Laminated Glass Cutting Machine is ideal for:

Laminated Safety Glass (VSG) Production
Architectural and Façade Glass Manufacturing
Insulating and Safety Glass Fabrication
Glass Furniture and Interior Design
Automotive and Transportation Glass Processing
Decorative and Specialty Glass Applications

Its high precision and modular structure make it suitable for both custom glass cutting and industrial high-volume production.

Why Choose EVOMATEC

EVOMATEC stands for German engineering excellence, industrial precision, and durable manufacturing technology.
With the EVOGLAS VI Laminated Glass Cutting Machine, Evomatec delivers a forward-looking solution for the modern glass industry, combining efficiency, robustness, and intelligent automation.

Every Evomatec system is manufactured under CE standards, tested in Germany, and used worldwide in leading glass factories, façade production facilities, and insulating glass plants.

Evomatec – Engineering for Precision.
