CNC Glass Cutting Table with Suction Table – Precision, Automation and Efficiency in Glass Processing

Highest Accuracy for Industrial Glass Fabrication

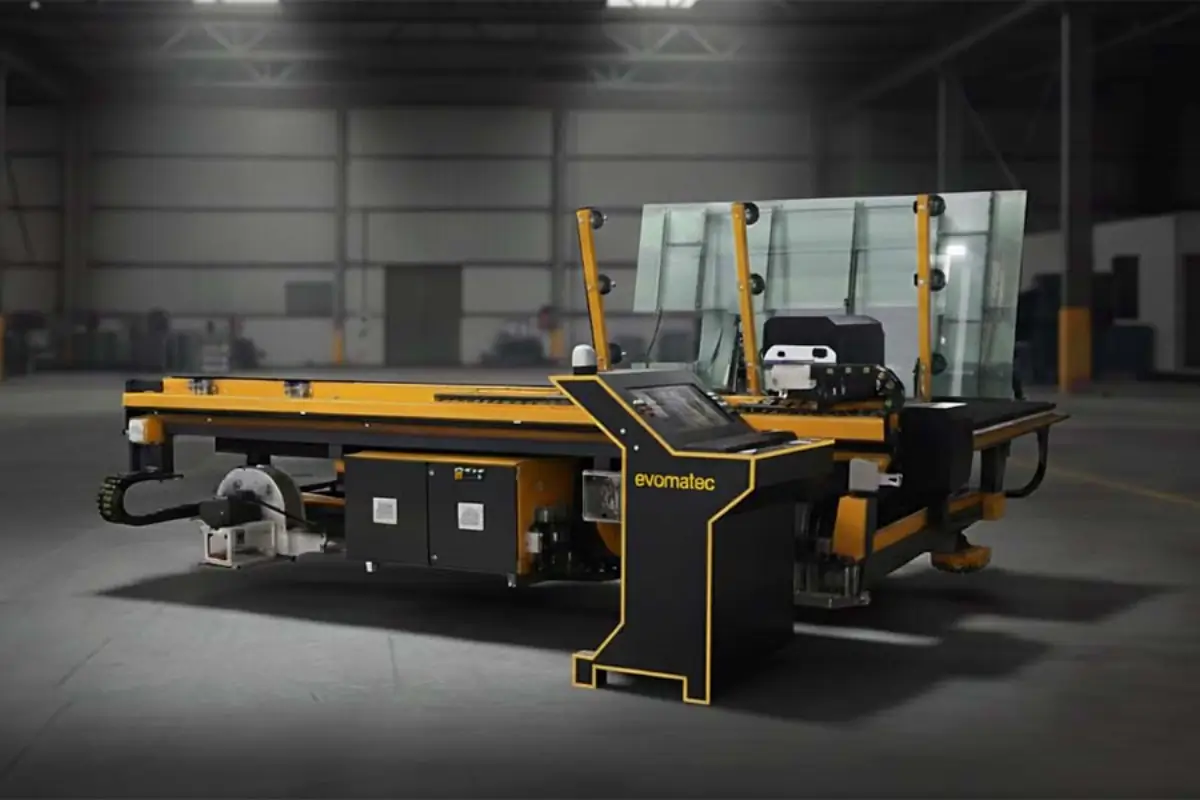

The CNC glass cutting table with suction table, EVOGLAS I from Evomatec, is a highly advanced, fully automatic system designed for precise and efficient flat-glass cutting. Featuring CNC-controlled technology, state-of-the-art pneumatics and a robust steel construction, this machine delivers maximum productivity, repeatability and safety — ideal for industrial glass fabrication, architectural-glass production, as well as furniture and insulating-glass manufacturing.

With computer-controlled precision, automatic pressure regulation and intelligent cut management, the Evomatec CNC glass cutting table consistently ensures top-quality cuts with minimal glass waste.

Technical Features

Precise and Reliable Cutting Performance

  • Glass thickness: 3 to 19 mm

  • Maximum glass size: up to 3210 × 6000 mm

  • Cutting speed: up to 120 m/min

  • Processing types: flat cuts, shaped cuts and oblique cuts

  • Drive system: Helical rack & pinion for smooth motion and exact positioning

  • Cutting pressure: Automatically adjusted based on glass thickness

  • Air-cushion table system: Enables effortless movement of large glass sheets without surface damage

  • Pneumatic & mechanical speed control for maximum operator control

  • Two hydraulic cylinders for the cutting arms, providing stability and uniform pressure

  • Automatic safety system for over-pressure to protect machine and operator

  • Special wear-resistant cutting mat for long service life

  • Powder-coated surface for optimal corrosion protection and industrial durability

  • Machine frame built from high-strength steel for vibration-free performance and constant cut precision, even in multi-shift operation

Software and Control – Intelligence meets Efficiency

EVOSOFT CNC control system
The integrated EVOSOFT control from Evomatec provides maximum precision and intuitive operation. Through the user-friendly interface, all parameters – from cutting pressure to speed – can be individually set and stored.

Technical Highlights:

  • Ethernet & USB data transfer for fast file management

  • Direct AutoCAD interface for import of shapes and patterns

  • Automatic nesting function to reduce glass waste

  • Remote maintenance and online diagnostics via internet

  • Compatibility with other Evomatec machines for integrated production lines

  • High-end electrical components from Siemens, Schneider Electric, Lenze or Omron

  • The intelligent EVOSOFT software automatically recognises glass formats, calculates the most efficient cutting path and optimises material usage — for maximum cost-effectiveness and precision

Automation and Options

Evomatec offers a wide range of optional extensions to adapt the CNC glass cutting table exactly to the customer’s production requirements:

  • Low-E strip-disc (200 mm) for preparation of Low-E glass coatings

  • Automatic plate-alignment (Automatic Squaring) for perfect positioning

  • Laser scanner for edge detection and maximum cutting safety

  • Shape-cut software (Optima-program) for complex patterns and contours

  • Vinyl-cut mode for special glass-foil applications

  • Suction-arm system for precise glass-sheet positioning

  • Automatic breaking table (Auto-Transfer System) for efficient glass break-off and onward transport

These extensions make the Evomatec CNC glass cutting table a flexible part of modern, fully automatic glass-processing lines.

Key Advantages

  • Highest cutting precision – CNC control ensures consistently accurate cuts with tolerances in the hundredths of a millimetre, regardless of glass size or shape.

  • Maximum productivity – With a cutting speed of up to 120 m/min and automatic optimisation of cutting paths, the machine achieves peak efficiency with minimal operator intervention.

  • Intelligent automation – The system operates almost autonomously: glass alignment, pressure regulation, cutting guidance and nesting are all automatically controlled.

  • Cost-effectiveness & sustainability – Automatic material optimisation (nesting) can reduce glass waste by up to 15 %, accelerating ROI (Return on Investment).

  • Durability and low maintenance – Robust mechanics, high-quality drives and easy access components ensure a long service life with minimal maintenance.

  • Safety and CE-compliance – All systems comply with European machine-directive standards. Automatic pressure monitoring, safety shut-offs and emergency stop systems ensure maximum operational safety.

Industrial Use Cases

The CNC glass cutting table with suction table is ideal for:

  • Flat-glass manufacturing

  • Architectural and façade glass

  • Furniture glass production

  • Insulating-glass fabrication

  • Glass refining operations

Because of its precision, speed and reliability, it is perfect for companies processing glass in high volumes with consistent quality.

Conclusion

The CNC glass cutting machine with Vacuum Loader with suction table from Evomatec combines the latest CNC technology, smart software, and robust machine design into one system. It stands for ultimate precision, productivity and operational reliability in industrial glass processing.

With the combination of EVOSOFT control, air-cushion technology, automatic pressure regulation and optional glass-positioning systems, Evomatec provides a solution that meets the demands of modern glass-industry operations – from one-off projects to fully automated series production.
