AUTOMATIC GLASS LOADING TABLE EVOGLAS 2+2

Automatic Glass Loading Table EVOGLAS 2+2 – Intelligent Glass Logistics for Industrial Production Lines

Efficient, Safe, and Fully Automated Glass Handling for Flat and Jumbo Glass Formats

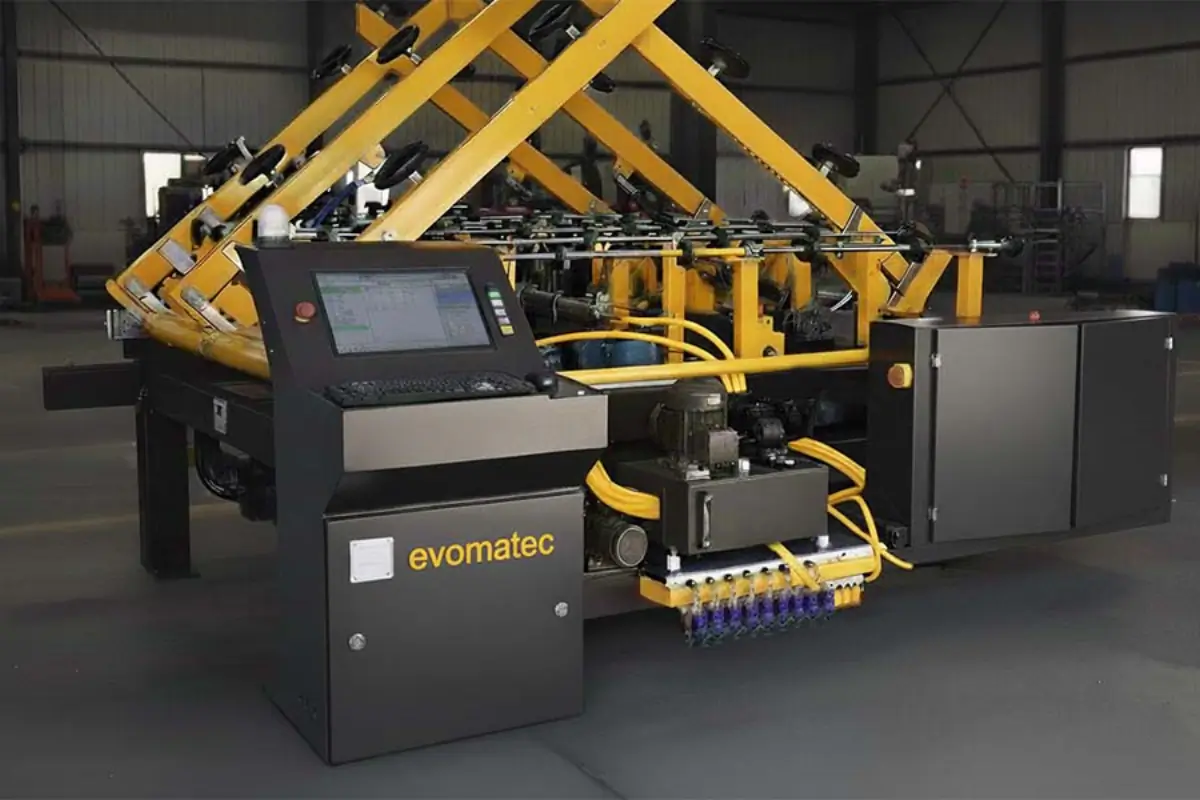

The automatic glass loading table EVOGLAS 2+2 from EVOMATEC is an advanced industrial loading and unloading system designed for the automatic lifting, positioning, and transfer of flat and jumbo glass sheets.
It serves as the perfect interface between glass cutting tables, glass processing centers, and automated production lines.

With precise hydraulic control, a robust machine frame, and intelligent CNC coordination, the EVOGLAS 2+2 ensures maximum safety, ergonomics, and efficiency in glass handling — ideal for architectural, insulating, façade, furniture, and specialty glass production.

Technical Features of the EVOGLAS 2+2

Precision Mechanics and Intelligent Control

Rameyer gear system: Precise motion transfer with adjustable positioning accuracy
Dual hydraulic cylinders: Smooth and uniform lifting and tilting movement
Automatic speed reduction: Soft deceleration at the end of motion for delicate glass handling
Integrated lifting and tilting arm: Ergonomic handling of heavy glass sheets
Spring-loaded suction system: Intelligent vacuum control for safe and stable glass lifting
Automatic vacuum adjustment: Adapts suction strength based on glass size, weight, and coating
Hydraulic and mechanical speed control: Controlled movement with zero impact shock
PC-based control with CNC integration: Software-assisted coordination for precision and synchronization
Remote Internet access: Enables online maintenance, diagnostics, and support
Encrypted control menu: Operator-level access protection for system security
Optical and acoustic alarm system: Real-time fault detection and alerts during operation
Automatic parking mode: Safe standby position between production cycles
Batch monitoring and end-of-cycle control: Continuous supervision during serial production
Powder-coated structure: Electrostatic treatment for corrosion resistance and durability
Electrical components: Siemens, Schneider Electric, Lenze, Omron – CE-certified quality
Ergonomic design: Non-slip work surface, maintenance-friendly access, and optimal operating height

Performance and Specifications

The EVOGLAS 2+2 series is available in two models tailored for different production environments:

EVOGLAS 2+2 – Model 3660

Maximum glass size: 2550 × 3660 mm
Operating speed: 40 m/min
Power: 7 kW
Weight: 2800 kg

EVOGLAS 2+2 – Model 6000

Maximum glass size: 3210 × 6000 mm
Operating speed: 40 m/min
Power: 11 kW
Weight: 3500 kg

Both models are built for continuous industrial operation, ensuring positional accuracy, energy efficiency, and long service life in high-demand environments.

Advantages of the Automatic Glass Loading Table EVOGLAS 2+2

1. Fully Automated Glass Handling

Automatically loads and unloads large and heavy glass sheets, saving time and eliminating manual risk.

2. Precision Hydraulic Control

Provides smooth, balanced movement through fine-tuned hydraulics with automatic pressure regulation.

3. Intelligent Suction System

Vacuum-controlled suction cups automatically adapt to glass thickness, weight, and coating — minimizing breakage risk.

4. Ergonomic and Safe Operation

Reduces manual lifting and ensures safe, stable motion sequences for operator and material protection.

5. Seamless Integration

Fully compatible with CNC glass cutting tables, cutting lines, processing centers, and automated transport systems, ideal for Smart Factory environments.

6. Energy Efficiency and Durability

Optimized hydraulic pressure management and high-grade industrial components ensure low energy use and extended lifetime.

7. Maintenance-Friendly Design

Easy service access, durable structure, and modular design minimize downtime and maintenance costs.

Application Areas

The EVOGLAS 2+2 glass loading table is suitable for a wide range of industrial uses:

Automated glass production lines
Architectural and insulating glass manufacturing (Jumbo sheets)
Façade and window fabrication
Furniture and decorative glass production
Safety, mirror, and laminated glass processing
Glass logistics and warehouse automation systems

Whether for flat, coated, or specialty glass, the EVOGLAS 2+2 provides a reliable, safe, and efficient solution for modern manufacturing operations.

Why Choose EVOMATEC

EVOMATEC stands for German engineering excellence, technical precision, and industrial durability.
With the EVOGLAS 2+2 automatic glass loading table, Evomatec sets a new benchmark in automated glass logistics — combining intelligent control, energy-efficient hydraulics, and operator-oriented design.

Thanks to its modular integration, robust components, and intuitive control system, the EVOGLAS 2+2 is the perfect solution for any glass production facility focused on efficiency, ergonomics, and safety.
