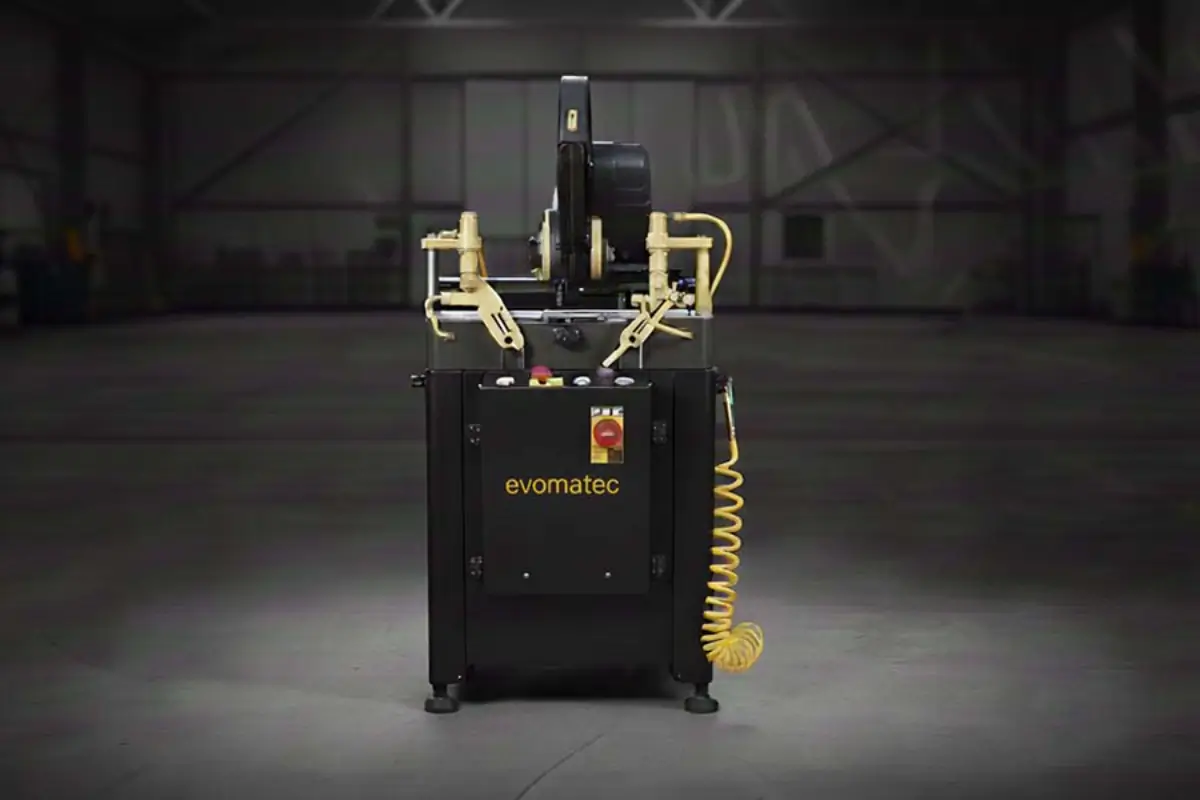

AUTOMATIC MITRE SAW FOR WOOD & WOOD PROFILES WITH STAND EVOM II WOOD

‹ ›

AUTOMATIC MITER SAW FOR WOOD AND WOOD PROFILES WITH STAND – EVOM II WOOD

Professional miter saw with hydro-pneumatic feed and stable stand solution for precise miters,low-tear-out cut edges and reliable serial production in woodworking

Precise cutting of wood profiles through hydro-pneumatic feed technology

The EVOM II WOOD is an automatic miter saw with stand for wood for precise,clean and repeatable cuts in wood,hardwood,softwood and common wood profiles. Thanks to the hydro-pneumatic feed system,pneumatic clamping technology and robust industrial construction,it delivers consistent dimensional accuracy,high repeatability and process reliability ideal for interior finishing,trim manufacturing,frame construction and industrial serial production

The finely adjustable feed control ensures uniform cutting movements with minimal vibration and reduces tear-out on visible edges. The result is consistently high cut quality regardless of profile cross-section,wood species or material density

Hydro-pneumatic feed for uniform cut quality in wood

The integrated hydro-pneumatic feed system enables a controlled,infinitely adjustable cutting movement. Constant feed pressure reduces vibrations,improves saw blade service life and keeps the cut edge consistently clean especially important for miter saw for wood trims,miter saw for skirting boards and precise angled cuts

Infinitely adjustable feed for different wood species

Whether soft trim timber or dense hardwoods the feed can be adjusted to suit the material. This produces clean cut patterns and repeatable quality in serial operation

Pneumatic clamping technology for stable workpiece positioning

The pneumatic clamping devices fix the workpiece vertically and horizontally. This keeps the wood profile stable even at high cutting speeds and with narrow cross-sections. The result is precise,angle-accurate cuts and clean miters ideal for miter saw for skirting boards and frame work such as miter saw for picture frames

Miter saw with stand for workshop,production and installation

The stand ensures secure stability,an ergonomic working height and a rigid base for long profiles. In combination with fence and supports,the machine becomes an efficient miter saw with stand for wood for workshops and serial production. For mobile applications,the stand solution can be designed so that it remains usable as a mobile miter saw for wood for installation work

Robust construction and maximum operational safety

The solid industrial construction ensures low-vibration smooth running and long service life even in continuous operation. A blade guard with dual spring mechanism and an emergency stop protect the operator during cutting. The adjustable cutting speed enables material-specific machining,protects the surface and reduces rework times

The machine is CE certified and complies with current European safety standards

Technical features

Power and cutting system

Saw blade diameter Ø 400 mm
Speed 3,000 rpm
Motor power 2.2 kW 3 HP
Cutting angle minus 45 degrees to plus 45 degrees with detent positions at 0 degrees,15 degrees,22.5 degrees,30 degrees,45 degrees

Feed system and clamping technology

Feed system hydro-pneumatic,infinitely adjustable
Clamping technology pneumatic,vertical and horizontal

Electrical data and pneumatics

Voltage frequency 400 V 50 Hz
Air pressure 6 to 8 bar
Air consumption 25 L min

Dimensions and weight

Machine dimensions L x W x H 1,200 x 1,230 x 1,500 mm
Weight 120 kg

Equipment

Standard equipment Ø 400 mm carbide-tipped saw blade for wood,stand,fence,blade guard,emergency stop
Options extraction connection,conveyor belt conveyor,single-phase motor,length stop,material supports

Product advantages

Consistent cut quality in serial production

Hydro-pneumatic feed for uniform cutting movements and clean cut edges

Stable fixation for precise angles and miters

Pneumatic clamping devices for vertical and horizontal fixation ideal for repeatable cut-to-length operations

Low-tear-out cut edges and less rework

Low-vibration operation and material-specific feed control for clean visible edges

Efficient and durable

Energy-efficient,low-maintenance drive,robust design for continuous operation

Safety to CE standard

CE certified according to European safety directives with protection systems for the operator

Typical applications

The EVOM II WOOD is the optimal solution for precise and efficient cut-to-length processes in woodworking

Trim and profile cutting

Cutting wood trims,skirting boards,decorative trims and wood profiles with consistently high quality

Frames and system cut-to-length

Precision cuts and miters on framing timber,picture frames and system trims

Serial production

Serial production of wood profiles in workshops and production lines with high repeatability

Interior finishing and installation

Professional cut-to-length for interior finishing,fit-out trades and installation applications

Conclusion

The automatic miter saw with stand for wood EVOM II WOOD with hydro-pneumatic feed stands for state-of-the-art cutting technology,high precision and industrial efficiency. It combines automatic feed control,safe clamping technology and robust construction into a durable,high-performance solution for professional woodworking. Whether trims,frames or wood profiles the EVOM II WOOD delivers low-tear-out cuts,precise miters and maximum productivity

EVOMATEC precision machines for machining wood profiles

Request technical consulting: info@evomatec.de
