PROFESSIONAL MITRE SAW EVOM II M

Mitre Saw with Vertical and Horizontal Clamps for Aluminium Profiles – Precision, Stability, and Efficiency with Every Cut

Industrial Standard for Accurate Aluminium Cutting

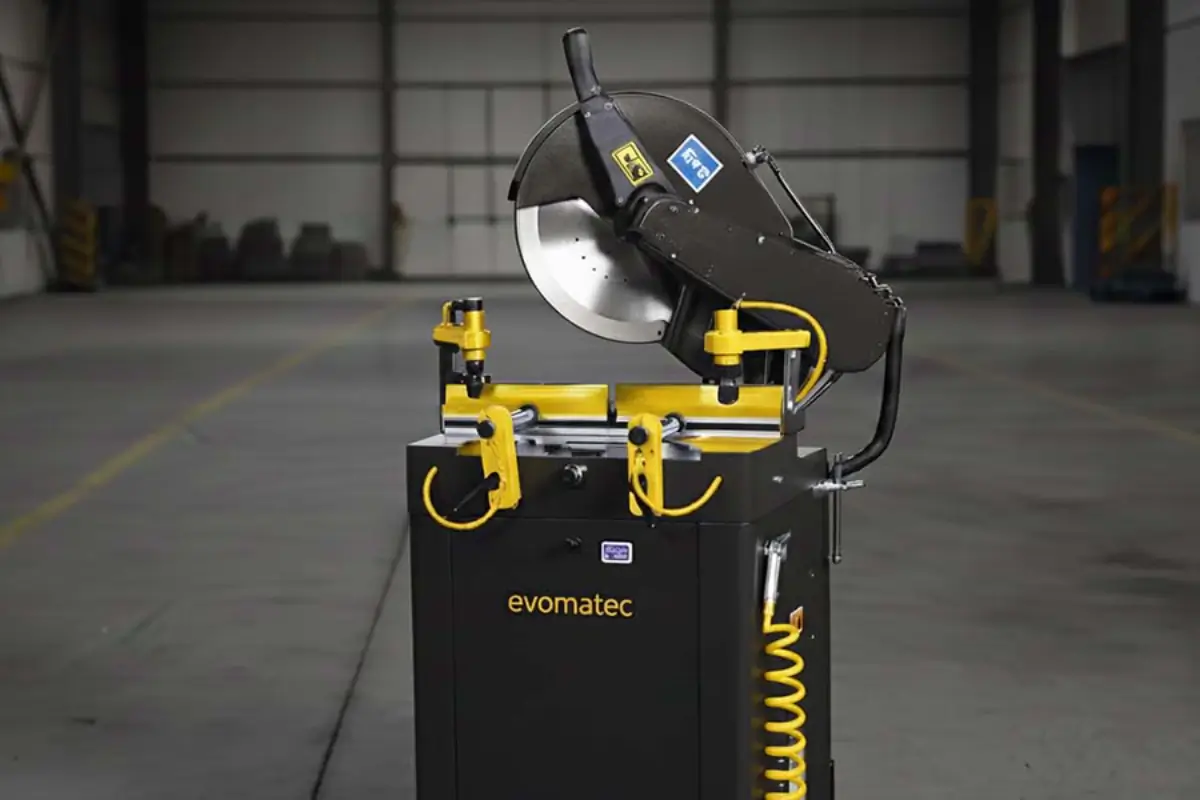

The EVOM II M is a high-performance industrial mitre saw designed for precise cutting of aluminium and aluminium profiles.
Its robust cast-iron construction, precision-guided mechanics, and dual pneumatic clamping system (vertical & horizontal) ensure burr-free and dimensionally stable cuts — even with thin-walled, anodized, or powder-coated profiles.
It is the perfect solution for window, door, and façade construction, as well as for workshops, production lines, and serial manufacturing.

Precision through Vertical and Horizontal Clamping Technology

The combined clamping system secures the workpiece simultaneously from above (vertically) and from the side (horizontally).
This provides full-surface stabilization of the profile, eliminating micro-vibrations and preventing positional deviations when the saw blade enters the material.

Vertical Clamps

Press the profile flat onto the worktable — preventing lifting or chatter during cutting.

Horizontal Clamps

Secure the profile tightly against the back fence — guaranteeing perfect right angles and stable mitre positions.

Surface Protection

Pressure distribution and soft clamping surfaces prevent marks or deformations — ideal for anodized or powder-coated profiles.

Result

Uniform cut surfaces, reproducible accuracy, and minimal post-processing — delivering measurable advantages in industrial serial production.

Precise Cutting of Aluminium Profiles

The saw enables mitre and angle cuts from −45° to +45°, with detent points at 0°, 15°, 22.5°, 30°, and 45° for quick and repeatable adjustments.
A carbide or optional diamond-tipped saw blade operating at high cutting speeds ensures clean, burr-free edges without material distortion.
The precisely mounted saw axis and low-vibration mechanical system provide smooth, stable cutting — even for long or complex profiles.

Efficient Operation with Safety and Comfort

The ergonomic control panel, enclosed protective hood with dual spring mechanism, and emergency stop function come as standard.
An optional cooling system reduces friction and heat, protects the workpiece, and extends saw blade life.
The combination of advanced clamping technology, cooling, and precision drive ensures consistently excellent cutting results in continuous use.

Technical Specifications

Core Parameters

Saw Blade Diameter: Ø 400 mm
Spindle Speed: 3,000 rpm
Motor Power: 2.2 kW (3 HP)
Clamping System: pneumatic, vertical & horizontal

Power and Air Requirements

Voltage/Frequency: 400 V / 50 Hz
Air Pressure: 6–8 bar
Air Consumption: 15 L/min

Dimensions and Design

Machine Dimensions (L×W×H): 710 × 870 × 1,565 mm
Weight: 95 kg
Options: cooling system, conveyor belt, single-phase operation

Product Advantages

Precision and Performance

Dual clamping technology for maximum stability and repeat accuracy
Low-vibration cast structure for burr-free, smooth cutting surfaces

Design and Safety

Accurate angle adjustment from −45° to +45° with fixed positions
CE-certified according to European safety standards
Compact, industrial design ideal for workshops and production lines

Efficiency and Durability

Low-maintenance, long-life components
Optional cooling system for extended tool life
Energy-efficient design with low air consumption

Typical Applications

Cutting aluminium profiles for windows, doors, and façades
Mitre cutting of frame and system profiles
Serial production of aluminium window and door components
Aluminium extrusion cutting in continuous production lines
Industrial profile cutting for large-scale fabrication

The EVOM II M is universally suitable for straight, angled, and mitre cuts across a wide range of profile geometries.

Conclusion

The EVOM II M represents precision, stability, and efficiency in professional aluminium cutting.
It combines state-of-the-art clamping technology, high-performance cutting mechanics, and energy-efficient control in a compact, industrial-grade machine.
Whether used in window, door, or façade production, this mitre saw delivers perfect cutting quality, maximum repeat accuracy, and long-term reliability.
