Copy Router for Plastic Profiles EVOG III – Precision and Control in Manual Profile Machining
Manual Accuracy for PVC and Plastic Profiles
Precision Hand Control for PVC and Plastic Profiles

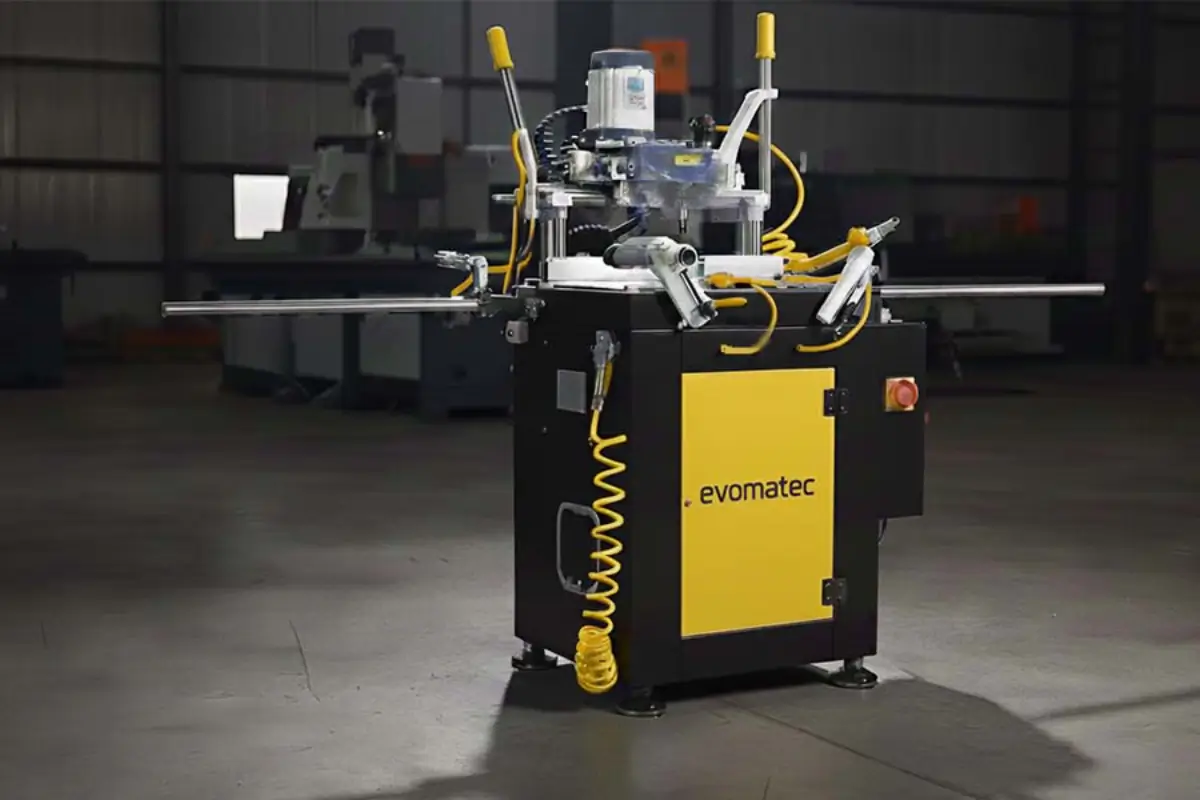

The EVOG III copy router for plastic profiles from Evomatec is a professional milling machine designed for manual milling, drilling, and slotting of PVC and uPVC profiles in modern window and door manufacturing.
It combines hand-guided precision with industrial stability, offering the ideal solution for companies that demand the highest quality in handle openings, lock holes, hardware drillings, and drainage slots.
With its integrated olive drilling system and water slot milling unit, the EVOG III enables the efficient creation of all essential openings in window and door frame profiles – with precision, cleanliness, and burr-free results.
Manual Precision with Template Guidance
The EVOG III operates on the proven template-guided system.
The operator manually guides the tool along a pattern to produce drillings and milling operations exactly according to the template.
This method ensures maximum flexibility and allows the machining of various profile geometries – ideal for PVC profiles with custom shapes or special designs.
Thanks to its robust machine base, the EVOG III maintains vibration-free stability even under intensive use, guaranteeing smooth and consistent surface quality.
The precise guiding system transfers every hand movement directly and without play – a crucial advantage for accurate, repeatable results in professional applications.
Efficient Profile Processing with Olive Drilling and Water Slot Milling
The integrated olive drilling function (Triple-Grip system) enables simultaneous drilling of multiple holes – ideal for handle holes, lock housings, and hinge recesses.
Additionally, the water slot milling unit provides precise drainage slots with adjustable length and angle, as required in modern PVC window systems.
This combination of milling and drilling systems saves valuable working time and significantly increases productivity, especially in series production of PVC window profiles.
Technical Specifications of the EVOG III
-
Milling Motor Power: 1.1 kW (1.5 HP)
-
Milling Spindle Speed: 3000 rpm
-
Drilling Motor Power: 0.55 kW (0.75 HP), 1400 rpm
-
Cutter Diameter: 5 mm (standard), optional 8 mm
-
Working Range (X/Y/Z): 250 × 110 × 115 mm
-
Air Pressure: 6–8 bar | Air Consumption: 8 L/min
-
Voltage / Frequency: 400 V / 50 Hz
-
Dimensions: 2525 × 1000 × 1465 mm
-
Weight: 145 kg
-
Safety Equipment: Pneumatic clamping system, CE-certified
-
Cooling System: Optional integrated
Advantages of the EVOG III Copy Router for Plastic Profiles
-
Ultimate Precision with Manual Control
The manual operation provides complete control over feed rate, speed, and milling depth – ideal for special profiles, small batches, and custom window or door manufacturing. -
Olive Drilling System and Water Slot Milling in One Machine
The Triple-Grip drilling system allows olive holes, handle slots, and lock openings to be executed simultaneously and accurately.
The integrated water slot milling system produces clean, repeatable drainage slots – essential for modern PVC window systems. -
Robust Design for Repeatable Accuracy
The heavy-duty cast-iron structure ensures vibration-free operation, extending tool life and maintaining dimensional consistency even during long production cycles. -
Energy Efficiency and Low Maintenance
With only 8 L/min air consumption and a low-maintenance pneumatic system, the EVOG III operates economically, reliably, and with minimal running costs. -
Maximum Flexibility in Profile Machining
Whether milling handle holes, lock openings, drainage slots, or drilling for fittings, the machine covers all essential steps in professional PVC profile processing.
Applications of the EVOG III in the Construction Industry
The manual EVOG III copy router is the ideal solution for workshops and manufacturers seeking precise and flexible machining of PVC and plastic profiles, including window frames, door systems, and façade components.
Typical Applications:
-
Window Manufacturing: Milling lock openings, handle holes, drainage slots, and olive holes
-
Door Production: Milling hinge recesses, locking mechanisms, and hardware openings
-
Façade Construction: Cutting connection points and fastening holes in plastic or composite profiles
-
Plastic Processing: Precision machining of custom and technical plastic components
Craftsmanship Meets Industrial Reliability
The EVOG III unites the precision of manual machining with the durability of industrial engineering.
Its ergonomic design allows for comfortable operation, while the pneumatic clamping system guarantees maximum safety and stability during every milling process.
Thanks to its compact design, the machine can be used in workshops as well as production environments – ideal wherever precision, versatility, and reliability are required.
Future-Oriented Profile Processing with Evomatec
With the EVOG III, Evomatec delivers a modern copy router that blends traditional manual craftsmanship with industrial performance.
It is ideal for companies seeking to enhance PVC profile production while maintaining flexibility for custom manufacturing requirements.
The EVOG III stands for German engineering quality, robust mechanics, and forward-thinking efficiency in plastic profile machining.
Conclusion – Precision, Control, and Efficiency Combined
The EVOG III copy router for plastic profiles is the perfect choice for precise milling, drilling, and slotting in window, door, and façade manufacturing.
It excels through its olive drilling function, water slot milling system, and template-guided precision, delivering accurate results even on complex profile geometries.
Whether milling handle holes, lock openings, drainage slots, or drilling for fittings in PVC plastic profiles – the EVOG III guarantees top precision, clean edges, and repeatable accuracy in every application.
