Automatic Water Slot Milling Machine for PVC Plastic Profiles EVOG O – Precision and Productivity in Perfection



Fully Automatic Profile Processing for Window and Door Construction

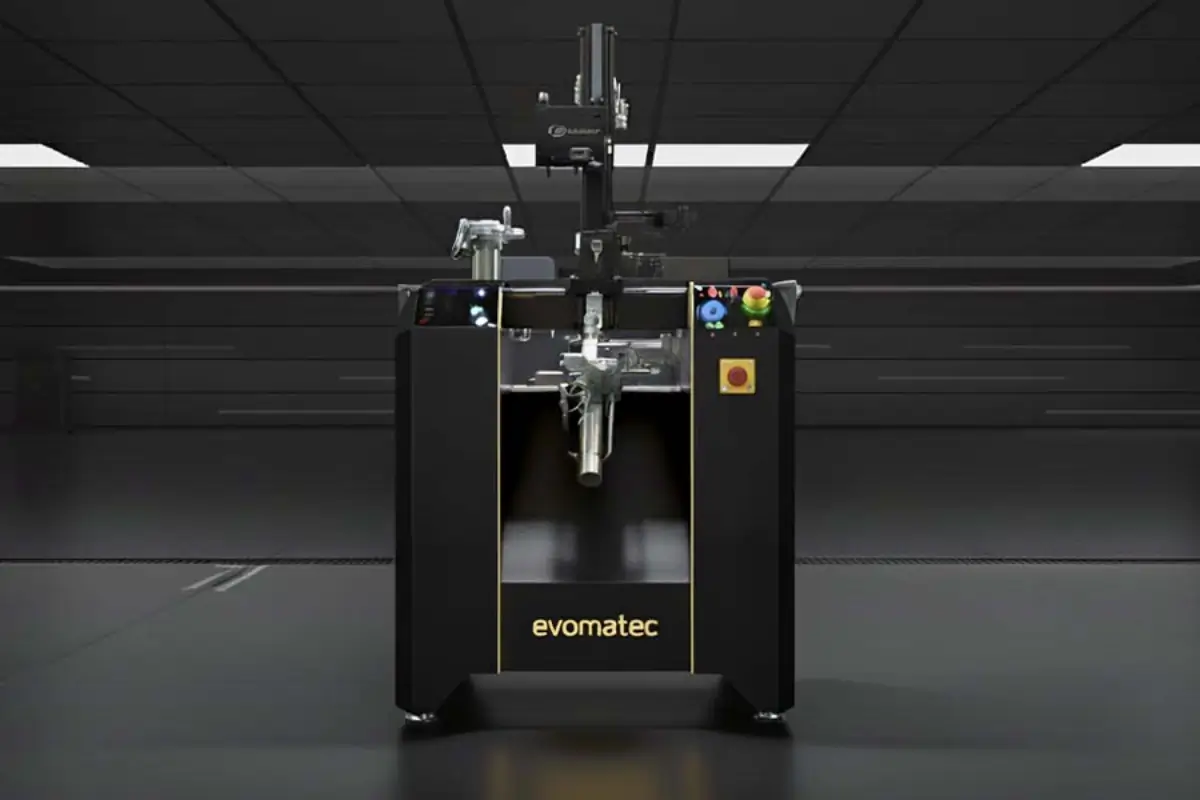

The Automatic Water Slot Milling Machine EVOG O from Evomatec is a high-performance and precise industrial milling machine for the processing of PVC and plastic profiles. It was specially developed for window, door, and facade construction to mill drainage slots quickly, accurately, and automatically. With three independent high-frequency spindle motors and an intelligent pneumatic control system, the EVOG O processes profiles simultaneously from the top, bottom, and rear—precise, efficient, and with high repetition accuracy. Thanks to this simultaneous processing technology, the machine significantly reduces production time while guaranteeing the highest cutting quality, dimensional accuracy, and durability—a decisive advantage for industrial series production in modern window manufacturing.


Advanced 3-Axis Milling Technology


The EVOG O uses an automated 3-axis system that controls each milling unit individually. Each motor operates at up to 18,000 RPM and can be programmed separately for different machining angles, depths, and lengths. This allows drainage slots of different geometries to be produced in a single working cycle. The pneumatic movement unit ensures smooth feed rates, while the automatic clamping system securely fixes the profiles during milling—vibration-free and gentle on the material.


Technological Highlights


  • Simultaneous milling on three surfaces (top, bottom, rear)

  • Individually programmable milling depths and angles

  • Three high-frequency motors for precise, clean cut edges

  • Automatic clamping device with safety shut-off

  • Pneumatic feed with digital control

  • Integrated cooling system for optimal tool service life


Technical Specifications of the EVOG O


  • Motor Power: 3 × 0.55 kW (0.75 HP)

  • Speed: 18,000 RPM per motor

  • Voltage/Frequency: 230 V / 50–60 Hz

  • Milling Bit Diameter: 5 mm (Standard), optional 8 mm

  • Working Range: 40–180 mm, variably adjustable

  • Air Pressure: 6–8 bar | Air Consumption: 10 L/min

  • Machine Dimensions: 935 × 755 × 1600 mm

  • Weight: 235 kg

  • Safety Equipment: CE-compliant pneumatic clamping technology

  • Options: Automatic conveyor belt for series production


Precise Milling Results for Durable PVC Systems


The EVOG O enables the exact milling of drainage slots in PVC window frames and sashes, ensuring optimal water drainage and sealing of the windows. This not only saves time but also increases repetition accuracy and reduces scrap to a minimum. Thanks to its intelligent control system, the machine is ideal for automated production lines and can be easily integrated into existing production systems.


Advantages of the Automatic Water Slot Milling Machine EVOG O



1. Triple-Milling Technology for Maximum Efficiency


With three simultaneously operating milling motors, drainage slots and drill holes are completed in just one pass—fast, clean, and burr-free.


2. Fully Automatic Process Control


The pneumatic feed system with digital control ensures constantly smooth cutting movements, regardless of profile shape or material thickness.


3. Flexibility for Various Profile Types


Thanks to individually adjustable milling angles, depths, and lengths, the EVOG O is suitable for PVC window profiles, door frames, and facade elements.


4. Safety and Operating Comfort


The automatic clamping system prevents unwanted movement of the profile, while the safety control system ensures CE-compliant working conditions.


5. Energy Efficiency and Maintenance-Free Operation


The EVOG O operates with energy-saving high-frequency motors, low-maintenance components, and a durable machine design—ideal for continuous operation.


Typical Applications


  • Window Construction: Milling of drainage slots, handle and lock openings

  • Door Construction: Processing of locking zones and hardware drilling

  • Facade Construction: Production of fastening slots and water drains

  • PVC Processing: Automated profile machining for frames and sashes


Complementary Machines in the Production Process


For companies in window and door construction, Evomatec offers a complete machine portfolio—from miter saws for plastic profiles and copy routers with handle hole drilling to automatic welding and corner cleaning lines. The combination of these systems with the EVOG O enables end-to-end automated manufacturing with maximum precision and productivity.


Industrial Reliability and Future-Proofing


The EVOG O is designed to meet the increasing demands of modern production environments. This makes it a long-term profitable investment for companies that rely on quality, efficiency, and technological innovation.


Conclusion – Automated Precision for the Highest Demands


The Automatic Water Slot Milling Machine EVOG O from Evomatec stands for industrial precision, efficiency, and digital process reliability in the processing of PVC and plastic profiles. With its three high-frequency motors, automatic control system, and robust construction, it delivers precise and clean results with minimal time expenditure. When milling drainage slots, the EVOG O offers maximum productivity and perfect cutting quality for modern window manufacturing.

Contact our team for a free consultation: Click here
