AUTOMATIC DOUBLE MITRE SAW FOR ALUMINIUM PROFILES EVOG X

‹ ›

AUTOMATIC DOUBLE MITRE SAW FOR ALUMINIUM PROFILES – EVOG X

Servo-Controlled Precision, Industrial Performance and Cutting Lengths up to 6000 mm

Ultimate Precision and Productivity for Large Aluminium Profiles

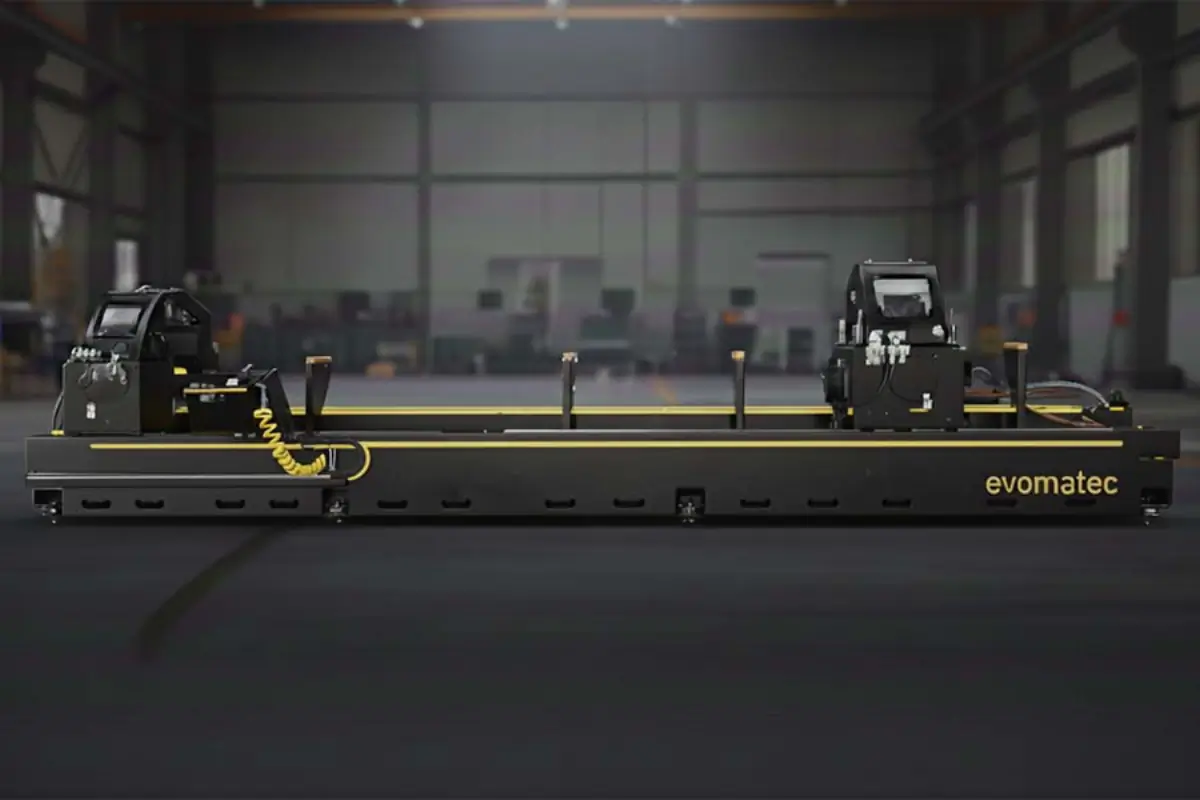

The EVOG X Automatic Double Mitre Saw for aluminium profiles by EVOMATEC represents the pinnacle of technological performance, precision, and efficiency in modern aluminium profile processing.
Equipped with 3-axis servo control, fully automatic head positioning, and Ø 550 mm carbide-tipped saw blades, it delivers precise, burr-free, and repeatable cuts — even for profiles up to 6000 mm in length.

The EVOG X is specifically designed for window, door, and façade manufacturers who demand the highest levels of cutting accuracy, angular precision, and industrial speed.
With its robust mechanical design, intelligent CNC control, and energy-efficient hydropneumatic system, it guarantees vibration-free and angle-true cuts with maximum production output.

Servo Technology for Fully Automated Precision

3-Axis Servo Control for Digital Accuracy

The EVOG X Double Mitre Saw uses servo-driven 3-axis technology, enabling automatic head positioning and precise angle adjustment between 30° and 90°.
Its hydropneumatic feed control ensures a smooth, consistent cutting motion — ideal for delicate or large aluminium profiles.

This combination of digital precision and mechanical stability makes the EVOG X perfect for demanding serial production, where repeatability and superior cut quality are essential.

Technical Specifications of the EVOG X Double Mitre Saw

Standard Equipment

• Two Ø 550 mm carbide-tipped saw blades (HM)

• Servo-driven rotation axes on both heads

• Automatic angle positioning (30°–90°)

• Vertical and horizontal pneumatic clamping units

• Hydropneumatic feed system for precision cutting motion

• Spray cooling system for profile cooling and chip reduction

• Roller table on movable head for long profiles

• Digital control of feed and cutting speed

• 10″ touchscreen control panel with intuitive interface

• Ethernet and USB connections for data transfer

• Enclosed safety covers and CE-certified protection systems

• Compatible with aluminium chip extraction and cleaning systems

Optional Equipment

• EVOSOFT Cutting Optimisation System – minimises material waste and manages cutting sequences efficiently

• Barcode Printer – for production traceability and batch management

• Additional Support Arms – for extra-long or heavy profiles

• Automatic Chip Extraction and Cleaning Unit – for cleaner, safer operation

• Cut Data Import – via Ethernet or USB connection

Advantages of the EVOG X Double Mitre Saw

1. Maximum Precision Through Servo Control

Dual servo-driven heads ensure millimetre-accurate cutting even with large cross-sections or custom geometries.

2. Extended Cutting Capacity up to 6000 mm

Ideal for long façade profiles, door frames, and aluminium beams, offering absolute repeatability and cutting stability.

3. Heavy-Duty Construction for Continuous Industrial Use

The solid machine base absorbs vibration, while the hydropneumatic feed system ensures burr-free and clean cuts for industrial-scale production.

4. Productivity Through Automation

Servo technology and the EVOSOFT optimisation system significantly reduce setup times, minimise scrap, and increase throughput.

5. Energy Efficiency and Certified Safety

Optimised motor control, automatic cooling, and CE-certified safety systems guarantee energy-saving and operator-safe operation.

Application Areas of the EVOG X

The EVOG X Automatic Double Mitre Saw for aluminium profiles is perfectly suited for a variety of professional applications:

• Window production: precise cutting of frame and sash profiles

• Door manufacturing: accurate mitre cuts for aluminium door frames

• Façade construction: processing of large architectural profiles

• Industrial series production: consistent quality in high-volume operations

• Metal and special structures: variable angles and large cross-sections

With its servo-driven control, digital angle positioning, and extended cutting capacity, the EVOG X is the ideal solution for industrial aluminium manufacturing requiring high throughput and reliability.

Quality, Safety and CE Compliance

Each EVOG X is manufactured, inspected, and certified in accordance with strict European standards.
Evomatec guarantees:

• Precision calibration of all servo axes

• Vibration and cutting accuracy testing

• Electrical and mechanical safety inspection according to EN 60204-1

• Final CE certification prior to delivery

Evomatec stands for quality, precision, and safety, built to German industrial standards for maximum durability and operational reliability.

Efficiency and Investment Security

The EVOG X is engineered for maximum economic performance.
With its servo control system, hydropneumatic automation, and EVOSOFT optimisation, it reduces cycle times, minimises material waste, and lowers energy costs.

Key advantages:

• Shorter processing cycles

• Reduced manpower requirements

• Minimal offcuts and waste

• Energy-efficient operation

• Durable and low-maintenance design

With professional training, remote support, and fast spare parts availability, Evomatec ensures long-term productivity and machine uptime.

Conclusion – Precision, Power and Efficiency at the Highest Level

The EVOG X Automatic Double Mitre Saw defines a new class of industrial aluminium profile cutting.
With servo-controlled precision, cutting lengths up to 6000 mm, robust mechanics, and digital automation, it combines maximum performance, reliability, and energy efficiency.

For manufacturers seeking precise, safe, and cost-effective cutting solutions in aluminium fabrication, the EVOG X is the ultimate professional choice — a masterpiece of engineering by EVOMATEC.
