AUTOMATIC DOUBLE MITRE SAW FOR ALUMINIUM PROFILES EVOG VSA

‹ ›

AUTOMATIC DOUBLE MITRE SAW FOR ALUMINIUM PROFILES – EVOG VSA

Maximum Precision, Industrial Performance and Flexible CNC Control for Aluminium Profiles

Precise Mitre Cuts for Advanced Aluminium Profile Processing

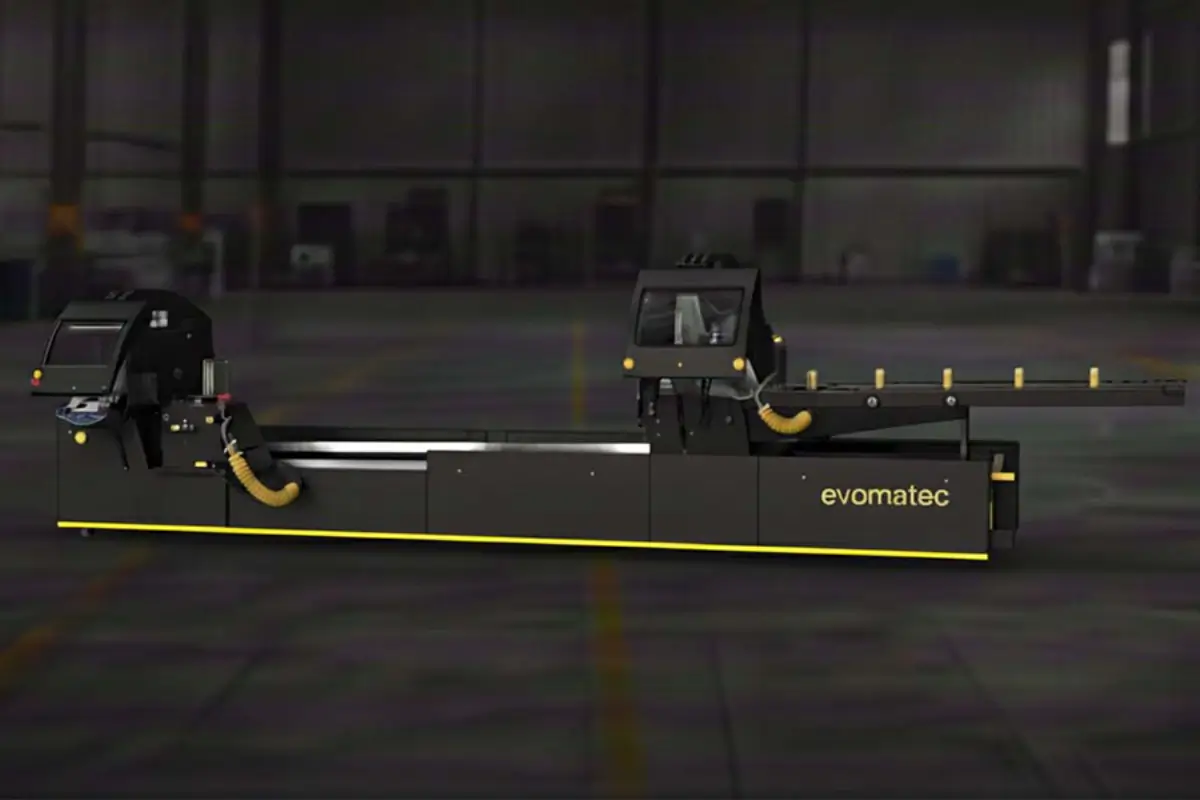

The EVOG VSA Automatic Double Mitre Saw for aluminium profiles by EVOMATEC is specifically designed for high-precision mitre cutting of aluminium profiles.
Equipped with Ø 550 mm carbide-tipped blades, servo-assisted positioning, and hydro-pneumatic angle adjustment, it ensures exceptional accuracy, repeatability, and efficiency — ideal for the industrial production of aluminium windows, doors, and façade components.

The EVOG VSA combines robust mechanics, modern CNC control technology, and energy-efficient drive systems. It is engineered to handle large profile cross-sections, variable angles, and long cutting lengths with maximum stability and speed — perfect for serial and precision aluminium cutting in continuous operation.

Hydro-Pneumatic Precision and Servo-Controlled Positioning

High-Accuracy Performance for Complex Aluminium Profiles

The EVOG VSA Double Mitre Saw features a hydro-pneumatic positioning system that enables precise, repeatable angle adjustments between –22.5°, –45°, 90°, and +45°.
Intermediate angles can be set manually, while servo-controlled head positioning ensures fast and exact length adjustment.

This combination of digital control and hydraulic precision guarantees burr-free, dimensionally consistent, and angle-stable cuts, regardless of material thickness or profile geometry.

Technical Specifications of the EVOG VSA Double Mitre Saw

Standard Equipment

• Two Ø 550 mm carbide-tipped saw blades (HM)

• Pneumatic clamping cylinders (horizontal & vertical)

• Hydro-pneumatic feed control for smooth cutting motion

• Roller conveyor with movable head for long profiles

• Adjustable spray cooling system

• Digital angle display

• Fully enclosed safety guards around cutting area

• CE-certified safety components

Optional Equipment

• Barcode printer for cutting optimisation and batch management

• Cutting optimisation software (EVOSOFT) with Ethernet/USB data import

• Digital head position display for additional precision

• Automatic cutting optimisation for material savings

• Chip extraction system for cleaner operation and longer tool life

Advantages of the EVOG VSA Automatic Double Mitre Saw

1. Maximum Precision and Repeatability

Servo-assisted head positioning and hydro-pneumatic angle adjustment enable exact mitre cuts with tolerances under 0.2 mm — perfect for complex aluminium profiles.

2. Large Cutting Capacity

With a maximum cutting length of 5,050 mm and an angle range up to –22.5°, the EVOG VSA is ideal for large aluminium frames and façade elements.

3. Industrial Strength and Stability

The cast-steel frame minimises vibration, increases longevity, and ensures precise cutting even under heavy-duty industrial conditions.

4. Energy Efficiency and CE Certification

Optimised motor control reduces power consumption, while the CE-certified safety system guarantees full compliance and operator protection.

5. Low Maintenance and Long Service Life

High-quality hydraulic and mechanical components provide long-term reliability, minimal maintenance, and consistent cutting accuracy.

6. Intuitive Control

The digital interface, servo-controlled axis, and logical user interface ensure easy operation, short setup times, and efficient serial production.

Application Areas of the EVOG VSA Double Mitre Saw

The EVOG VSA Automatic Double Mitre Saw for aluminium profiles is suitable for a wide range of industrial applications:

• Window production: precise cutting of frame and sash profiles

• Door manufacturing: accurate mitre cuts for aluminium door frames

• Façade construction: large-scale structural and connection profiles

• General profile processing: aluminium, PVC, and light metals

• Custom construction: variable angle cuts and extended profile lengths

Thanks to its flexibility, the machine is ideal for one-off production, small batch fabrication, and high-volume industrial manufacturing alike.

Quality, Safety and CE Compliance

Each EVOG VSA Double Mitre Saw is manufactured and tested according to strict European quality standards.
Evomatec guarantees:

• Accurate calibration of head positioning

• Vibration-free cutting motion

• Full electrical and hydraulic safety inspection

• CE-certified delivery under EU Machineryective 2006/42/EC

• 100% final testing before shipment

This commitment ensures long-term precision, maximum reliability, and industrial-grade safety in every operation.

Efficiency and Investment Security

The EVOG VSA Double Mitre Saw offers an outstanding balance of productivity, cost-efficiency, and energy savings.
Through automatic positioning, servo-controlled angle adjustment, and optimised cutting control, it shortens production cycles, reduces waste, and lowers operating costs.

Economic benefits include:

• Shorter cycle times via automatic angle control

• Reduced labour requirements through intuitive operation

• Minimal material loss thanks to intelligent optimisation

• Energy-efficient operation with modern motor control

• Long service life and minimal maintenance requirements

Evomatec also provides technical support, remote maintenance, spare parts, and operator training to ensure long-term operational success.

Conclusion – Precision, Performance and Flexibility Perfected

The EVOG VSA Automatic Double Head Cutting Machine for aluminium profiles combines servo technology, hydro-pneumatic control, and industrial-grade durability in one powerful system.
It offers precise cutting, long cutting lengths, easy operation, and CE-certified safety, making it the perfect solution for modern aluminium production.

With its blend of precision, speed, and cost-efficiency, the EVOG VSA is the ideal choice for manufacturers seeking efficient, reliable, and long-lasting cutting solutions.

EVOMATEC – Machines for Precise Aluminium Profile Processing
