Precision, Stability and Industrial Efficiency in Mitre Cutting

Exact Mitre Cuts for Aluminium Profiles in Industrial Application

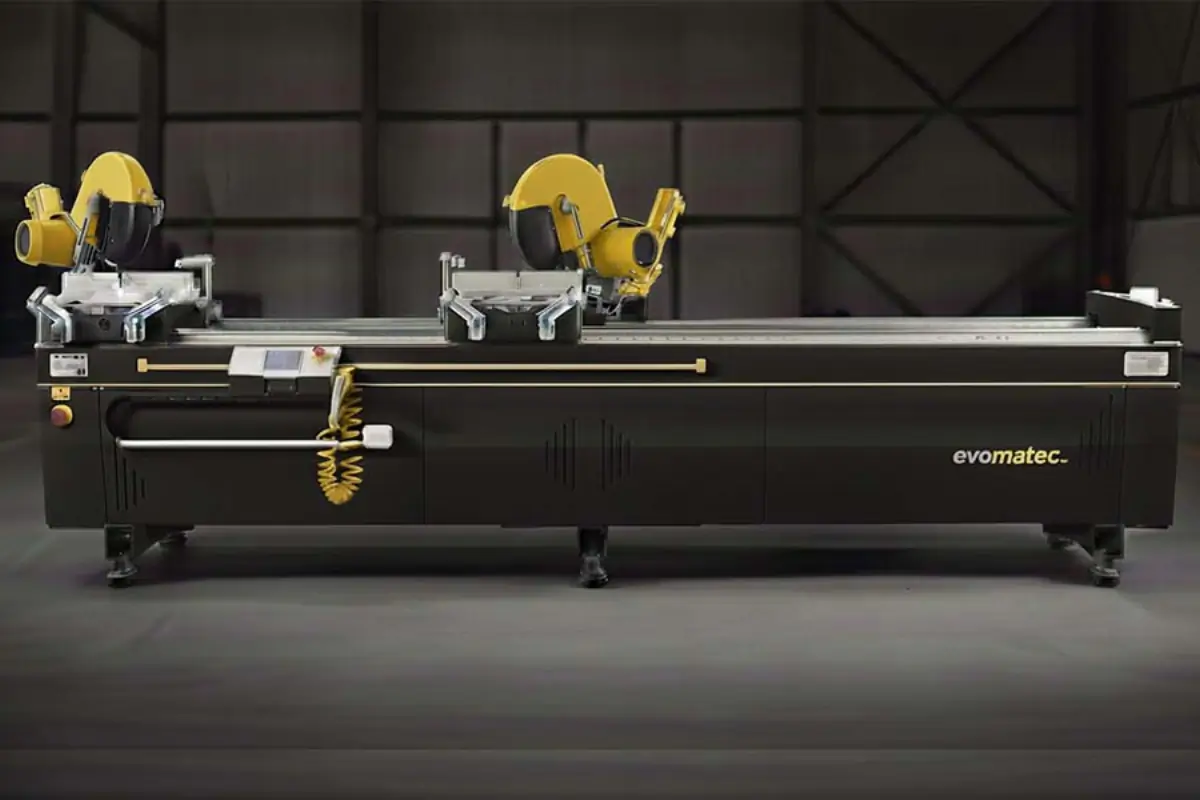

The EVOG IIA double-mitre saw is a high-performance machine designed for precise angle cuts of aluminium profiles. Featuring two robust saw heads, hydro-pneumatic feed technology and CE-certified safety systems, it delivers burr-free, repeatable cutting quality for use in the window, door and façade construction industries.

With dual synchronized saw heads and Ø 400 mm carbide saw-blades, the EVOG IIA provides maximum cut quality and consistent accuracy — ideal for professional users who demand reliability and cost-efficiency.

Technology for Precise Mitre Cuts

The EVOG IIA double-mitre saw operates with two synchronized cutting heads, which can be manually adjusted between +45° and –45°. This configuration allows exact angle cuts at the ends of aluminium profiles — clean, precise and vibration-free.

Combined with a hydro-pneumatic feed system, a rigid machine base and precise guiding technology, the EVOG IIA ensures consistently high cut quality — even for demanding profile geometries or serial production.

Technical Specifications of the EVOG IIA Double-Mitre Saw

Standard Equipment

• Two stable, manually adjustable saw heads

• Vertical and horizontal pneumatic clamps

• Intermediate support for long aluminium profiles

• Spray cooling system for tool protection and burr minimisation

• Precise scales and guide systems for repeat cuts

• High-quality carbide saw blades with long service life

Advantages of the EVOG IIA Double-Mitre Saw

Precision in Every Cutting Position

Manual angle adjustment from +45° to –45° enables precise, repeatable cuts for a wide range of profile geometries — ideal for frame and sash elements.

Synchronized Dual Saw Heads

Two saw heads operate simultaneously to deliver clean mitre cuts in one step — perfect for high productivity in series production.

Vibration-Free Machine Base

The massive steel construction provides maximum stability, reduces vibration and ensures perfect surface quality.

Hydro-Pneumatic Feed Control

The system guides the saw blade smoothly and consistently through the material — for controlled cuts and longer tool life.

CE-Certified Safety

Protective guards, pneumatic clamping and safety interlocks meet current EU safety standards for industrial equipment.

Low Maintenance & Long Service Life

Accessible design, robust components and low-wear assemblies reduce maintenance needs to a minimum.

Energy Efficiency

Optimised hydraulic and pneumatic systems guarantee economical energy use while delivering peak performance.

Typical Use Cases of the EVOG IIA Double-Mitre Saw

• Window manufacturing: precise cutting of frame and sash profiles

• Door production: exact mitres for door frames and jambs

• Façade construction: millimetre-accurate processing of profile connections

• Metal fabrication: universally suitable for aluminium and light-metal profiles

• PVC and timber profiles: thanks to adjustable speed, also suitable for other materials

The machine is ideal for workshops, production lines and industrial facilities seeking precise, economical and safe mitre cutting.

Operation – Precise Cuts with Manual Flexibility

1. Profile positioning: The aluminium profile is placed between the two saw heads and pneumatically clamped.

2. Angle setting: Both heads are manually set between +45° and –45°.

3. Cutting process: The hydro-pneumatic feed system guides the saw blade smoothly through the profile — vibration-free and controlled.

4. Result: Burr-free, exact mitre cuts with highest dimensional accuracy.

Thanks to the precise scales and stable linear guides, the EVOG IIA offers reproducible cutting results even under high utilisation and serial production.

Quality, Safety and CE-Compliance

The EVOG IIA double-mitre saw is built to European CE safety regulations and is fully tested, calibrated and documented prior to delivery.
Evomatec uses only premium components for guiding, clamping and drive systems.
This manufacturing quality ensures long-term reliability, safe operation and minimal maintenance in daily production use.

Cost-Effectiveness and Investment Security

With its manual flexibility, robust construction and hydro-pneumatic precision, the EVOG IIA delivers excellent value for money.
It offers fast changeovers, precise serial production and reduced operating costs through durable components.

Evomatec also provides:

• Technical training for optimal operation

• Fast spare-parts service

• CE-compliant maintenance support – for maximum machine availability and lifetime.

Conclusion – Precision, Stability and Cost-Effectiveness Combined

The EVOG IIA double-mitre saw is the perfect solution for precise, repeatable mitre cuts in aluminium profile processing.
With manual angle adjustment, hydro-pneumatic feed control and robust machine structure, it combines flexibility, efficiency and safety at the highest level.

Whether in window, door or façade manufacture – the EVOG IIA guarantees exact cuts, long service life and cost-efficient operation for professional users.
