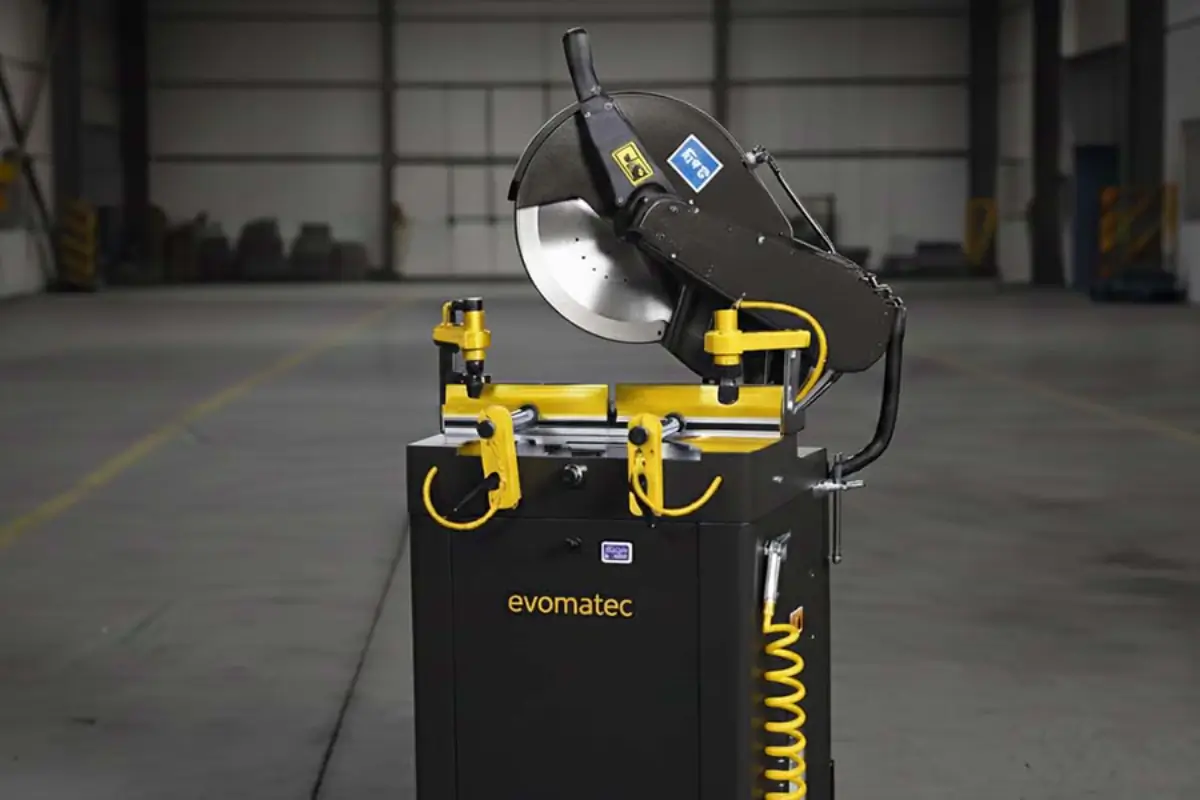

PROFESSIONAL MITRE SAW WITH STAND FOR WOOD PROFILES EVOM II M WOOD

‹ ›

PROFESSIONAL MITER SAW WITH STAND FOR WOOD PROFILES EVOM II M WOOD

Miter saw with vertical and horizontal clamps for wood profiles,wood trims and framing timber for precise miters,clean cut edges and efficient serial cut-to-length operations

Industrial standard for accurate wood cut-to-length

The EVOM II M WOOD is a robust industrial machine for precise cutting of wood and wood profiles. The rigid cast construction,precise guide systems and the dual clamping system ensure clean,low-tear-out and angle-stable cuts even on sensitive visible surfaces,coated trims or dimensionally stable profile timber. Ideal for interior finishing,furniture production,stair building,trim manufacturing and frame production in workshop,installation and serial operation

Precision through vertical and horizontal clamps

The combined clamping system fixes the workpiece simultaneously from above and from the side. This stabilizes the wood profile,reduces vibrations and prevents position deviations when the saw blade plunges. For users looking for a miter saw with stand for wood for repeatable cut-to-length operations,the dual clamping system is a clear advantage

Vertical clamps for flat-seated workpieces

The vertical clamps press the workpiece flat onto the work table. This prevents lifting,chatter and uneven cut patterns on long trims or narrow profiles. Especially in miter saw for wood trims applications,this significantly increases cut quality

Horizontal clamps for perfect fence reference

The horizontal clamps push the workpiece positively against the fence. This produces precise 90 degree cuts and angle-stable miters even in serial cutting. This is ideal for miter saw for skirting boards as well as frame work such as miter saw for picture frames

Surface protection for visible trims and coated profiles

Gentle clamping faces and uniform pressure distribution prevent marks. This is especially important for painted,foiled or sensitive visible surfaces in interior finishing

Miter saw with stand for workshop and installation

The stand provides a stable,ergonomic working height and a secure stance even with long workpieces. In combination with supports and stops,the machine becomes an efficient miter saw with stand for wood for daily workshop operation and precise installation cut-to-length

Precise cutting and miter cuts for wood profiles

The saw is designed for angle and miter cuts from minus 45 degrees to plus 45 degrees. Detent positions at 0 degrees,15 degrees,22.5 degrees,30 degrees and 45 degrees enable fast and repeatable angle changes. A suitable carbide-tipped saw blade for wood ensures clean cut edges and minimizes tear-out on trims,profiles and framing timber. The precisely supported saw axis and low-vibration mechanics deliver smooth cuts even on long or complex profiles

Efficient work with safety and comfort

An ergonomic control panel,a closed blade guard with dual spring mechanism and an emergency stop are part of the standard equipment. Optional extraction connection and practical infeed and stop systems support clean,efficient production. This makes the machine ideal for miter saw for skirting boards,for repeatable frame cut-to-length and for serial operation with sliding miter saw for wood profiles requirements

Technical data of the EVOM II M WOOD

Power and cutting system

Saw blade diameter Ø 400 mm
Speed 3,000 rpm
Motor power 2.2 kW (3 HP)
Angle range minus 45 degrees to plus 45 degrees with detents 0 degrees,15 degrees,22.5 degrees,30 degrees,45 degrees

Clamping technology and supply

Clamping system pneumatic,vertical and horizontal
Voltage frequency 400 V 50 Hz
Air pressure 6 to 8 bar
Air consumption 15 L min

Dimensions and weight

Machine dimensions L W H 710 x 870 x 1,565 mm
Weight 95 kg

Options for workshop and serial production

Stand,extraction connection,stop system,length stop,conveyor belt conveyor,single-phase operation

Product advantages for wood users

The EVOM II M WOOD offers practical advantages for workshops and serial manufacturers looking for a reliable miter saw with stand for wood

Maximum fixation and repeatability

Dual clamping technology for stable workpiece position and repeatable dimensions even on long trims and profile timber

Clean cut surfaces with less rework

Low-vibration cast construction for low-tear-out cut edges and consistent quality in continuous operation

Fast angle changes for miters

Precise angle adjustment minus 45 to plus 45 degrees with detents for efficient workflows and serial cutting

CE safety and long-life components

CE certified according to European safety standards,low maintenance and designed for long service life

Typical applications

Interior finishing and installation

Cutting skirting boards,decorative trims and profiles directly at the workplace with mobile miter saw for wood workflow

Frame and trim manufacturing

Miter cuts on framing timber,picture frames and system trims with high angle stability

Serial production of wood profiles

Repeatable cut-to-length in workshop and production operation for sliding miter saw for wood profiles applications

Conclusion

The EVOM II M WOOD stands for precision,stability and efficiency in cutting wood and wood profiles. As a miter saw with stand for wood it combines safe clamping technology,smooth cutting mechanics and ergonomic working for perfect cut quality,high repeatability and long-term reliability in workshop,installation and serial production

Sales and consulting: info@evomatec.de
