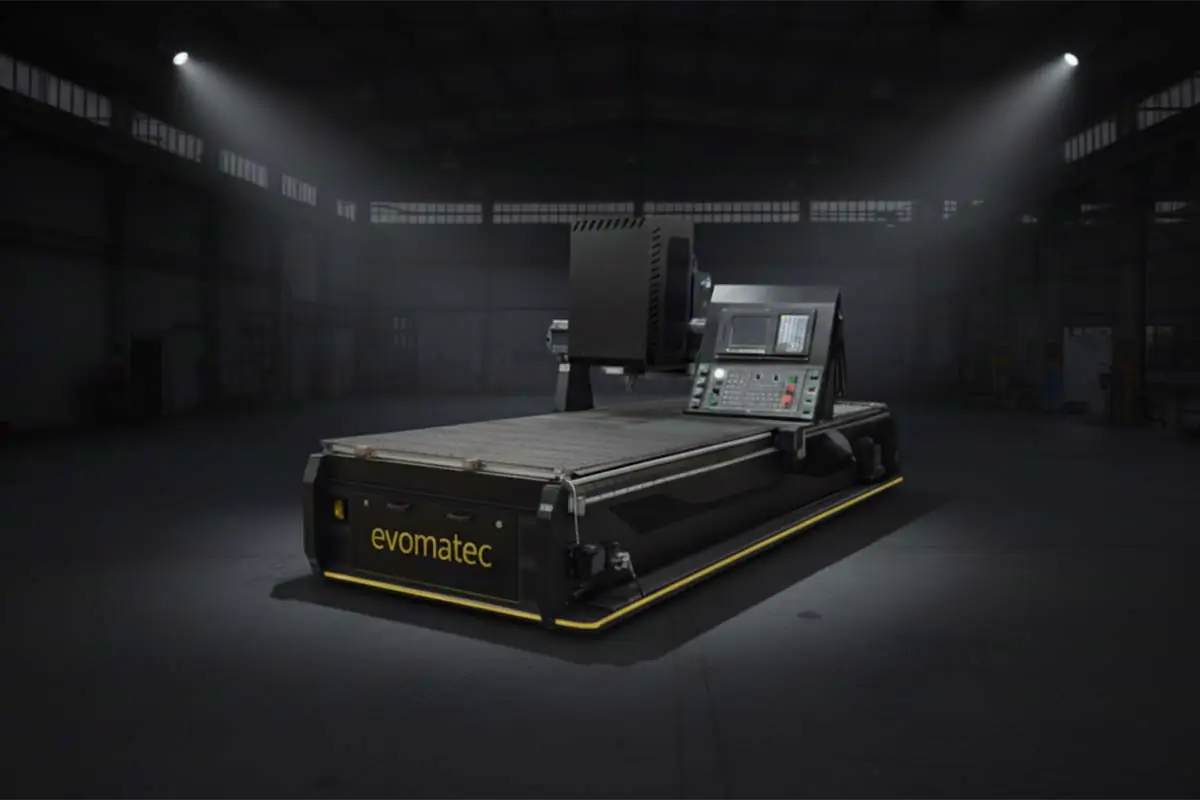

CNC MACHINING CENTER FOR WOOD PANELS EVOL H ECO

CNC Machining Center for Wood Panels EVOL H ECO – High-Precision Wood Panel Processing for Industry and Trade

The CNC machining center for wood panels EVOL H ECO is a professional CNC milling and cutting center for manufacturers who demand maximum precision, efficiency and process reliability in wood and panel processing. Whether furniture production, interior fitting, shopfitting or industrial series manufacturing: The EVOL H ECO combines modern 4-axis CNC technology with a robust machine design and optimized energy consumption. The result is a future-proof platform for cost-effective machining of wood-based materials such as MDF, chipboard, multiplex, plywood and composite panels.

4-axis CNC technology for wood panels

The EVOL H ECO has been specifically developed for precise cutting, milling, drilling and grooving of wood panels and wood-based boards. An intelligent CNC control system in combination with a torsion-resistant steel frame ensures stable machining conditions – even with large-format panels and complex contours.

The generously dimensioned working area of 4000 × 1550 × 250 mm allows the processing of typical panel formats used in modern furniture and interior construction. This makes the EVOL H ECO equally suitable for project-based single-piece and small-batch production as well as for continuous industrial multi-shift operation.

Four powerful spindle motors with 7.5 kW each and speeds of up to 24,000 rpm ensure clean cutting edges, precise bores and high-quality milling results in wood and wood-based materials. Even demanding geometries, radii, pockets and filigree contours are produced reproducibly and with consistent dimensional accuracy.

The integrated automatic tool changer performs tool changes in around 2.5 seconds. This reduces idle times and significantly increases the overall output. The additional B-axis with a rotational speed of 10°/s expands the machining freedom and enables highly precise work on inclined surfaces – ideal for V-grooves, chamfers, angled elements, pockets and contour milling on wood panels.

Technical data of the EVOL H ECO CNC milling machine

The EVOL H ECO combines practical equipment with high power reserves – tailored to continuous industrial use in woodworking.

4-axis CNC control with digital high-precision regulation
Working area: 4000 × 1550 × 250 mm
Automatic tool change: approx. 2.5 seconds
Spindle motor power: 7.5 kW
Spindle speed: up to 24,000 rpm
Tool system: ER8
Extraction motor: 3 kW, approx. 700 m³/h air flow rate for efficient chip and dust removal
Vacuum motors: 2 × 5.5 kW for secure panel hold on the vacuum table
Control unit: 15″ industrial touch screen
Power supply connection: 400 V, total connected load approx. 20 kW
Frequency: 50–60 Hz
Required air pressure: 6–8 bar
2D/3D machining: compatible with Alphacam CAD/CAM software

With these performance figures, the EVOL H ECO is an extremely efficient CNC machining center for wood panels and wood-based materials – ideal for demanding industrial environments where reliability, precision and short throughput times are crucial.

Advantages of the EVOL H ECO woodworking center

The EVOL H ECO CNC machining center for wood panels combines modern CNC technology with solid mechanical engineering quality. This results in consistently high machining quality and minimal downtimes while operating costs are optimized.

Maximum precision and surface quality

The low-vibration machine frame, precise guides and powerful spindles ensure clean cutting patterns, accurate drilling patterns and high-quality milled surfaces. Especially in visible areas of furniture, shopfitting or interior design, this is a decisive quality factor.

High throughput thanks to fast tool change

The automatic tool changer with change times of around 2.5 seconds reduces unproductive auxiliary times. Different machining steps – such as sizing, drilling, grooving and contour milling – can be efficiently combined in a single clamping operation.

Energy-efficient and maintenance-friendly design

A well-thought-out drive concept, efficiently dimensioned aggregates and a service-friendly arrangement of components facilitate maintenance and inspection. This pays off in low life-cycle costs and high machine availability.

Secure clamping and high process reliability

The integrated vacuum table with 5 individually switchable zones ensures secure panel clamping for different formats and nesting layouts. Laser safety barriers and a largely closed machine enclosure increase operator safety and minimize the risk of intervention in the machining area.

Digital process chain with Alphacam

Full integration into Alphacam enables efficient 2D and 3D programming, nesting, optimization of machining paths and seamless transfer of design data. This turns the EVOL H ECO into the central element of a fully digitalized production line.

Application areas of the EVOL H ECO CNC machine

The EVOL H ECO CNC machining center for wood panels is used wherever wood-based panels must be machined quickly, precisely and economically – from craft workshops to industrial series production.

Furniture production and cabinet carcass manufacturing

Production of cabinet parts, fronts, back panels and reinforcement elements made of MDF, chipboard or multiplex
Precise drilling, dowel and fitting holes as well as milling pockets for fittings and connecting elements
Sizing, contour milling and grooving in one automated machining process

Interior fitting and shopfitting

Machining of wall claddings, ceiling panels, counters and partition walls
High-quality visible edges and repeatable quality for architecturally demanding interior solutions
Ideal for shopfitting, trade fair construction, hotel furnishings, office fit-outs and prestigious interiors

Door, window and stair components made of wood-based materials

Machining of door leaves, frames, infills and panels made of wood-based materials
Milling of cut-outs for locks, hinges, fittings and glazing
Precise production of treads, risers and decorative stair components

Displays, POS elements and packaging solutions

Production of sales displays, presentation stands and POS elements made of plywood and panel materials
Contour-accurate cutting for lettering, logos and decorative elements made of wood
Production of special packaging inserts and transport packaging made of wood panels

Industrial series production and contract manufacturing

Series production of wood and wood-based components for the furniture industry, interior fitting, vehicle interior construction and other sectors
CNC-controlled cutting and milling with high repeat accuracy and reproducible quality
Flexible solution for contract manufacturers and OEM suppliers in the wood and panel sector

Conclusion – Premium CNC machining center for wood panels

The EVOL H ECO CNC machining center for wood panels stands for high-precision wood panel processing, efficient production processes and robust industrial quality. With 4-axis CNC control, automatic tool changer, powerful multi-zone vacuum table and well-designed extraction technology, the machine offers all key functions for modern, economical wood panel production.

Whether in furniture production, interior fitting, shopfitting or industrial series manufacturing – the EVOL H ECO supports short throughput times, consistent quality and a significant increase in productivity. Companies that rely on long-term reliability, high machining quality and future-proof CNC technology for wood panels will find one of the most attractive solutions in its class in the EVOL H ECO.

Contact our sales team:info@evomatec.de
