ALUMINIUM PROFILE MACHINING CENTER EVOGXS

ALUMINIUM PROFILE MACHINING CENTER EVOGXS – CNC PROFILE MACHINING CENTER (3 + 1 AXES) FOR ALUMINIUM AND PVC PROFILES

Maximum Precision and Flexibility in Industrial Aluminium Profile Processing

CNC Technology for High-Performance and Versatile Production

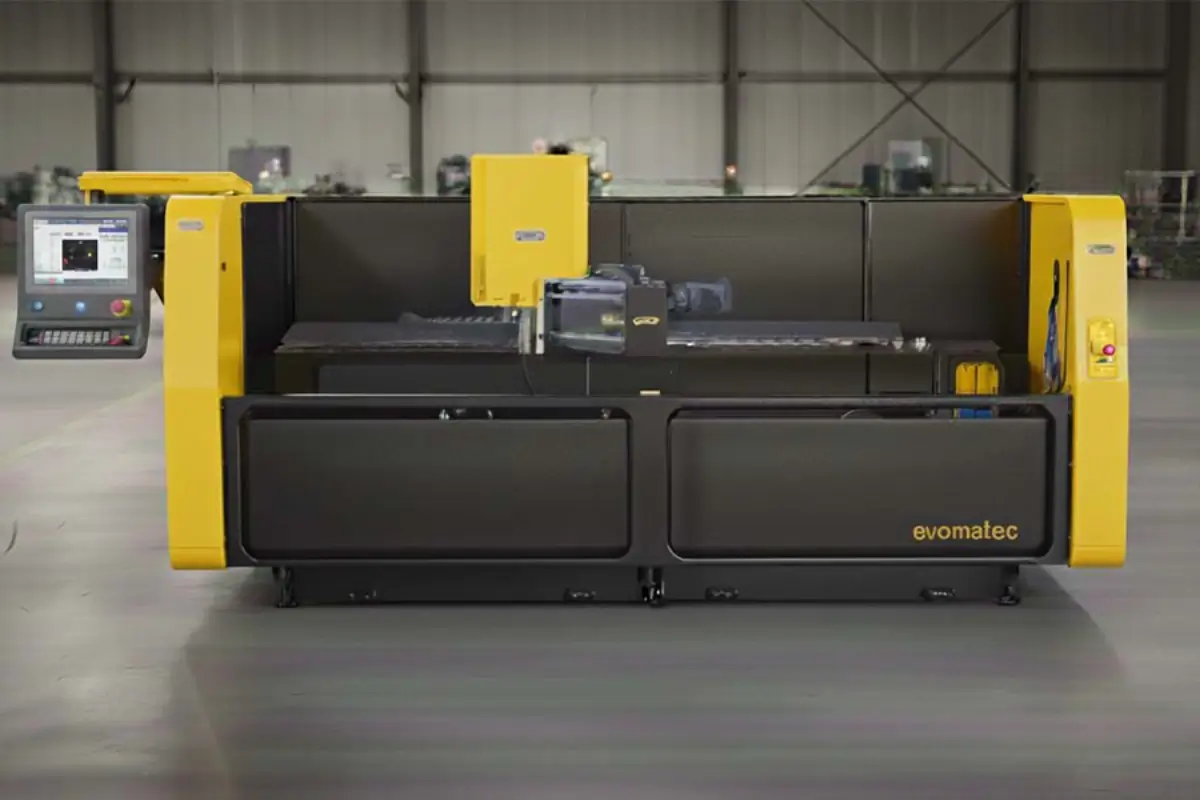

The EVOGXS CNC Profile Machining Center by EVOMATEC is designed to perform a wide range of machining operations on aluminium and PVC profiles with maximum precision, efficiency, and flexibility.
Equipped with a powerful 5.5 kW spindle motor and an innovative 3 + 1 axis system, the EVOGXS is the perfect solution for window, door, and façade manufacturing, where quality, repeatability, and productivity are critical.

With spindle positioning at fixed angles of –90°, 0°, and +90°, the machine performs milling, drilling, marking, drainage slot cutting, punching, and end milling with high precision and speed.
The result: outstanding surface finish, minimal setup time, and maximum production throughput.

Advanced CNC Technology for Maximum Productivity

Automation and Efficiency in Every Process

The EVOGXS Aluminium Profile Machining Center combines state-of-the-art CNC control, servo-driven axes, and an automatic tool magazine with 8 + 1 positions, allowing for fast tool changes within seconds — ideal for continuous series production.

The system is designed to minimize operator intervention, featuring automatic clamping unit positioning along the X-axis for optimized workflow and reduced setup time.

An optional automatic lubrication system ensures consistent maintenance of all moving parts, extending the lifespan of the machine.
This combination of efficiency, stability, and precision makes the EVOGXS a true benchmark in industrial aluminium profile machining.

Technical Specifications of the EVOGXS CNC Profile Machining Center

Machining Range

X-axis: 3000 mm Y-axis: 340 mm Z-axis: 255 mm
A-axis (spindle tilt): –90° | 0° | +90°

Positioning Speeds

X-axis: 90 m/min Y-axis: 60 m/min Z-axis: 20 m/min

Electrical Data

Power: 8.46 kW 400 V 3 Phases PE AC 50–60 Hz

Spindle

Power: 5.5 kW Speed: 24,000 rpm Tool Holder: ISO 30
Cooling: Electric fan

Tool Magazine

Automatic linear magazine with 8 + 1 tool positions
Integrated tool measurement system
Max. tool diameter: 150 mm

Control Unit

Industrial 15″ touchscreen PC
CAM software: Camquix CAM (standard)
CAD/CAM software: CadXtract (optional)
Data transfer via Ethernet & USB
Barcode scanner and B&R automation system

Pneumatics & Working Area

Air pressure: 6 – 8 bar Thread tapping M8 (optional)
4 standard clamping units (expandable to 6)
Automatic clamp positioning along X-axis
FESTO pneumatic components and enclosed safety cabin
Automatic tool cooling (optional)
Automatic lubrication (standard)

Versatile Applications for Aluminium and PVC Profiles

The EVOGXS machining center covers all industrial requirements — from single-piece production to high-volume serial manufacturing.
Its precision control and high dynamics make it ideal for:

Window manufacturing: milling and drilling of frame and sash profiles
Door production: machining of handle and locking slot openings
Façade construction: processing of large-scale aluminium profiles with complex angles
Industrial manufacturing: machining of technical components made of aluminium and PVC

With its high repeatability, automatic tool management, and intuitive CNC interface, the EVOGXS is designed for maximum efficiency, precision, and minimal downtime.

EVOMATEC – Expertise in CNC Profile Machining

EVOMATEC is one of the leading manufacturers of CNC machining centers for aluminium profiles.
Our machines are in operation worldwide, standing for German engineering excellence, durability, and precision.
With advanced software, industrial-grade hardware, and robust mechanical design, EVOMATEC provides solutions for window, door, and façade manufacturers focused on productivity and quality.

Our CNC machining centers enable milling, drilling, sawing, marking, and thread cutting on aluminium profiles — precisely, quickly, and reliably.
They form the foundation for durable, dimensionally accurate, and visually refined finished products.

Conclusion – Future-Proof Technology for Aluminium Profile Processing

The EVOGXS CNC Profile Machining Center combines advanced CNC technology, automation, and intelligent software into a high-performance machining system.
With its robust design, precise spindle technology, and ergonomic control interface, it is the ideal choice for manufacturers who value process reliability, efficiency, and precision.

EVOMATEC – Your Partner for the Future of Aluminium Profile Processing
