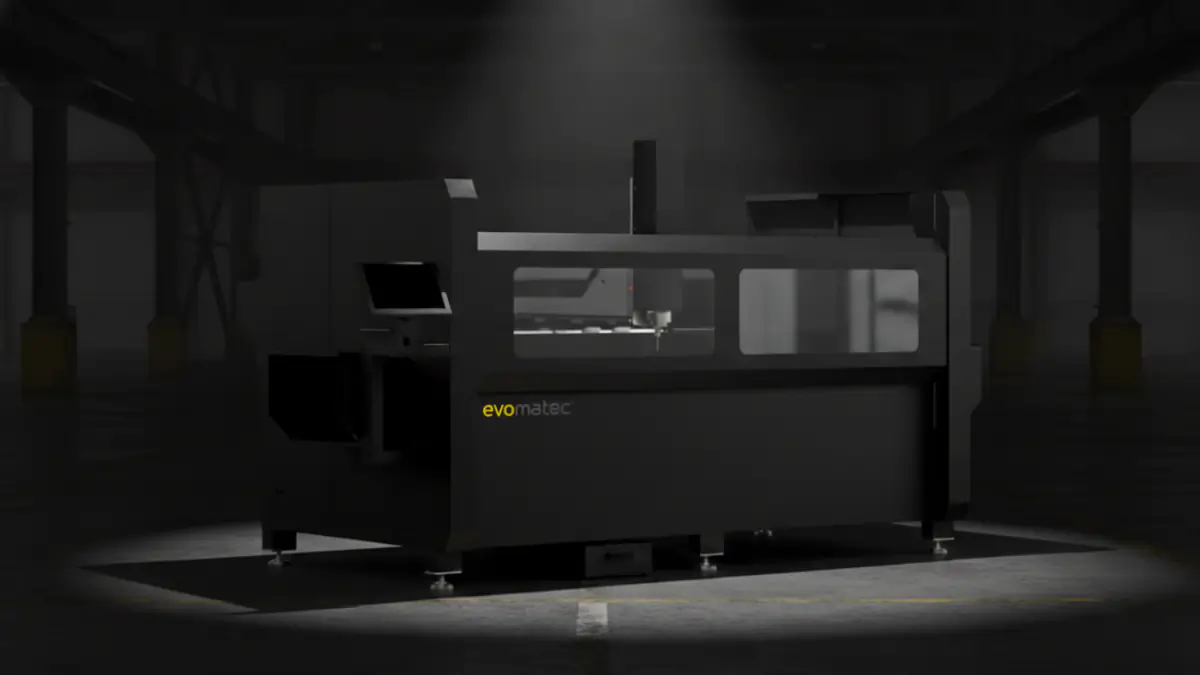

Aluminium Machining Center EVO MATIC I BLACKLINE

Compact 4-Axis Profile Machining Center for Aluminium Profiles

The EVO MATIC I BLACKLINE is a compact, high-performance machining center for precise, economical and reproducible machining of aluminium profiles in modern profile production. As a CNC machining center, it is designed to efficiently combine typical machining operations in window manufacturing, door manufacturing, façade construction as well as in industrial profile processing. At its core, the system operates as a profile machining center that brings together multiple work steps in a structured workflow, thereby reducing setup times, shortening auxiliary times and stabilizing process quality.

In practice, the EVO MATIC I BLACKLINE is often used as an aluminium machining center when the goal is to achieve clean edges, precise hole patterns and stable dimensional accuracy. Exactly for this purpose, the system combines milling, drilling, elongated hole machining and slot machining as well as contour-guided recesses in one continuous process. Companies looking for a machining center for aluminium profiles benefit from a clear process logic that supports consistent results in continuous operation and significantly reduces rework.

More Process Density in One Workflow for Short Setup Times and Stable Quality

In aluminium profile machining, short auxiliary times and repeatable results determine profitability. This is exactly what the EVO MATIC I BLACKLINE is designed for as a CNC profile machining center. The machine operates as a profile machining center for aluminium when changing profile geometries, different machining patterns and varying hardware positions must be handled reliably. The goal is a stable, predictable workflow in which all relevant machining steps are implemented in one clamping concept, without unnecessary reclamping operations or time losses.

This enables the system to meet the requirements of many users who are looking for a reliable CNC milling center and at the same time need the combination of milling and drilling in one process. In this context, the EVO MATIC I BLACKLINE is established as a CNC milling center for aluminium, because typical milling operations, hole patterns and functional recesses can be completed in a single pass. Anyone who wants to simplify the process chain in profile production uses the system as a CNC drilling and milling center for aluminium profiles to bundle multiple operations and make production significantly more efficient.

4 Servo Axes and Table Rotation for Flexible Angle Machining

Angle Machining from Minus 90 to Plus 90 Degrees for Versatile Profile Geometries

The EVO MATIC I BLACKLINE is a 4-axis profile machining center and is used in many production facilities specifically as a 4 servo axes machining center when high flexibility is required with a compact footprint. In addition to the linear axes, the machine supports servo-controlled table rotation for angle machining. This allows machining operations to be carried out at different angles between minus 90 and plus 90 degrees. Especially for profiles with changing surfaces, complex contours or functional machining on different sides, this angle machining for aluminium profiles is a decisive advantage, because the machining is guided stably and repeat accuracy increases significantly in everyday production.

For users, this means that many machining operations no longer have to be distributed across multiple stations. Instead, drilling, pockets, contours and slots are positioned precisely in one workflow. This directly improves quality and time, because dimension chains remain stable and the surface finish is cleaner. In this context, the system is often described as a solution for aluminium profile machining with table rotation, because the rotation improves the machinability of complex profile sides and makes variant programming easier.

Machining on Three Profile Surfaces for Typical Applications in Window and Door Manufacturing

As a compact solution, the EVO MATIC I BLACKLINE supports machining on three profile surfaces. In practice, this involves machining operations that occur daily in window and door manufacturing, for example drainage holes, functional pockets, system drilling as well as hardware and connection machining. The system is designed to perform milling aluminium profiles and drilling aluminium profiles cleanly, with minimal burrs and reproducibly, even when geometries change or different hardware systems are processed.

Especially for recurring machining operations such as slot milling aluminium profiles and milling elongated holes in aluminium profiles, the benefit of process bundling becomes clear. Machining operations that previously required several work steps can be carried out in one clamping operation. This improves dimensional accuracy and reduces sources of error. In addition, the machine is ideal for hardware machining aluminium profiles, because hardware pockets, drilling and functional openings can be positioned precisely.

Typical Applications in Practice

The EVO MATIC I BLACKLINE is the ideal solution especially when companies require recurring machining operations in high quality and with short cycle times. In daily production, machining operations for lock and handle areas are implemented, among other things. These include, for example, lock case machining profile, functional milling operations for component integration as well as precise hole patterns. Likewise, handle drilling aluminium profile and contour-guided machining operations for hardware can be processed reliably.

Machining operations that are often considered time-consuming in profile production are also combined efficiently in the EVO MATIC I BLACKLINE. These include recesses and machining operations that require clean contour guidance. In many applications, the hinge area is also relevant, which is why the machine is also used for tasks such as milling hinge pockets profile. Thanks to stable guidance and servo-controlled rotation, machining operations can be reproduced reliably, which is a key competitive advantage especially for series production and variant manufacturing.

Programming and Process Guidance with Camquix

For fast and safe implementation of recurring machining operations, the system supports parametric program templates and a clear process structure. In practice, the Camquix CAM machining center shows its strengths here, because machining operations can be created clearly, variants can be structured and programs can be executed reproducibly. This reduces training time, improves process reliability and ensures that a stable production flow is maintained even with changing orders.

Capacity for Profiles up to 2500 mm and Compact Work Area

Profile Dimensions and Machining Length for Practical Production

The EVO MATIC I BLACKLINE can process profiles up to 2500 mm in length. For the typical cross-section range, profiles up to 175 mm height and 175 mm width are supported. This means the system covers many common aluminium profile applications and is suitable as a machining center for companies that need a compact, robust solution for recurring machining operations in profile production. Especially for workshops and production facilities looking for a compact CNC machining center for aluminium profiles, this design offers a practical balance of work area, flexibility and efficiency.

Technical Data EVO MATIC I BLACKLINE
