AUTOMATIC ALUMINIUM CUTTING MACHINE FOR ALUMINIUM PROFILES EVOM II 600 ECO

‹ ›

AUTOMATIC ALUMINIUM CUTTING MACHINE FOR ALUMINIUM PROFILES – EVOM II 600 ECO

Industrial Cutting Technology for Precise and Efficient Aluminium Profile Processing

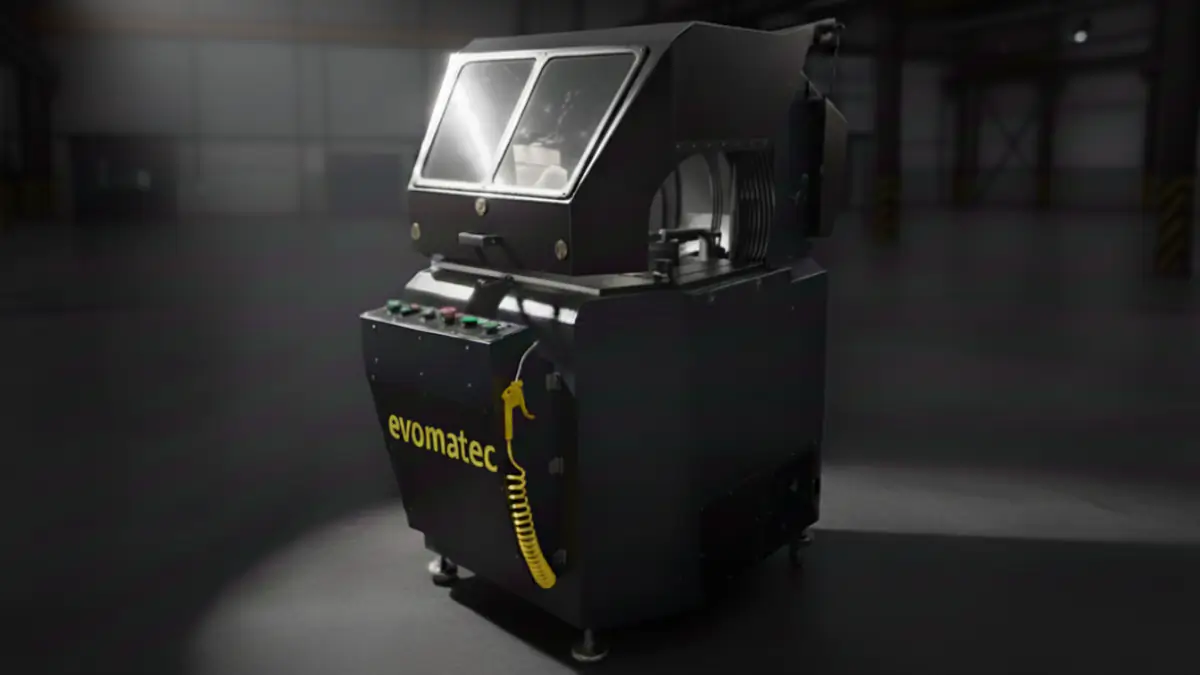

The EVOM II 600 ECO automatic aluminium profile cutting machine is a robust industrial mitre saw for aluminium profiles, designed for highly accurate, clean and burr-free cutting of aluminium and light metal profiles.
With its Ø 600 mm carbide-tipped saw blade, hydro-pneumatic feed unit and rigid cast-steel body, the machine ensures excellent stability, reproducible cutting accuracy and a long service life – ideal for the production of window, door, façade and structural profiles.

By combining advanced cutting technology, energy-efficient drive engineering and a heavy-duty machine frame, the EVOM II 600 ECO becomes a central system component in modern aluminium production lines.
It is the preferred solution for manufacturers who require maximum precision, reliability and productivity in aluminium profile processing.

Hydro-Pneumatic Feed – Controlled, Smooth and Tool-Friendly

The hydro-pneumatic feed system provides a steady, controlled saw feed and continuously adapts the cutting speed to the respective profile geometry, wall thickness and material properties.
This controlled movement reduces vibration, protects the saw blade, and helps to significantly reduce offcuts and material waste.

The generous mitre range from −22.5° to +22.5°, with fixed stops at 0°, 15°, 22.5°, 30°, 45°, gives the operator maximum freedom for angular cuts, frame assemblies and special profile solutions.

Thanks to its automatically regulated cutting speed and intelligent motion control, the EVOM II 600 ECO achieves consistent, repeatable cutting quality – even with complex aluminium profiles and under demanding industrial conditions.

Safety and Ergonomics for Professional Industrial Use

The EVOM II 600 ECO is designed in accordance with current CE safety standards.
A closed safety hood with integrated monitoring sensors prevents the machine from being operated when the cover is open and guarantees maximum protection for the operator during the entire cutting cycle.

Pneumatically operated vertical and horizontal clamps hold the workpiece firmly in position, preventing any slipping or vibration.
In combination with automatic angle setting, hydro-pneumatic feed and controlled cutting speed, this results in a consistently high and reproducible cut quality – even in multi-shift operation.

Robust Design and Energy-Efficient Performance

The massive cast-steel construction of the EVOM II 600 ECO ensures low-vibration running and long-term dimensional stability, even under continuous industrial loads.
A powerful 3 kW (≈ 4,08 HP) motor drives the Ø 600 mm carbide-tipped saw blade and provides ample power reserves for thick-walled aluminium profiles and other non-ferrous metals.

An integrated cooling system protects both the tool and the workpiece from overheating and enables smooth, burr-free cut surfaces.
With an operating pressure of 6–8 bar and an air consumption of only 58 L/min, the EVOM II 600 ECO works energy-efficiently, quietly and with low maintenance – perfectly suited for 24/7 use in production.

Technical Specifications

Performance Data

Saw blade diameter: Ø 600 mm (carbide-tipped)
Spindle speed: 2,350 rpm
Motor power: 3 kW (≈ 4.08 HP)
Voltage / frequency: 400 V / 50 Hz

Cutting and Feed System

Cutting angle range: −22.5° to +22.5° with fixed stops at 0°, 15°, 22.5°, 30°, 45°, 22.5°
Feed system: hydro-pneumatic, automatically regulated
Clamping system: pneumatic – vertical and horizontal cylinders
Cooling: integrated cooling system

Air Supply and Machine Dimensions

Air pressure: 6–8 bar
Air consumption: 58 L/min
Machine dimensions (L × W × H): 1,000 × 1,225 × 1,700 mm
Machine weight: 300 kg

Key Advantages of the EVOM II 600 ECO Automatic Aluminium Profile Saw

Precision and Process Control

– Hydro-pneumatic feed unit for smooth and controlled saw movement
– Wide angle range of ±22.5° for flexible mitre and special cuts
– Integrated blade cooling for high-quality, burr-free cutting edges

Stability and Safety

– Pneumatic vertical and horizontal clamping for vibration-free workpiece holding
– CE-compliant safety cover with sensor monitoring of the protection hood
– Solid cast-steel frame for long-term rigidity and precise cutting geometry

Efficiency and Production Reliability

– Economical operation thanks to low air consumption and efficient drive technology
– Maintenance-friendly layout with robust, industrial-grade components
– Ideal for serial and series production with high repeat accuracy and short cycle times

Typical Fields of Application

The EVOM II 600 ECO is designed for professional aluminium processing and is used in a wide variety of industrial environments, such as:

– Window and door manufacturing: precise cutting of frame and sash profiles
– Façade and curtain wall construction: accurate cutting of mullion, transom and cladding profiles
– Structural and system profile fabrication: aluminium frameworks and modular profile systems
– Serial production of aluminium components for industrial and architectural applications
– Precision cutting tasks in machine building, metal construction and lightweight structures

Whether used as a stand-alone saw in the workshop or integrated into automated production lines, the EVOM II 600 ECO delivers high-precision, repeatable results and supports maximum productivity.

Conclusion – EVOM II 600 ECO as an Efficient Cutting Solution

The EVOM II 600 ECO automatic aluminium profile saw represents industrial precision, high efficiency and long-term operational reliability.
With its powerful 3 kW drive, hydro-pneumatic feed technology and pneumatic clamping system, it enables clean, burr-free and dimensionally accurate cuts in aluminium and light alloys for a wide variety of applications.

For manufacturers in the window, door and façade industry who are looking for a technologically advanced, energy-efficient and high-performance cutting solution, the EVOM II 600 ECO is an outstanding choice.
