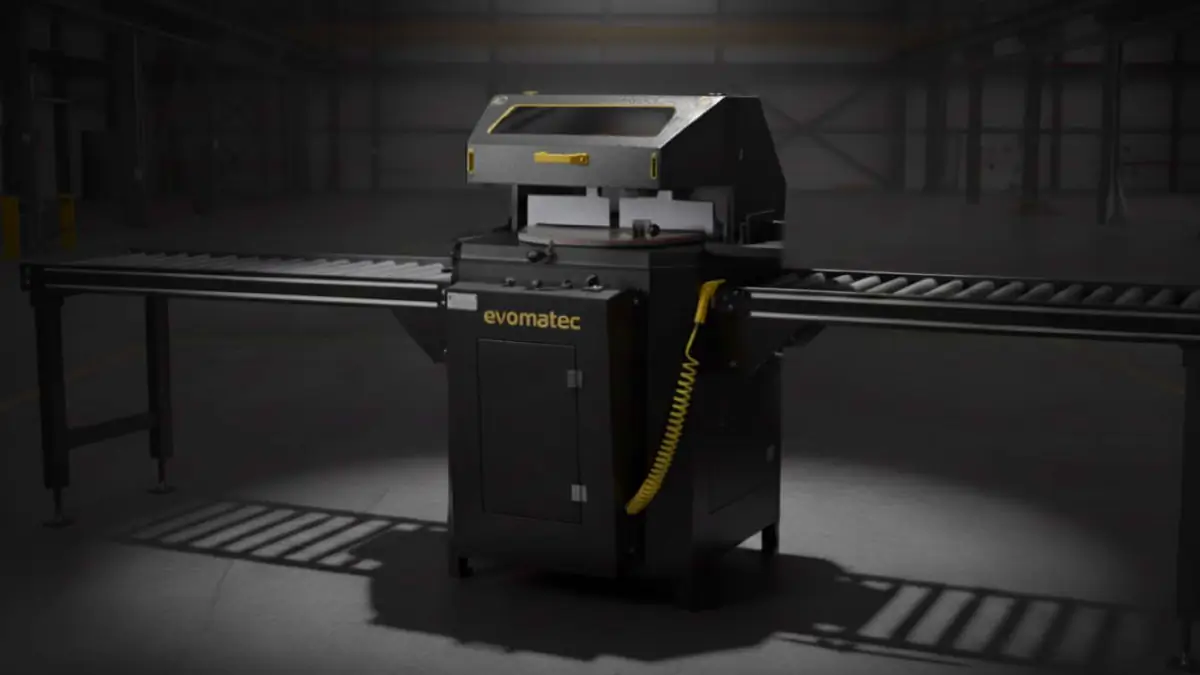

AUTOMATIC UP-CUT MITRE SAW FOR ALUMINIUM PROFILES EVO G 450 ECO

‹ ›

Automatic Upcut Miter Saw for Aluminium Profiles

Precise profile cutting for window construction, door construction and façade construction

This miter saw for aluminium profiles& plastic profiles has been developed for professional cutting of aluminium and aluminium profiles & plastic profiles. As an automatic upcut miter saw, it delivers clean, low-burr cuts, high repeatability and reliable process stability for workshop operation and series production. Especially for recurring miter cuts, the machine supports a smooth workflow and ensures consistently high manufacturing quality, which is directly reflected in precisely fitting frames, clean corner joints and a professional end result.

Drive concept: gear drive without belt or direct drive

The saw shaft drive is designed as a gear drive. The circular saw blade is not directly coupled to the electric motor and no belt or pulley system is used. The result is smooth running, stable power transmission and consistently high cutting quality in profile processing. Thanks to the robust, gear-guided power transmission, the machine is ideal for daily use in companies that value reliable technology, reproducible results and a durable design.

Main features

Miter angle 45° - 90° - 45° with all intermediate angles

• Miter cuts exclusively in the range from 45° via 90° to 45°, including all intermediate angles
• Fast, reproducible angle setting via positioning pin for 45° - 90° - 45°
• Suitable for typical applications in window construction, door construction and façade construction, where precise angles and repeatable cuts are essential

Feed, clamping technology and operating convenience

• Adjustable feed speed for material-appropriate sawing and clean cut surfaces
• Pneumatic clamping system for secure fixation and repeatable results
• Stable clamping reduces profile movement during the cut and supports dimensional accuracy as well as consistent quality in series cutting

Saw blade and options

• Carbide-tipped saw blade Ø 450 mm for precise and durable cutting performance
• Roller conveyor/feeder optional, not included in the base price
• The optional roller conveyor makes handling long profiles easier, improves material flow and can significantly increase productivity in daily operation.

Price

2,600 € base version without roller conveyor for PVC or plastic profiles, with pneumatic feed
2,900 € base version without roller conveyor for aluminium profiles, with hydropneumatic feed and cooling

Typical application areas

Ideal for precise cutting of aluminium profiles and, depending on the version, PVC and plastic profiles in window construction, door construction and façade construction. The combination of gear drive, clamping technology and controlled feed ensures process-reliable cuts, short cycle times and convincing cutting quality. This makes the machine a suitable solution for companies looking for an economical, reliable and high-quality miter saw for daily production use.
