ALUMINIUM PROFILE MACHINING CENTER EVOG800

ALUMINIUM PROFILE MACHINING CENTER EVOG800 – CNC PROFILE MACHINING CENTRE (4 AXES)

Precision, Efficiency and Flexibility for Industrial Aluminium Profile Processing

Advanced CNC Technology for Aluminium, PVC, and Light Metal Profiles

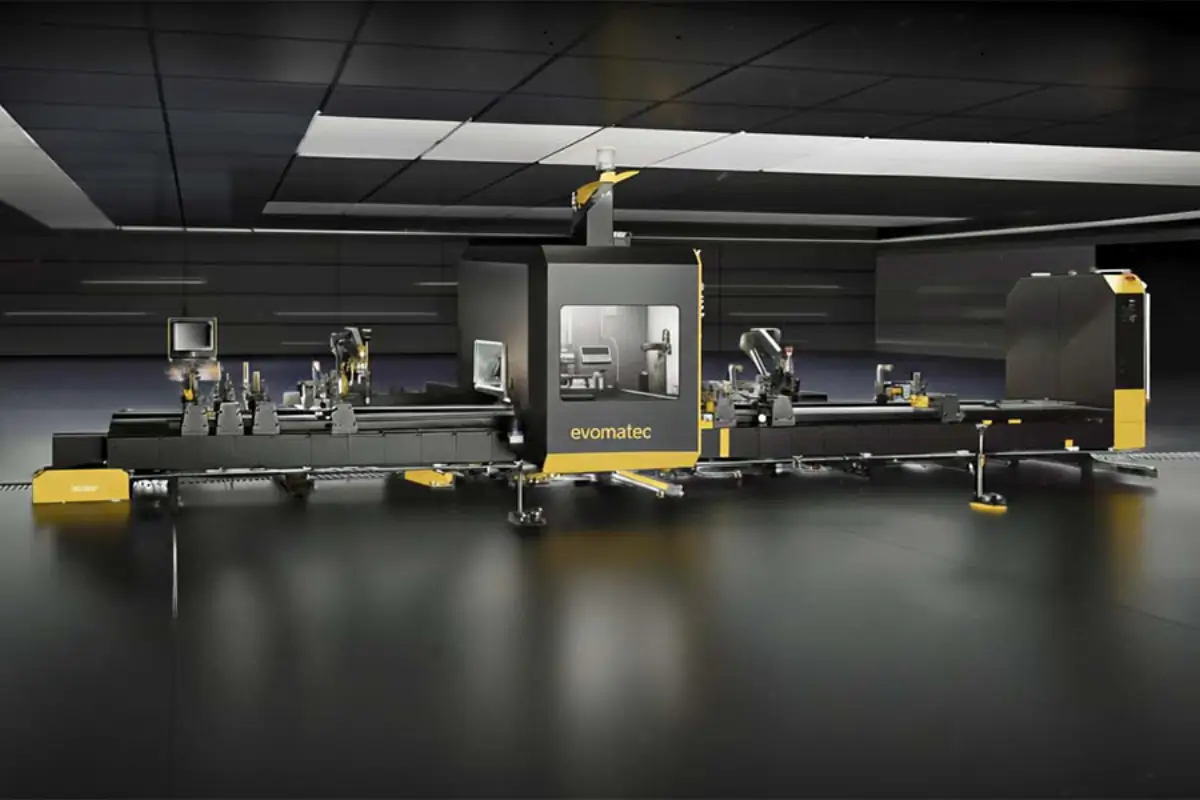

The EVOG800 CNC Profile Machining Center by EVOMATEC represents the latest generation of automated machining systems for aluminium, PVC, light metal, and steel profiles.
Equipped with 4 servo-controlled axes, a rotating spindle from -90° to +90°, and a working area of 580 × 290 mm, the EVOG800 provides an ideal solution for precise and versatile operations — including milling, drilling, drainage channel opening, marking, and end milling.

Thanks to its high dynamics, automatic tool changer, and intelligent clamping systems, the EVOG800 delivers maximum productivity with minimal operator intervention — ideal for companies in window, door, façade, and metal construction industries.

Advanced Technology for Maximum Performance

High-Power Spindle and Automated Tool Management

The EVOG800 combines modern CNC technology with efficiency and precision.
Its 9 kW high-performance spindle with automatic tool changer (ATC) handles complex operations effortlessly, enabling continuous production.
The 20-position automatic tool magazine, synchronized with the moving gantry, minimizes setup times and increases throughput.

An optional automatic lubrication system ensures optimal axis maintenance and extends the life of all drive components.
The enclosed protective cabin with safety barriers guarantees a clean and secure machining environment.

Technical Highlights of the EVOG800

Machining Capacity

X-axis (longitudinal): 8,000 mm (optionally extendable)
Y-axis (transverse): 580 mm
Z-axis (vertical): 290 mm
A-axis (spindle rotation): -90° to +90°

Positioning Speed

X-axis: 84 m/min
Y-axis: 75 m/min
Z-axis: 40 m/min
A-axis (rotation): 100°/s

Electrical Specifications

Total power: 18.3 kW
Frequency: 50–60 Hz
Voltage: 400 V, 3N PE AC

Spindle System

Spindle power: 9 kW
Tool holder: ISO 30
Cooling: Electric fan
Maximum speed: 24,000 rpm

Tool Magazine

Automatic Tool Changer (ATC): Umbrella type
Capacity: 20 tools
Automatic tool measurement: integrated
Max. saw blade diameter: 180 mm

Control & Software Integration

Industrial PC with 15″ touchscreen
Barcode scanner for automatic program selection
Camquix CAM software preinstalled
CadXtract CAD/CAM optional
Data transfer: Ethernet, USB, remote access

Pneumatics & Air System

Operating pressure: 6–8 bar
Thread tapping capacity: M8
FESTO pneumatic system optional

Profile Positioning & Work Area

Pneumatic profile referencing (right & left)
Standard clamping fixtures: 8 (up to 10 optional)
Servo-controlled clamping position (optional)
Automatic lubrication and chip extraction (optional)

Industrial Advantages of EVOG800 CNC Technology

Maximum Precision and Speed

The EVOG800 provides repeatable machining accuracy within ±0.1 mm.
Thanks to servo-synchronized axis movement and automated tool management, it significantly reduces cycle times and increases throughput in industrial production.

High Productivity and Ease of Use

The automatic clamping system ensures reliable profile fixation, while the intelligent CAM integration simplifies programming and setup.
All axes are digitally controlled, ensuring fast, smooth, and vibration-free motion.

Durability and Safety

The rigid cast-iron machine frame, enclosed protection cabin, and automatic lubrication guarantee a long service life with minimal maintenance.

Application Areas of the EVOG800

Window Manufacturing

Precise milling, drilling, and cutting of frame and sash profiles
Processing of drainage and locking channels

Door Manufacturing

High-precision finishing of door frames and lock housings

Façade Construction

Large-format profiles, angle-adjustable milling, and miter cuts

Metal & Light Alloy Fabrication

CNC machining of custom profiles, aluminium structures, and steel profiles

Why Choose EVOMATEC?

EVOMATEC stands for technological excellence, industrial reliability, and long-term productivity.
Our CNC systems are designed for maximum performance and precision in aluminium profile machining.
With continuous innovation, premium components, and user-friendly software, EVOMATEC provides everything modern manufacturers need for efficient and accurate profile processing.

Key Advantages:

Servo-controlled 4-axis technology
Automatic tool changer with 20 positions
Precision of ±0.1 mm
Machining lengths up to 8 meters
CAM and CAD compatibility
Energy-efficient and low maintenance

Conclusion – Future-Proof Aluminium Profile Processing with EVOG800

The EVOG800 CNC Profile Machining Center from EVOMATEC combines precision, power, and automation in one compact system.
With its 4-axis control, 9 kW spindle, flexible tool management, and Industry 4.0 software integration, the EVOG800 is the ultimate solution for manufacturers demanding maximum quality, speed, and reliability.

EVOG800 – Your Key to Efficient, Precise, and Future-Proof Aluminium Profile Machining.
