MITER SAW FOR PVC AND PLASTIC PROFILES – EVOCUT 300MS

Maximum Precision, Efficiency, and Reliability in Professional Plastic Processing

Precision Cutting Technology for PVC and Plastic Profiles

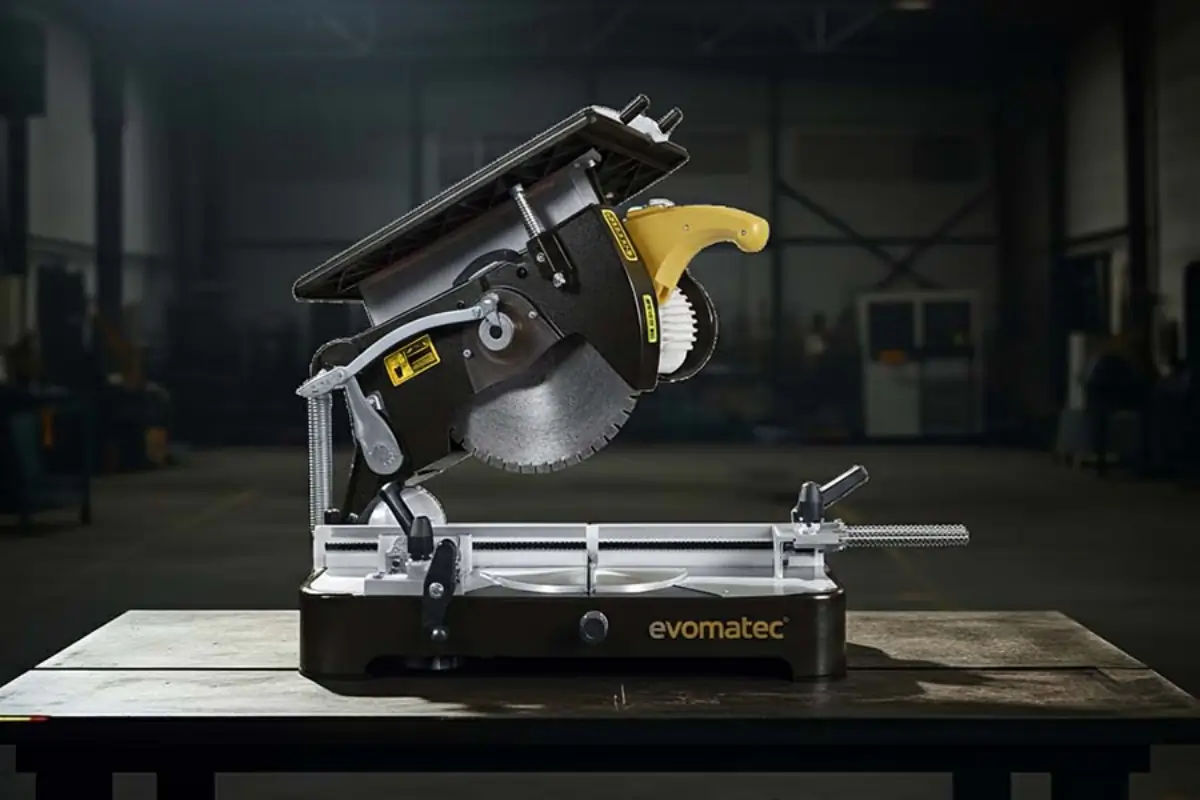

The EVOCUT 300MS from Evomatec is a powerful miter saw for PVC and plastic profiles, engineered for precise cutting in window, door, and façade production.
It combines a robust machine structure, energy-efficient motor technology, and advanced cutting accuracy—ideal for companies focused on quality, repeatability, and long-term performance.

With its solid cast-iron base, low-vibration operation, and precise miter adjustment, the EVOCUT 300MS ensures clean, burr-free, and dimensionally accurate cuts, even with complex profile geometries or delicate plastic materials.
Each machine is manufactured in compliance with CE standards, thoroughly tested, and calibrated to guarantee maximum safety and consistent performance.

Perfect Cutting Quality for PVC, ABS, and Plastic Profiles

The specially designed carbide-tipped saw blade delivers smooth, precise edges without the need for reworking.
The stepless miter adjustment from –45° to +45° allows for accurate angle cuts—perfect for frames, trims, and window or door joints.
Thanks to its heavy-duty body and precision guiding system, the EVOCUT 300MS ensures repeatable accuracy—even during continuous, multi-shift operation.

Technical Features of the EVOCUT 300MS

Feature Description
Saw Blade Diameter Ø 305 mm, carbide blade for PVC and plastic
Cutting Range 128 × 80 mm (90°), 88 mm (45°)
Miter Adjustment Stepless from –45° to +45°
Motor Power 1.1 kW / 1.5 HP – 230 V, 50–60 Hz, 3000 rpm
Mechanism Dual spring system for uniform cutting motion
Machine Base Solid cast-iron construction for low vibration
Quick-Clamping System Securely fixes plastic profiles during cutting
Optional Equipment Profile gauge, dual clamp, conveyor, braking module, stand, three-phase motor

This setup enables precise, clean, and efficient cutting—whether in workshops, production lines, or mobile operations.

Product Advantages of the EVOCUT 300MS

1. Superior Cutting Quality

The EVOCUT 300MS produces smooth, burr-free cuts in PVC and plastic profiles—ideal for window frames, doors, and façade components.
Its vibration-free performance and precision saw blade eliminate the need for post-processing.

2. Energy Efficiency and Cost-Effectiveness

The energy-optimized electric motor provides high, stable performance with minimal power consumption.
Its low-maintenance design reduces downtime and operating costs—making it perfect for companies with high-volume production.

3. Ergonomic and Safe Operation

The ergonomic design of the EVOCUT 300MS ensures comfortable operation and fast profile changes.
The quick-clamping system secures the workpiece safely, while the protective housing guarantees maximum operator safety.

Mobile Miter Saws for Plastic Profiles – Flexibility Anywhere

Alongside its stationary version, Evomatec also offers mobile miter saws for plastic and PVC profiles, designed specifically for installation work and flexible job sites.
These portable versions enable precise miter and longitudinal cuts directly on-site—quickly, safely, and efficiently.

Advantages of the Mobile Version

  • Lightweight, easy-to-transport design

  • Ideal for on-site window and door installation

  • Precise cuts on PVC profiles and plastic frames

  • Available with corded or battery-powered operation depending on the model

  • Ready for use with minimal setup time

Mobile miter saws are the perfect solution for installers, window manufacturers, and workshops operating at multiple locations.

Typical Applications of the EVOCUT 300MS

The machine is universally applicable and perfectly tailored to the needs of plastic profile processing:

  • Cutting PVC and plastic profiles for window and door frames

  • Miter cutting for joints and casing profiles

  • Serial production in industrial window and door manufacturing

  • Workshop use for precision cutting in small-batch production

  • Façade construction and multi-chamber profile processing

The EVOCUT 300MS boosts productivity, precision, and reliability in every manufacturing environment.

CE-Certified Quality and Safety

Evomatec represents German engineering quality and CE-certified manufacturing.
Each EVOCUT 300MS is individually tested—including speed control, cutting accuracy, and safety functions—all verified and documented.
This commitment to quality ensures machines that remain precise, durable, and safe, even under intensive use.

Cost-Efficiency and Durability

The EVOCUT 300MS stands out with its ideal balance of performance and cost-efficiency.
Thanks to its energy-saving motor, solid construction, and low-maintenance design, the investment pays off quickly.

Economic Advantages

  • Reduced energy consumption

  • Minimized downtime

  • Long service life

  • High repeatability

  • Cost-effective alternative to complex CNC systems

Conclusion – Precision and Efficiency in Profile Processing

The EVOCUT 300MS Miter Saw for PVC and plastic profiles is a state-of-the-art cutting system designed for demanding applications in window, door, and façade manufacturing.
It unites precision, energy efficiency, stability, and safety in one compact, industrial-grade machine.

Whether stationary or mobile, the EVOCUT 300MS stands for quality, longevity, and perfect cutting results—crafted with Evomatec’s engineering expertise.


Contact our team for a free consultation or personalized quote: Click here
