ALUMINIUM PROFILE END MILLING MACHINE – EVOP II

Precise End Machining for Aluminium Profiles with Maximum Stability and Repeat Accuracy

Perfect End Machining of Aluminium Profiles for Window, Door, and Façade Construction

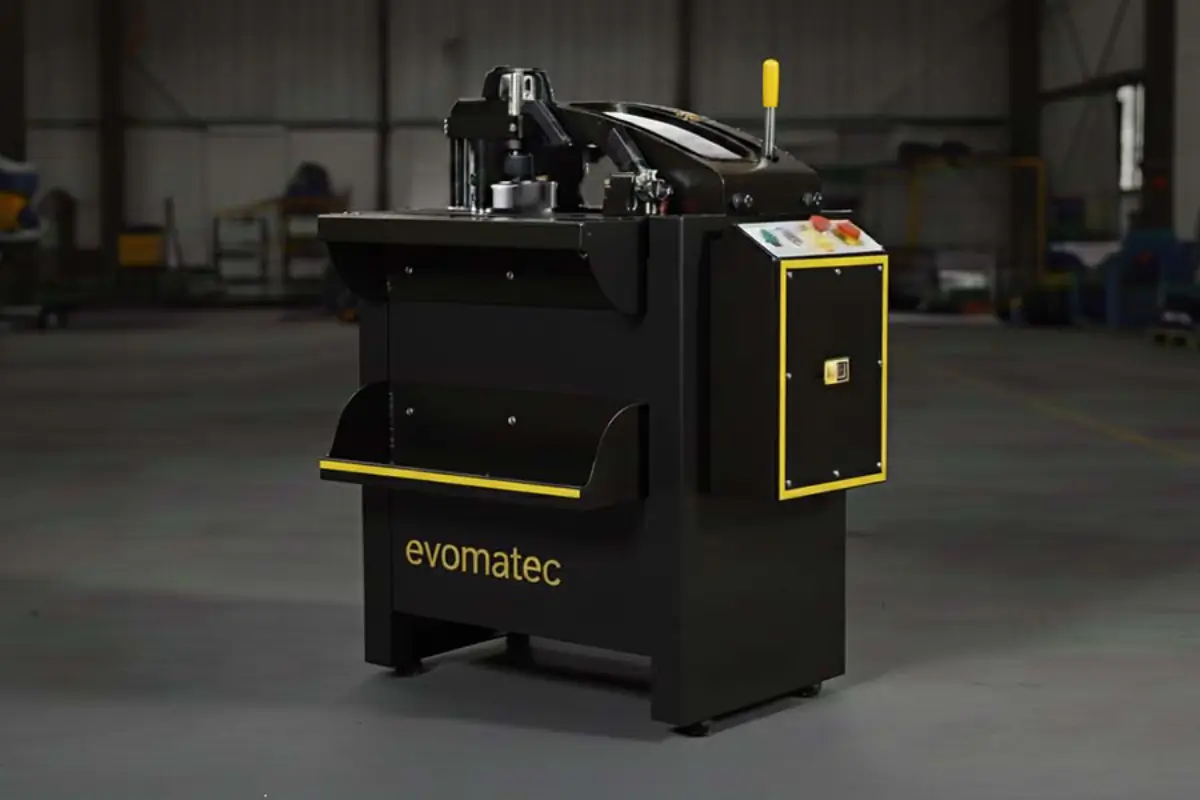

The EVOP II aluminium profile end milling machine is specifically designed for the precise machining of aluminium profile ends.
It ensures accurate, burr-free, and perfectly aligned end surfaces that create stable and clean connections between frame, door, and window profiles.

With its robust machine design, precision-engineered milling head, and pneumatic clamping system, the EVOP II delivers the ideal balance of stability, durability, and precision — making it the perfect solution for professional applications in industrial aluminium profile processing.

Precision at the Crucial Point — the Profile End

The EVOP II end milling machine guarantees dimensionally accurate and clean end machining directly at the profile’s edge.
Its stable milling system ensures smooth, consistent cutting motion and minimizes vibrations. The result is perfectly aligned, burr-free surfaces that fit seamlessly with adjoining profile parts.

Whether used in window, door, or façade construction, the EVOP II impresses with short cycle times, high repeat accuracy, and flawless surface quality across all common profile geometries.

High-Quality Clamping and Milling System

  • Vertical and horizontal pneumatic clamps ensure secure fixation of the profile during milling.

  • Precise end machining with high repeat accuracy and smooth surface finish.

  • Safety cover with integrated sensor guarantees safe operation in compliance with CE standards.

  • Quick-change tool station for efficient swapping of milling cutters.

  • Solid machine base ensures vibration-free operation and consistent precision.

This combination of mechanical rigidity, efficient clamping, and precision milling makes the EVOP II one of the most reliable machines in its class.

Technical Specifications

  • Motor Power: 1.1 kW (1.5 HP)

  • Spindle Speed: 3,000 rpm

  • Voltage: 230 V / 50–60 Hz

  • Milling Head Diameter: 140 mm

  • Tool Holder: Ø 30 mm

  • Stroke: 160 mm

  • Maximum Milling Depth: 90 mm

  • Machine Dimensions: 850 × 620 × 1,230 mm

  • Weight: 65 kg

  • Optional Equipment: profile support, tool holder, optional cooling system

Advantages of the EVOP II Aluminium Profile End Milling Machine

  • Maximum Precision at Profile Ends: clean, burr-free surfaces for stable frame connections.

  • Universal Application: suitable for aluminium and plastic profiles of various shapes and dimensions.

  • Robust and Durable Construction: vibration-free performance, low maintenance, designed for continuous operation.

  • Ergonomic and Safe: safety cover with sensor control, compact design, user-friendly operation.

  • CE Certified and Energy Efficient: complies with EU safety standards, low power consumption.

  • Ideal for Series Production: consistent quality and high productivity in continuous use.

Typical Applications

  • Window Manufacturing: precise milling of frame and sash profiles for perfect corner joints.

  • Door Production: clean end machining of aluminium profiles for frames and locking components.

  • Façade Construction: accurately milled ends on support and cover profiles for tight, stable assemblies.

  • Metal and Industrial Construction: precision end machining of profiles for mounting and system integration.

Efficiency and Process Reliability

The EVOP II offers the perfect balance of productivity, precision, and safety.
Its powerful motor, reliable pneumatic clamping, and compact structure allow efficient operation while maintaining excellent surface quality.
The optional cooling system protects the tooling and significantly extends its service life.

This makes the machine ideal for both small workshops and large industrial production lines focused on durability, long-term precision, and minimal maintenance.

Conclusion

The EVOP II aluminium profile end milling machine stands for ultimate precision at the most critical point of machining — the profile end.
It combines stability, accuracy, and user comfort in one compact, energy-efficient system.

Whether in window, door, or façade manufacturing, the EVOP II guarantees accurate results, cost-effective processes, and a long-lasting solution for professional aluminium profile processing.

EVOMATEC – Machinery for Precision Aluminium Profile Processing
