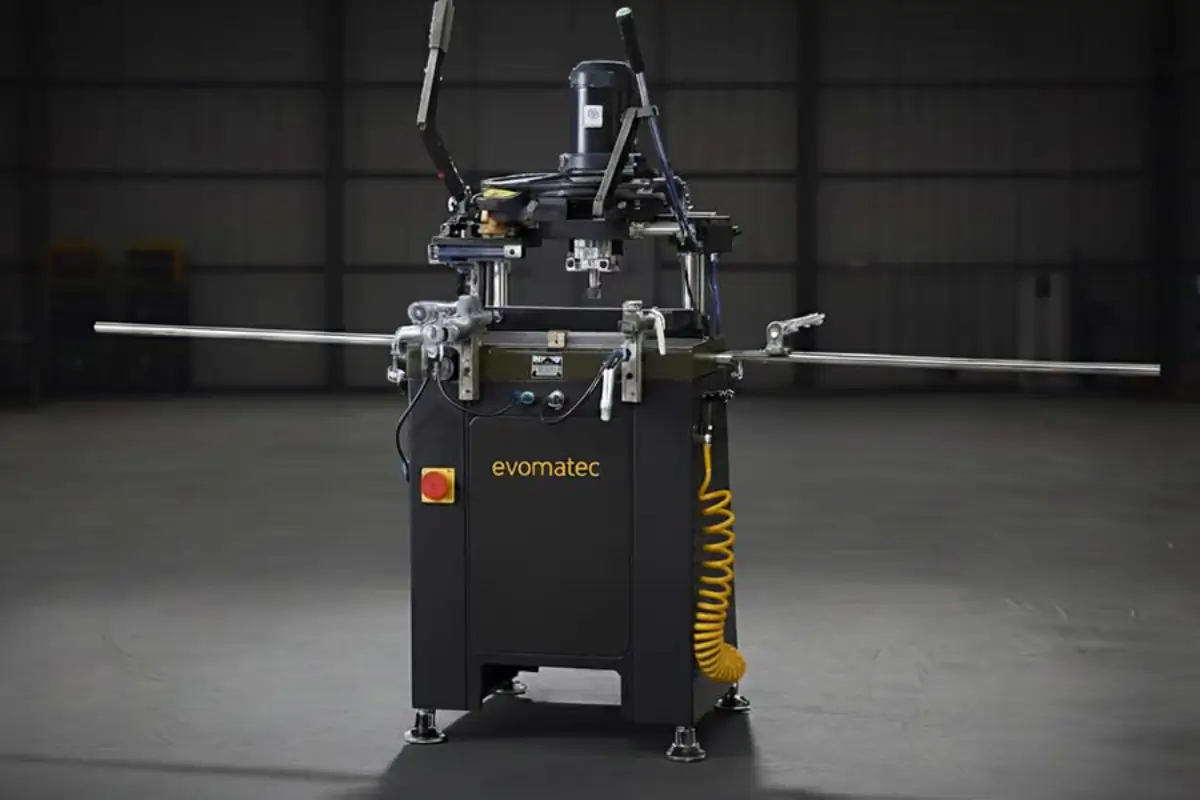

COPY ROUTER FOR ALUMINIUM PROFILES – EVOCOPY GI

Precision, Versatility, and Efficiency in Professional Aluminium Profile Processing

High-Precision Copy Router for Aluminium Profiles in Industrial Applications

The EVOCOPY GI copy router for aluminium profiles is engineered for the precise milling, drilling, and slotting of aluminium and aluminium profile systems.
Thanks to its robust mechanical structure, precision-guided template system, and pneumatic clamping mechanism, it guarantees millimetre-accurate results with outstanding speed and reliability.

The EVOCOPY GI is the ideal solution for manufacturers of windows, doors, and façades who rely on repeatable accuracy, premium quality, and efficiency in aluminium profile machining.

Precision Milling and Drilling for Aluminium Profiles

This professional copy router is perfectly suited for handle, lock, hinge, drainage, and fastening operations.
With its precision milling control and mechanically guided copy unit, the EVOCOPY GI produces perfectly replicated openings and grooves — free of burrs and dimensional deviations.

Its accurate X-, Y-, and Z-axis control combined with constant spindle speed ensures smooth surface finishes and perfect fit, even for complex profile geometries.

Exact Copying Function with Template Guidance

The integrated template guide allows the precise replication of various shapes, slots, and openings.
A pneumatic clamping system securely holds the workpiece in place throughout the entire milling process.
The built-in cooling system maintains controlled temperatures, protecting both the cutting tools and the profile material while ensuring clean, burr-free surface finishes.

This combination of mechanical stability, pneumatic control, and cooling technology ensures consistently high machining quality — ideal for demanding aluminium and plastic profile applications.

Technical Specifications

  • Motor Power: 1.1 kW (1.5 HP) | Spindle Speed: 3,000 rpm

  • Milling Spindle Speed: 11,500 – 14,000 rpm

  • Cutter Diameter: 5 mm (standard) | 8 mm (optional)

  • Milling Travel (X/Y/Z): 250 / 110 / 115 mm

  • Air Pressure: 6–8 bar | Air Consumption: 5 L/min

  • Clamping System: pneumatic, vertical and horizontal

  • Cooling System: integrated for controlled heat dissipation

  • Profile Stop and Measuring Gauge: included

  • Machine Dimensions: 2,540 × 730 × 1,450 mm

  • Machine Weight: approx. 103 kg

Advantages of the EVOCOPY GI Copy Router

  • Maximum Precision: Advanced guiding systems guarantee accurate and repeatable machining results.

  • Versatile Application Range: Ideal for handle, lock, hinge, drainage, and mounting operations.

  • Robust Design: Heavy-duty frame minimizes vibration and ensures smooth operation.

  • Superior Surface Finish: Clean, burr-free results even on delicate profiles.

  • Energy Efficient & Low Maintenance: Minimal air consumption, long-lasting components, automatic lubrication.

  • CE Certified: Complies with all European safety standards for industrial continuous operation.

Typical Applications

  • Window Production: Milling of handle, lock, and hinge openings in sash and frame profiles.

  • Door Manufacturing: Precise machining of jamb, locking, and hinge sections.

  • Façade Construction: Milling of drainage and installation holes in mullion-transom systems.

  • Metal and Lightweight Fabrication: Creation of functional and fastening openings.

  • Custom Profile Fabrication: Adjustable templates and milling strategies for specialized applications.

Quality, Ease of Use, and Durability

The EVOCOPY GI impresses with its ergonomic control layout, accessible interface, and precise manual handling.
The stable cast base minimizes vibration, extends tool life, and enhances overall machining quality.
Its compact design, easy tool change, and reliable pneumatic operation make it the ideal solution for workshops and production facilities of all sizes.

Conclusion

The EVOCOPY GI copy router stands for industrial precision, versatility, and reliability in the machining of aluminium and plastic profiles.
It combines a rugged mechanical design, high-precision guiding technology, and user-friendly operation in a compact, CE-certified system.

Whether in window, door, or façade production, the EVOCOPY GI guarantees clean, accurate, and burr-free milling results — delivering high productivity with minimal maintenance.

EVOMATEC – Machinery for Precision Aluminium Profile Processing
