MANUAL END MILLING MACHINE FOR PVC PLASTIC PROFILES EVOP II

Manual End Milling Machine for PVC Plastic Profiles EVOP II – Precision Finishing for Mullion, Transom, and Intermediate Profiles

Precise End Processing for Profile Connections in Window and Door Manufacturing

Accurate Finishing for Window and Door Profile Assemblies

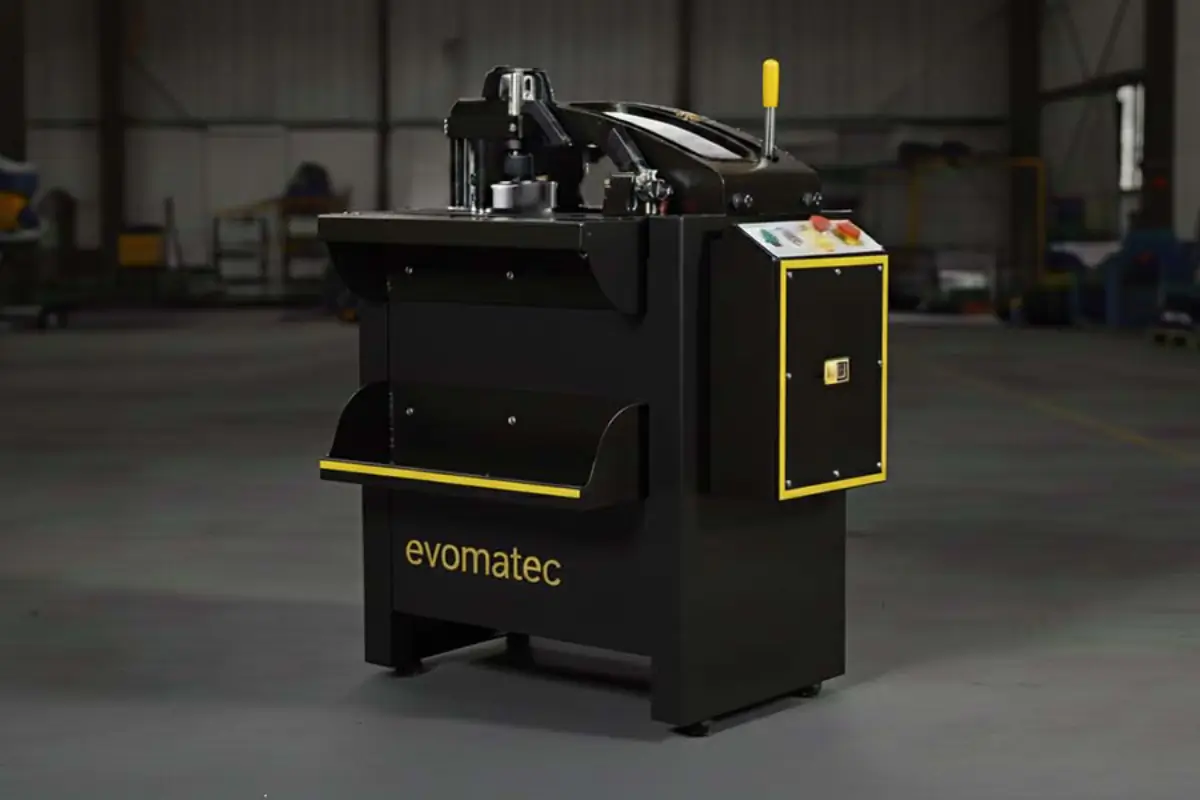

The manual end milling machine EVOP II from Evomatec is specifically designed for the final machining of PVC and plastic profiles used in professional window, door, and façade construction.
This machine allows for accurate milling and notching of transom, mullion, and intermediate profiles—an essential process for precise, stable, and tight connections in modern window and door systems.

With its robust structure, high-precision milling spindle, and pneumatic clamping system, the EVOP II delivers maximum stability, dimensional accuracy, and repeatability.
Whether frame, sash, or coupling profiles—the EVOP II ensures smooth, burr-free end surfaces and perfect fits for subsequent welding or screwing operations.

Manual End Milling and Notching with Industrial Precision

The EVOP II is the ideal solution for manual milling and notching of profile ends made of PVC or plastic.
The workpiece is pneumatically clamped for vibration-free fixation, allowing the operator to guide the milling tool precisely along the profile edge to create notches, miters, pocket millings, or contour cuts.

By using interchangeable milling cutters of various diameters and shapes, the machine can be adapted to different profile geometries, wall thicknesses, and connection systems—perfect for mullion and transom joints requiring exceptional accuracy.

Technical Specifications of the EVOP II End Milling Machine

Operation: Manual
Motor Power: 1.1 kW (1.5 HP)
Spindle Speed: 3,000 rpm
Voltage: 230 V / 50–60 Hz
Milling Head Diameter: 140 mm
Tool Bore: 30 mm
Stroke: 160 mm
Milling Depth: 90 mm
Air Pressure: 6–8 bar
Dimensions: 850 × 620 × 1230 mm
Weight: 65 kg
Features: Pneumatic clamping, profile support table, tool holder, protective cover with safety switch

Advantages of the EVOP II End Milling Machine for PVC and Plastic Profiles

Accurate Finishing for Mullion, Transom, and Intermediate Profiles
The EVOP II delivers precise milling results for post and transom connections—ensuring tight, durable, and stable joints in window and door construction.
Flexible Adaptation to Various Profile Shapes
With adjustable milling depth and interchangeable tools, the EVOP II handles different frame, sash, and mullion geometries with perfect precision.
Secure Pneumatic Clamping for Consistent Quality
The pneumatic clamping system ensures firm fixation without vibration, guaranteeing accurate, repeatable results.
Manual Control for Maximum Operator Oversight
The operator retains full control over feed rate, speed, and depth, making it ideal for custom applications, small batches, or specialty profiles.
Energy-Efficient and Low-Maintenance
Designed with minimal air consumption and durable components, the EVOP II operates economically, reliably, and with minimal maintenance—perfect for daily industrial use.
CE-Certified Safety System
Equipped with a protective hood, emergency stop, and pneumatic pressure monitoring, the EVOP II fully complies with European safety standards for plastic machining.

Applications in the Construction Industry

The EVOP II is the ideal solution for precise end finishing of PVC and plastic profiles across the entire window, door, and façade manufacturing sector.

Typical Applications:

Notching of mullion profiles for stable frame connections
End milling of transom and intermediate profiles before welding
Machining of coupling and cross profiles for assembly alignment
Post-processing of welded profile ends
Milling of frame and sash joints for tight sealing surfaces

Integration into Modern Production Lines

Combined with miter saws for plastic profiles, automatic welding machines, or copy routers for lock and handle openings, the EVOP II becomes part of a seamless production line.
It perfectly complements cutting and welding operations by preparing profile ends precisely, ensuring dimensional accuracy, stability, and airtight connections during final assembly.

Cost Efficiency and Precision in One System

The EVOP II is ideal for workshops and manufacturers seeking high-quality results at controlled costs.
Its manual operation provides flexibility and low maintenance, while its industrial-grade accuracy ensures excellent fit and finish—especially for transom, mullion, and coupling profiles where precision is critical.

Conclusion – EVOP II: Compact End Milling Machine for Perfect Profile Connections

The manual end milling machine EVOP II from Evomatec stands for precision, durability, and versatility in machining PVC and plastic profiles.
It is the ideal solution for notching, end milling, and trimming mullion, transom, and intermediate profiles in window, door, and façade manufacturing.

With its sturdy construction, accurate milling system, and reliable pneumatic clamping, it delivers the perfect balance of flexibility and industrial performance—ensuring flawless, high-quality connections in every project.
