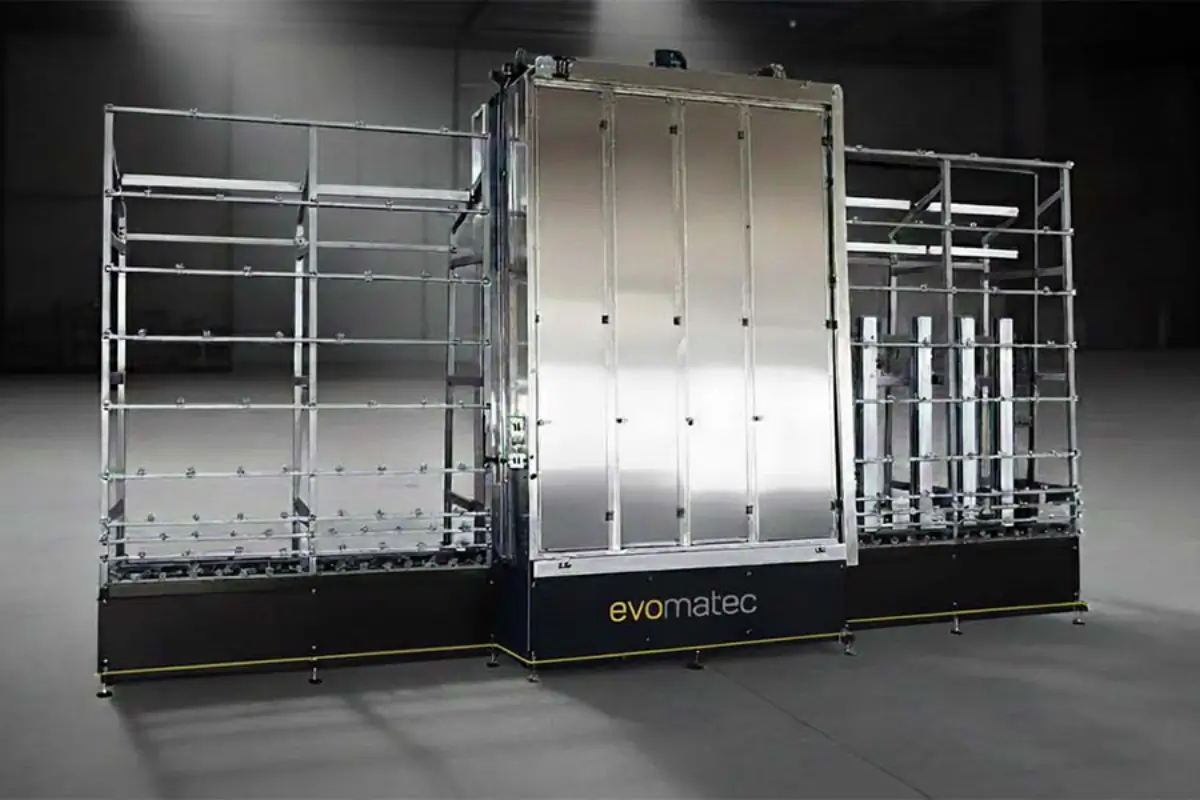

VERTICAL GLASS WASHING MACHINE EVOGLAS 1700

Vertical Glass Washing Machine EVOGLAS 1700 – Precision Cleaning and Drying for Flat and Insulating Glass

High-Performance Glass Washing Machine for Industrial Glass Processing

The vertical glass washing machine EVOGLAS 1700 from the EVOMATEC EVOGLAS series is specially engineered for energy-efficient, precise, and gentle washing and drying of flat glass, insulating glass, and architectural glass.
This high-performance system combines German engineering, a robust steel frame, and advanced control technology into a fully industrial solution for professional glass processing.

With high-grade stainless steel components, vibration-free mechanics, and intelligent automation, the EVOGLAS series ensures maximum reliability, durability, and cleaning quality — ideal for glass manufacturers in window, door, façade, furniture, and insulating glass production.

Technical Features and Performance Data

Precision, Efficiency, and Industrial Quality

Working widths: 1300 mm – 2500 mm
Glass thickness: 3 – 10 mm
Maximum glass size: 2500 × 3210 mm
Feed speed: 3 – 10 m/min (infinitely adjustable)
Power consumption: 12 – 21 kW (depending on model)
Voltage: 380 V / 3 Phases / 50 Hz
Total weight: 1100 – 1850 kg

These specifications make the EVOGLAS 1700 one of the most powerful vertical glass washing machines in its class — designed for industrial multi-shift operation with consistently high process quality.

Main Features of the EVOGLAS Series

Stainless Steel Washing Cabin and Robust Construction

Full stainless steel design (AISI 304): Resistant to corrosion, chemicals, and lime buildup
Vibration-free operation: Heavy-duty steel frame for quiet, stable performance
Brush roller system: 4–6 soft polyurethane brushes for float, patterned, safety, and Low-E glass
EPDM separation zones: Clear separation between pre-wash, main wash, and rinse areas
Warm water cleaning system: Effectively removes dust, grease, oil, and mineral residues
Sound-insulated drying unit: Ensures streak-free and dry glass surfaces
Infinitely variable feed speed: Automatically adapts to glass thickness and coating
Automatic water supply with float valve: Maintains constant water level for consistent cleaning results
CE-certified electrical system: Components by Siemens, Schneider Electric, Lenze, and Omron
Powder-coated frame structure: Provides extra protection against corrosion and moisture
Independent brush motors (for >2500 mm width): Maximum cleaning efficiency for large glass sheets

Control System and Industrial Equipment

Precision and Automation at the Highest Level

The EVOGLAS 1700 is controlled via a modern PLC system with touch display.
All parameters — brush speed, water temperature, air pressure, and feed rate — are individually adjustable and stored automatically for recurring production batches.

Multi-zone control: Separate management of washing, rinsing, and drying areas
Frequency-controlled drives (Lenze, Germany): Precise speed control for brush motors
Sensor monitoring (Pepperl + Fuchs, Germany): Accurate glass detection during all stages
Automatic glass thickness adjustment: Maintains optimal brush distance for every glass type
Energy-optimized pumps and blowers: Minimized power consumption with maximum performance
Remote maintenance via Ethernet: Real-time diagnostics and software updates

Industrial Components

Premium European Parts for Maximum Reliability

EVOMATEC uses only European-brand components to guarantee operational safety and long service life:

Lenze (Germany): Frequency inverters and motion control
Schneider Electric (Germany): Electrical automation systems
Pepperl + Fuchs (Germany): Precision sensors
Stainless steel AISI 304: Water tanks, piping, filters – rust-free, durable, and hygienic

These premium components ensure consistent washing and drying quality, even under demanding industrial conditions.

Energy Efficiency and Maintenance

Optimized for Low Operating Costs and Long Lifespan

Thermostat-controlled warm water system: Maintains high cleaning efficiency with reduced energy use
Energy-efficient fans: Quiet operation with low electricity consumption
Modular design: Easy access to brushes, filters, and nozzles for fast maintenance
Reduced downtime: Quick-change components and service doors with safety locks
Eco and standby modes: Intelligent pressure and airflow management during idle operation

Extensions and Options

Panel-Press / Role-Press Modules: Integration into insulating glass production lines
Gold Edition: High-performance variant with upgraded 11 kW blower system
Additional drying unit: Ideal for coated or textured glass
Double-sided washing and drying zones: Increased throughput for high-volume production
Automatic water filtration systems: Reduce maintenance intervals and water consumption

Application Areas

The EVOGLAS 1700 vertical glass washing machine is ideal for:

Insulating glass production (double / triple glazing)
Façade and architectural glass manufacturing
Window and door fabrication (aluminum / PVC)
Furniture and decorative glass processing
Glass coating and finishing lines
Preparation of float, laminated, and safety glass

Whether used as a stand-alone unit or integrated into a fully automated production line, the EVOGLAS 1700 ensures flawless cleaning, perfect drying, and process stability across all environments.

Advantages of the EVOMATEC EVOGLAS Series

Full stainless steel construction: Durable, corrosion-free, and hygienic
Scratch-free cleaning: Gentle polyurethane and nylon brushes
Energy-efficient performance: Low power consumption, high output
High process speed: Precise synchronization and stable feed control
Easy maintenance: Modular structure and accessible components
European quality: Maximum reliability and safety
CE certification: Compliant with international machinery standards
Flexible configuration: Left- or right-hand washing direction selectable
Compatible with all glass types: Float, Low-E, patterned, safety, and architectural glass

Conclusion

The EVOMATEC EVOGLAS series represents technological innovation, precision, and efficiency in industrial glass cleaning.
With its robust design, energy-optimized system, and advanced automation, it delivers a long-lasting, cost-effective, and CE-compliant solution for modern glass manufacturers.

Whether in insulating glass production, façade construction, or glass finishing, the EVOGLAS 1700 guarantees perfect cleaning results, minimal operating costs, and maximum reliability.

EVOMATEC EVOGLAS – Precision, Quality, and Durability in Glass Processing.
