AUTOMATIC MITRE SAW FOR WOOD PROFILES – EVOM IIH 500

INDUSTRIAL PRECISION, POWER AND EFFICIENCY IN WOOD PROFILE PROCESSING

PRECISE MITRE CUTS FOR THE HIGHEST REQUIREMENTS IN WOOD PROFILE MACHINING

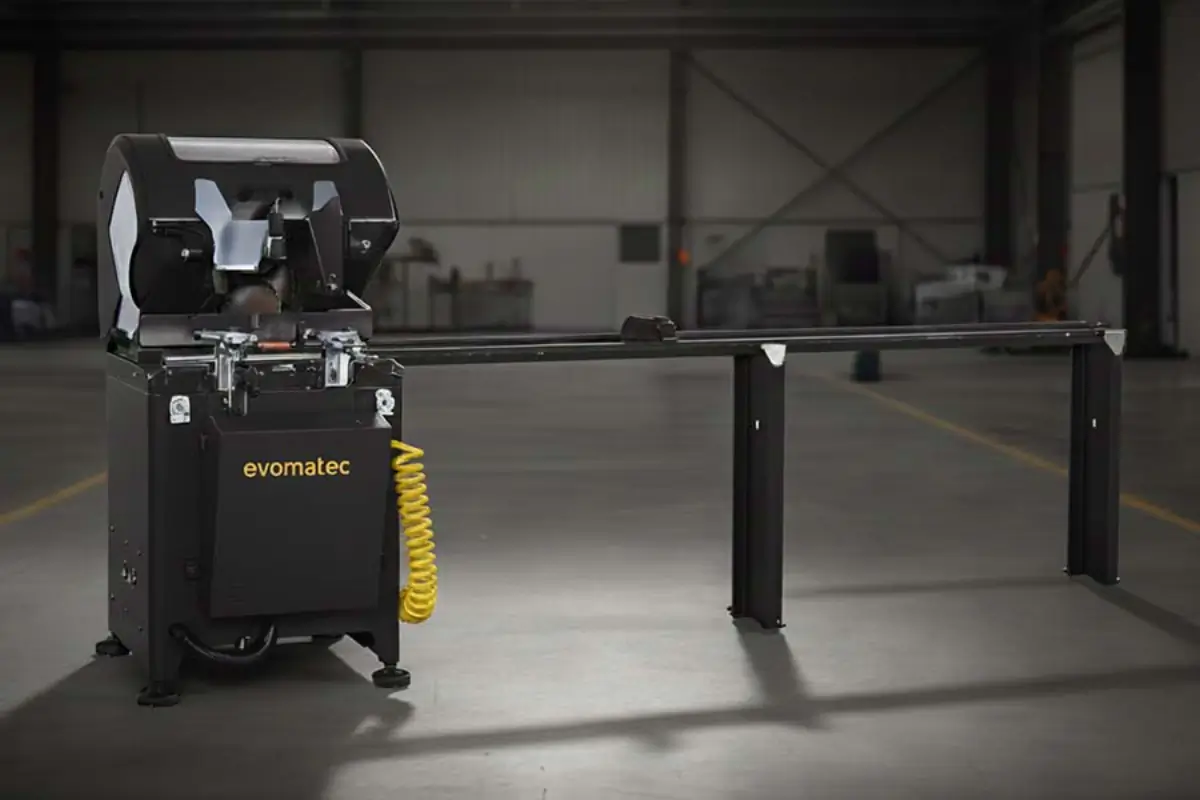

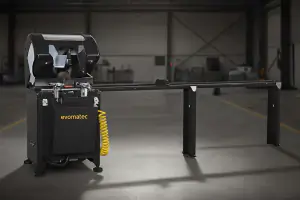

The automatic mitre saw for wood profiles EVOM IIH 500 has been specially developed for precise,low-tear and efficient cutting of wood and wood profiles. With its hydro-pneumatic feed technology,robust machine construction and a powerful 500 mm saw blade,it sets standards in cutting quality,productivity and reliability in industrial wood profile processing.

The EVOM IIH 500 combines modern drive technology,precise control and ergonomic operation in a compact machine concept – ideal for use in wood profile window production,in door manufacturing,in façade construction,in timber frame construction as well as in industrial series production.

HYDRO-PNEUMATIC TECHNOLOGY – PRECISION AND CONTROL PERFECTED

The hydro-pneumatic feed system ensures a smooth,controlled cutting motion,minimizes vibrations and supports a long service life of the saw blade. This produces clean,smooth cut surfaces with minimal tear-out – even with dense hardwoods,coated profiles or multi-layer wood-based materials.

With a variable cutting angle of –67.5° to +67.5° and fixed detent points at 0°,15°,22.5°,30°,45° and 67.5°,the EVOM IIH 500 is versatile – for exact mitre cuts,frame joints and wood profile cutting in any form.

The automatic cutting speed control adapts to the respective material and profile cross-section and enables consistently precise results – from single cuts to automated series production.

SAFETY AND OPERATING COMFORT TO INDUSTRIAL STANDARDS

For maximum occupational safety,the EVOM IIH 500 is equipped with a safety cover with sensor monitoring. The cutting process starts only when the cover is fully closed – a key advantage for operator protection,process reliability and clean cutting quality.

Pneumatic clamping cylinders fix the workpiece vertically and horizontally so that wood profiles are held securely and slip-free during cutting. This clamping system reduces profile movement,supports dimensional accuracy and enables repeatable mitre cuts across different wood profile types.

ROBUST DESIGN AND INDUSTRIAL EFFICIENCY

The robust machine construction of the EVOM IIH 500 ensures smooth running and stable precision in continuous operation. A powerful 4 kW motor drives the Ø 500 mm carbide-tipped saw blade – designed for high cutting performance in professional wood profile processing.

An integrated system to support clean cuts in wood processing contributes to process stability and helps keep cut surfaces uniform and high-quality. With an air pressure of 6–8 bar and a consumption of only 38 L/min,the machine operates energy-efficiently,low-maintenance and economically – ideal for daily industrial use.

TECHNICAL FEATURES

SAW BLADE DIAMETER Ø 500 mm carbide

SAW BLADE SPEED 2 347 rpm

MOTOR POWER 4 kW

VOLTAGE FREQUENCY 400 V 50 Hz

CUTTING ANGLE –67.5° to +67.5° fixed at 0°,15°,22.5°,30°,45°,67.5°

FEED SYSTEM hydro-pneumatic infinitely adjustable

CLAMPING SYSTEM vertical plus horizontal pneumatic clamping

AIR PRESSURE 6–8 bar consumption 38 L/min

MACHINE DIMENSIONS 3 910 × 1 160 × 1 480 mm

WEIGHT 278 kg

ADVANTAGES OF THE AUTOMATIC MITRE SAW EVOM IIH 500

Hydro-pneumatic feed for smooth,controlled cutting motion

Large cutting range with variable mitre angles up to ± 67.5°

Pneumatic clamping technology for vibration-free profile fixation

CE-compliant safety systems with sensor control

Robust construction for smooth running and long service life

Energy-efficient,low-maintenance operation in continuous industrial use

Compact,operator-friendly design for workshop and production

TYPICAL APPLICATIONS

Window and door production from wood profiles

Timber frame construction and mitre joints in frame manufacturing

Façade and structural elements made from wood profiles

Series production of wood profiles for industry and architecture

Technical precision cutting in interior finishing and lightweight construction

CONCLUSION

The EVOM IIH 500 automatic mitre saw for wood profiles stands for industrial precision,maximum efficiency and high operational safety. With hydro-pneumatic cutting feed,precise angle adjustment and pneumatic clamping technology,it guarantees exact,repeatable cuts with high productivity.

This machine is the optimal solution for manufacturers and industrial companies that focus on quality,reliability and cost-effectiveness. It combines innovative cutting technology with robust construction – developed for professional wood profile cutting in continuous operation.
