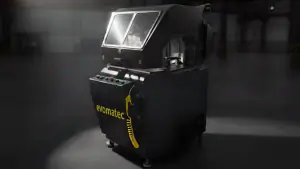

AUTOMATIC MITRE SAW FOR WOOD PROFILES EVOM IIH 600 ECO

‹ ›

AUTOMATIC WOOD MITRE SAW FOR WOOD PROFILES – EVOM IIH 600 ECO

INDUSTRIAL CUTTING TECHNOLOGY FOR PRECISE AND EFFICIENT CUTTING OF WOOD PROFILES

INDUSTRIAL WOOD PROFILE PROCESSING WITH CLEAN,REPEATABLE CUTS

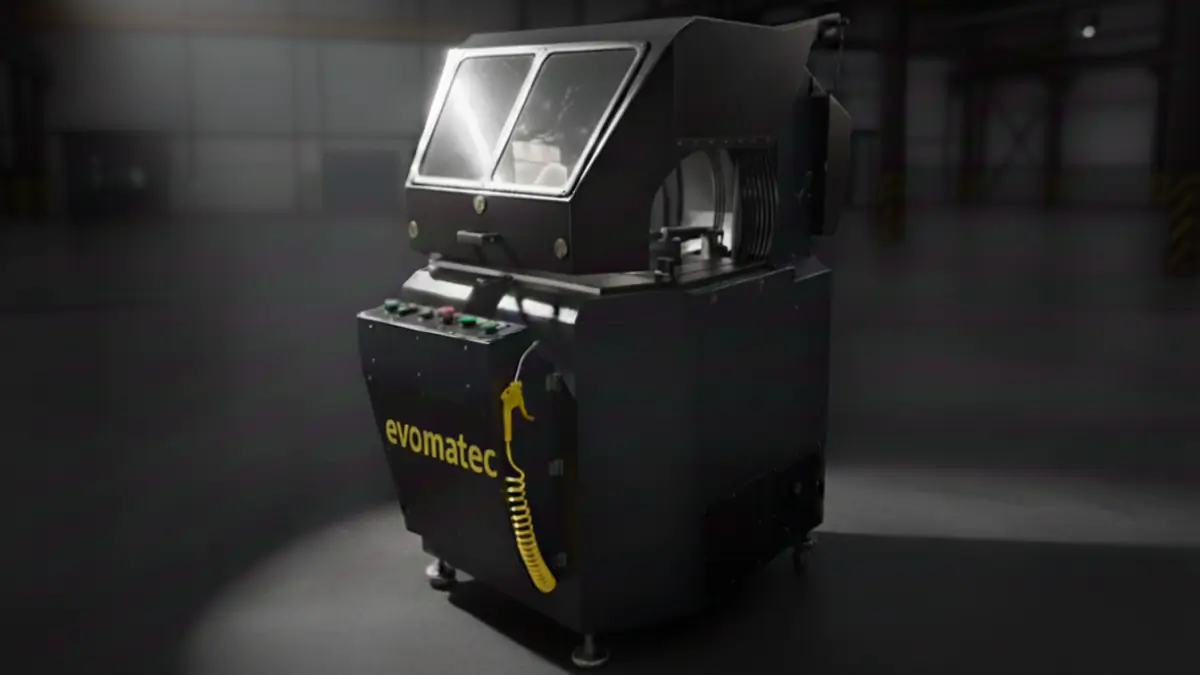

The EVOM IIH 600 ECO automatic wood profile cutting machine is a robust industrial mitre saw for wood,designed for highly precise,clean and low-tear cuts in wood profiles and wood-based profile materials. With its Ø 600 mm carbide-tipped saw blade for wood,the hydro-pneumatic feed unit and the torsion-resistant machine housing,the machine ensures excellent stability,reproducible cutting accuracy and a long service life – ideal for the production of profiles in wood window construction,wood door manufacturing,wood façade construction as well as for structural and frame systems.

By combining advanced cutting technology,energy-efficient drive technology and a heavy machine frame,the EVOM IIH 600 ECO becomes a central system component in modern wood production lines. It is the preferred solution for manufacturers who demand maximum precision,reliability and productivity in wood profile processing.

HYDRO-PNEUMATIC FEED – CONTROLLED,SMOOTH AND TOOL-FRIENDLY

The hydro-pneumatic feed system ensures a smooth,controlled saw entry and continuously adjusts the cutting speed to profile geometry,cross-section and material properties. This controlled motion reduces vibrations,protects the saw blade and helps minimize scrap and material losses – a clear advantage for cost-effective series production.

The generous mitre range of −22.5° to +22.5° with fixed stops at 0°,15°,22.5°,30° and 45° offers the operator high flexibility for angle cuts,frame constructions and special profile solutions in production.

Thanks to automatically controlled cutting speed and intelligent motion control,the EVOM IIH 600 ECO achieves consistent,reproducible cutting quality – even with demanding wood profiles,coated profiles or multi-layer wood-based materials.

SAFETY AND ERGONOMICS FOR PROFESSIONAL INDUSTRIAL USE

The EVOM IIH 600 ECO is engineered to meet industrial safety requirements. A closed safety cover with integrated monitoring sensors prevents machine operation when the hood is open and ensures maximum operator protection throughout the entire cutting cycle.

Pneumatically actuated vertical and horizontal clamping cylinders hold the workpiece securely in position and prevent slipping or vibration. Combined with mitre adjustment,hydro-pneumatic feed and controlled cutting speed,this results in consistently high and repeatable cutting quality – even in multi-shift operation.

ROBUST CONSTRUCTION AND ENERGY-EFFICIENT PERFORMANCE

The massive machine construction of the EVOM IIH 600 ECO ensures low-vibration running and long-term dimensional stability,even under continuous industrial loads. A powerful 3 kW motor drives the Ø 600 mm carbide-tipped saw blade for wood and provides sufficient power reserves for dense woods,thick-walled wood profiles and wood-based materials.

An integrated system to support clean cuts reduces friction and supports uniform,high-quality cut surfaces. With an operating pressure of 6–8 bar and an air consumption of only 58 L/min,the EVOM IIH 600 ECO operates energy-efficiently,quietly and with low maintenance – optimal for continuous production operation.

TECHNICAL DATA

PERFORMANCE DATA

SAW BLADE DIAMETER Ø 600 mm carbide

SPINDLE SPEED 2,350 rpm

MOTOR POWER 3 kW

VOLTAGE FREQUENCY 400 V 50 Hz

CUTTING AND FEED SYSTEM

CUTTING ANGLE RANGE −22.5° to +22.5° with fixed stops at 0°,15°,22.5°,30°,45°

FEED SYSTEM hydro-pneumatic automatically controlled

CLAMPING SYSTEM pneumatic vertical and horizontal cylinders

COMPRESSED AIR SUPPLY AND DIMENSIONS

AIR PRESSURE 6–8 bar

AIR CONSUMPTION 58 L/min

MACHINE DIMENSIONS 1,000 × 1,225 × 1,700 mm

MACHINE WEIGHT 300 kg

KEY ADVANTAGES OF THE AUTOMATIC WOOD MITRE SAW EVOM IIH 600 ECO

PRECISION AND PROCESS CONTROL

Hydro-pneumatic feed unit for smooth and controlled saw feed

Large angle range of ±22.5° for flexible mitre and special cuts

Consistent cutting quality through automatically controlled cutting speed

STABILITY AND SAFETY

Pneumatic vertical and horizontal clamping systems for vibration-free workpiece clamping

Safety cover with sensor monitoring for high operator protection

Solid machine frame for long-term rigidity and precise cutting geometry

EFFICIENCY AND PRODUCTION RELIABILITY

Economical operation thanks to low air consumption and efficient drive technology

Maintenance-friendly layout with robust industrial-grade components

Ideal for series and batch production with high repeatability and short cycle times

TYPICAL APPLICATION AREAS

Window and door production with wood profiles and frame systems

Façade and structural elements made from wood profiles

Structural and system profile manufacturing for architecture and interior finishing

Series production of wood profile components for industrial applications

Precision cutting for timber frame construction,furniture industry and technical interior work

Whether as a stand-alone saw in the workshop or integrated into automated production lines – the EVOM IIH 600 ECO delivers highly precise,reproducible results and supports maximum productivity.

CONCLUSION – EVOM IIH 600 ECO AS AN EFFICIENT CUTTING SOLUTION FOR WOOD PROFILES

The EVOM IIH 600 ECO automatic wood mitre saw stands for industrial precision,high efficiency and long-term operational reliability. With its powerful 3 kW drive,hydro-pneumatic feed technology and pneumatic clamping system,it enables clean,dimensionally accurate and repeatable cuts in wood profiles for a wide range of applications.

For manufacturers in the window,door and façade industries as well as operations in frame and system production seeking a technologically advanced,energy-efficient and high-performance cutting solution,the EVOM IIH 600 ECO is a strong choice.

EVOMATEC – MACHINES FOR HIGH-PRECISION PROCESSING OF WOOD PROFILES
