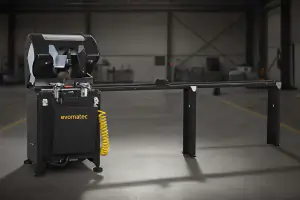

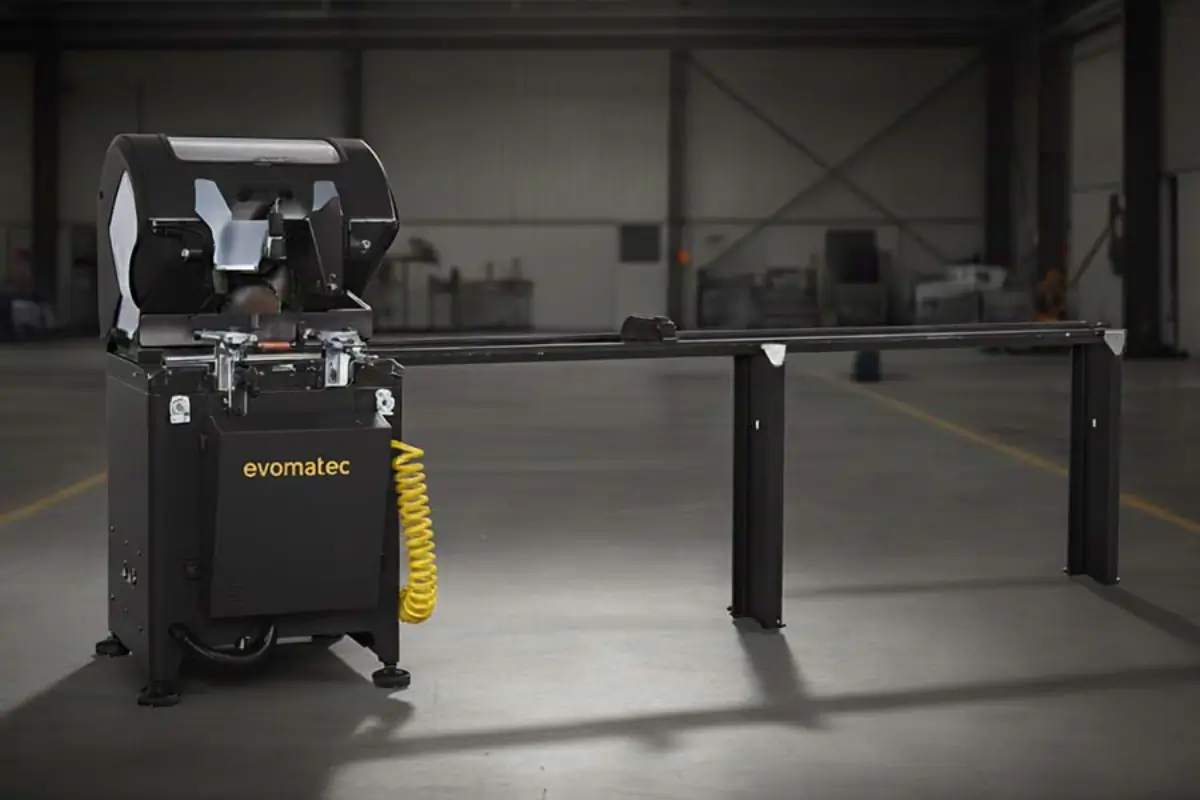

AUTOMATIC MITRE SAW FOR WOOD EVOM HII 420

‹ ›

Automatic Mitre Saw for Wood and Wood Profiles – EVOM HII 420

Precision, Performance and Efficiency in Modern Wood Profile Processing

The EVOM HII 420 is an automatic mitre saw for wood and mitre saw for wood profiles, developed for precise, low-tear-out and highly repeatable cuts in industrial production environments. By combining hydro-pneumatic feed technology, robust cast construction and intelligent control, the machine unites high cutting quality, speed and process reliability in a dependable industrial concept. This makes it a powerful solution for companies that require maximum dimensional accuracy and stable cycle times in the series production of wooden frames, door profiles, façade elements and technical wood structures.

Maximum Cutting Precision Through Hydro-Pneumatic Technology

The hydro-pneumatic cutting feed ensures a smooth, controlled cutting motion and supports consistently stable machine running. This technology reduces vibrations to a minimum, extends tool life and enables clean, smooth cut edges with minimal post-processing. The automatic feed control adjusts cutting speed to the material, profile geometry and surface structure, so even coated, lacquered or laminated wood profiles can be processed safely and reproducibly.

Extended Cutting Angle Range for Flexible Mitre and Angle Cuts

The wide cutting angle range of –67.5° to +67.5° with fixed positions at 0°, 15°, 22.5°, 30°, 45° and 67.5° provides maximum flexibility for frame production, moulding processing and demanding profile constructions. This allows classic standard mitres as well as special angles to be implemented efficiently, making the EVOM HII 420 the ideal industrial mitre saw for wood for workshop and production line use.

Intelligent Control and Safety for Industrial Operation

The EVOM HII 420 is designed for professional continuous operation and features a safety cover with sensor monitoring that reliably protects the operator throughout the entire cutting cycle. A pneumatic vertical and horizontal clamping system fixes the workpiece securely, prevents movement and supports consistently clean cut surfaces. The automatic feed control delivers reproducible results with constant precision and creates a stable basis for economical series production.

Clean Working Area Through Integrated Extraction and Chip Management

An integrated extraction and chip management system supports a clean working area, reduces dust and chip build-up and contributes to consistent cutting quality. The extraction unit is designed ready for connection, allowing the EVOM HII 420 to be seamlessly integrated into existing production structures.

Robust Construction and Energy-Efficient Performance

The machine body made of vibration-damping cast steel ensures quiet, low-vibration operation and long-term dimensional stability even under high workload. A powerful 4 kW motor (5.5 HP) drives a Ø 420 mm carbide-tipped saw blade and provides high performance reserves for large wood profile cross-sections. With an air pressure of 6–8 bar and a consumption of only 38 L/min, the EVOM HII 420 operates energy-efficiently, quietly and with low maintenance requirements.

Technical Features of the EVOM HII 420

Performance Data

Saw blade diameter: Ø 420 mm (carbide-tipped)
Speed: 2 900 rpm
Motor power: 4 kW (5.5 HP)
Voltage / Frequency: 400 V / 50 Hz

Cutting and Feed System

Cutting angle: –67.5° to +67.5°, fixed at 0°, 15°, 22.5°, 30°, 45°, 67.5°
Feed system: hydro-pneumatic, continuously adjustable
Clamping devices: pneumatic – vertical and horizontal
Extraction and chip management: integrated
Extraction unit: ready for connection

Compressed Air Supply and Machine Dimensions

Air pressure: 6–8 bar | Consumption: 38 L/min
Machine dimensions: 3 860 × 1 080 × 1 460 mm
Weight: 225 kg

Key Benefits of the Automatic Mitre Saw for Wood Profiles

Automatic hydro-pneumatic feed for precise, low-tear-out cuts
Extended cutting range (–67.5° to +67.5°) for maximum flexibility
Ø 420 mm carbide-tipped saw blade for high cutting performance in wood profiles
Vertical and horizontal clamps for secure profile fixing and process stability
CE-certified safety systems in accordance with EU standards
Energy-efficient, low-maintenance drive for economical continuous operation
Compact, ergonomic design for workshop and production line
Durable industrial components for stable series production

Typical Applications in Wood Processing

The EVOM HII 420 is designed for professional cutting of wood profiles and wood components across a wide range of industrial applications. In window and door manufacturing, it enables precise mitre cuts for frames, sashes and casings. In façade construction, it delivers accurate cuts for wooden system and cover profiles. In interior finishing, it is ideal for clean cuts on mouldings, frames and visible components. In series production, it excels as an automated solution for consistently reproducible wood profile processing with high productivity.

Conclusion: EVOM HII 420 as an Efficient Cutting Solution for Wood Profiles

The EVOM HII 420 automatic mitre saw for wood profiles stands for industrial precision, high efficiency and long-term operational reliability. With its hydro-pneumatic cutting system, wide angle range and pneumatic clamping technology, it delivers clean, low-tear-out results with stable cycle times. For companies looking to buy a mitre saw and prioritizing productivity, dimensional accuracy and process reliability, the EVOM HII 420 is a technically clear and powerful benchmark.
