AUTOMATIC ROLLER CONVEYOR AS A FEEDING UNIT FOR MITRE SAWS EVOCON 3500 ECO

‹ ›

Automatic Roller Conveyor as a Feeding Unit for Miter Saws for Aluminium Profiles

Precise profile feeding for series cutting in profile processing

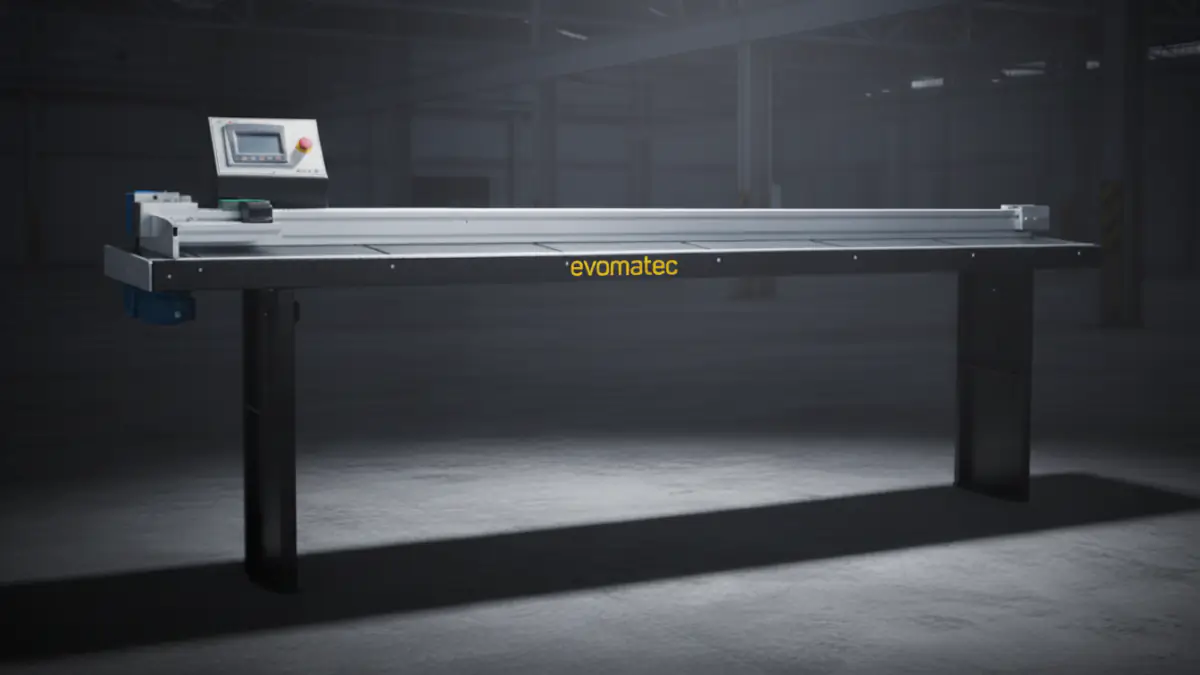

The automatic conveyor with roller track is a high-performance automatic feeding unit for cutting and processing profiles. As an automatic conveyor for miter saws, it ensures controlled, stable and repeatable feeding into the saw’s infeed area. This solution is ideal for professional cutting of aluminium profiles and is also suitable for material variants such as wood profiles, plastic profiles and PVC profiles when process-reliable feeding with high precision is required.

Why an automatic conveyor for miter saws and chop saws is essential

Constant material flow for precise cuts

An automatic conveyor for miter saws reduces manual interventions, stabilizes material flow and improves repeatability. In production lines, the automatic conveyor for chop saws can be integrated as a feeding unit to perform cuts more efficiently and consistently. Especially for variants such as an automatic conveyor for pull chop saws, the defined feed movement supports fast changeovers between orders and cutting programs.

Servo motor and linear guide for maximum positioning accuracy

For precise feed movements, the automatic conveyor for aluminium profiles is equipped with a servo motor and a robust linear guide. This creates controlled, backlash-free movements with high repeatability, a key advantage when cutting aluminium as well as when used as an automatic conveyor for wood, automatic conveyor for wood profiles, automatic conveyor for plastic and automatic conveyor for plastic profiles. Also as an automatic conveyor for PVC profiles, the combination of servo and linear guide enables stable, material-friendly feeding.

Digital Touch Panel Control Unit for quick setup

Intuitive operation and fast recipe changeover

Operation is carried out via a digital Touch Panel Control Unit. Feed parameters, programs and sequences can be set quickly. For series production, the integrated recipe management is particularly important because jobs can be stored securely and retrieved at any time with full reproducibility, a clear advantage for any automated cutting station.

Recipe management with manual input and Excel import

100 recipes can be saved manually

Up to 100 recipes can be entered and saved manually directly on the control unit. This is ideal for standard programs, common profile variants and recurring cutting lengths.

200 recipes can be imported via Excel file

In addition, up to 200 recipes can be imported via an Excel file. This reduces input errors, speeds up data transfer and simplifies the management of many programs, for example for different profiles, customer orders or series variants.

Optional barcode printer available

Labelling and traceability in the cutting process

For structured identification in production, the conveyor is optionally available with a barcode printer. This allows profiles to be clearly labelled directly in the process, orders to be assigned faster and workflows in production, installation and logistics to be made more efficient. Especially in series production and variant manufacturing, barcode labelling improves traceability and reduces mix-ups.

Technical data of the automatic roller conveyor

• Voltage / Frequency: 380 V 50 Hz
• Total power: 0.37 kW
• Air pressure: 6 to 8 bar
• Air consumption: 2 l min
• Max. profile width: 200 mm
• Machine width: 500 mm
• Machine height: 1400 mm
• Machine weight: 90 kg
• Roller conveyor length: 3500 mm

Applications: aluminium, wood, plastic and PVC profiles in production

As an automatic conveyor for aluminium, the feeding unit is ideal for window, door and façade construction as well as for industrial cutting lines. At the same time, the system can also be used as an automatic conveyor for wood when wooden trims, frame profiles or wood profiles need to be fed in a controlled manner into a miter saw or chop saw. For plastic applications, the conveyor is a reliable solution as an automatic conveyor for plastic, automatic conveyor for plastic profiles and in particular as an automatic conveyor for PVC profiles when uniform feeding and reproducible sequences are the main focus.
