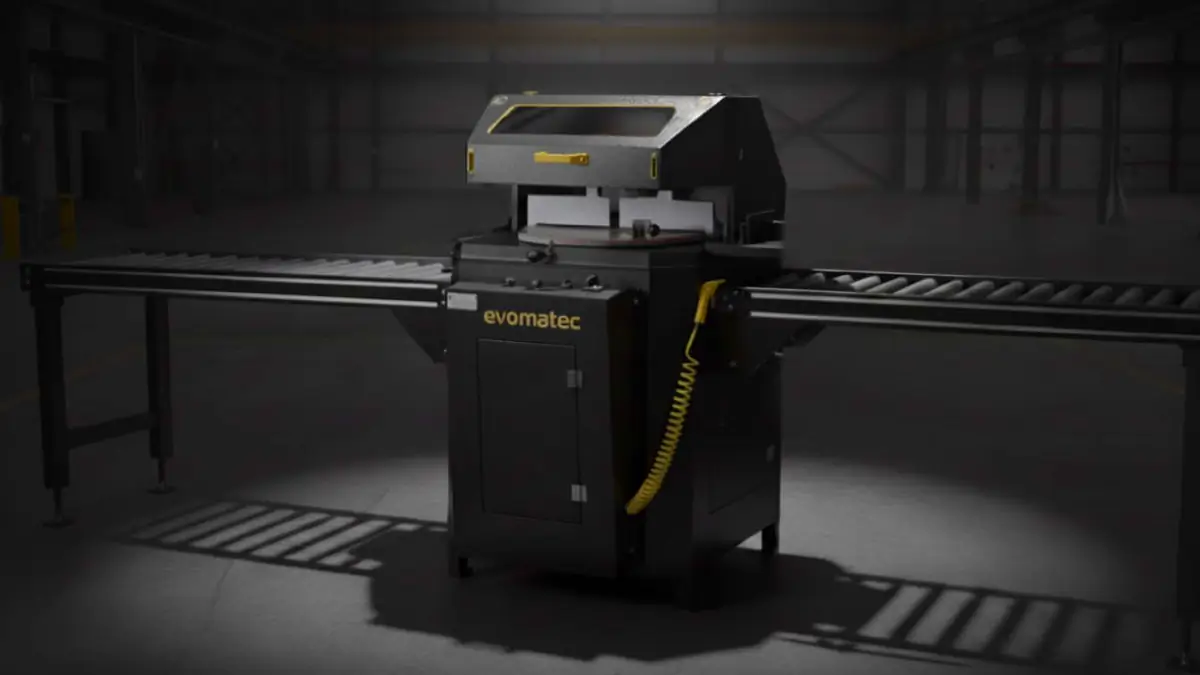

AUTOMATIC UP-CUT MITRE SAW FOR PLASTIC PROFILES EVOGP 450 ECO

‹ ›

Automatic Upcut Mitre Saw for PVC Profiles and Plastic Profiles

Precise profile cutting for window construction, door construction and façade construction

This automatic upcut mitre saw has been developed for professional cutting of PVC profiles and plastic profiles in industrial production. It enables clean, low-burr cuts, high repeatability and stable process reliability in workshop operation as well as in series production. Especially for recurring mitre cuts, the machine supports a consistent material flow and ensures consistently high manufacturing quality. The result is precisely fitting frames, clean corner joints and a professional end result in daily profile processing.

Drive concept: gear drive without belt drive or direct drive

The saw shaft drive is designed as a gear drive. The circular saw blade is not directly coupled to the electric motor and no belt or pulley system is used. This results in smooth running, stable power transmission and consistently high cutting quality for PVC profiles and plastic profiles. The robust, gear-guided design is engineered for continuous operation and is suitable for companies that expect reproducible results, reliable technology and a durable machine base.

Main features of the automatic mitre saw for PVC profiles

Angle range for mitre cutting in practice

The machine is designed for mitre cuts in the range from 45° through 90° to 45°, including all intermediate angles. This meets typical requirements in window construction, door construction and façade construction, where exact angles and repeatable cuts are crucial.

Fast, repeatable angle setting

For the standard angles 45° - 90° - 45°, fast and repeatable setting is achieved via a positioning pin. This reduces changeover time, keeps angle accuracy consistent and allows series cuts to be repeated reliably.

Feed, clamping technology and operating comfort

Adjustable feed speed for material-appropriate sawing

The feed speed is adjustable to saw PVC and plastic profiles in a material-appropriate manner. This improves the cut surface, reduces burr formation and ensures stable quality across different profile geometries.

Pneumatic clamping system for secure fixing

The pneumatic clamping system secures the profile safely and repeatably. Stable clamping reduces profile movement during the cut and supports dimensional accuracy as well as consistent quality in series cutting of PVC profiles and plastic profiles.

Saw blade and optional extensions

Carbide-tipped saw blade Ø 450 mm

The carbide-tipped saw blade with Ø 450 mm is designed for precise and long-lasting cutting performance. It supports consistent cut quality in daily use, especially for recurring mitre cuts.

Roller conveyor or feeder optionally available

A roller conveyor or a feeder is optionally available and is not included in the base price. The optional infeed unit simplifies the handling of long profiles, improves material flow and can significantly increase productivity in ongoing operation. Especially in series production for window construction and door construction, optimized profile handling ensures shorter cycle times and better ergonomics.

Typical applications in plastic profile processing

The automatic upcut mitre saw is suitable for precise cutting of PVC profiles and plastic profiles in window construction, door construction and façade construction. The combination of gear drive, pneumatic clamping technology and controlled feed ensures process-reliable cuts, short cycle times and convincing cut quality. This makes the machine a suitable solution for manufacturing companies that need a durable and repeatable mitre saw for series cutting, frame production and professional profile processing.
