HINGE MILLING MACHINE FOR WOODEN PROFILES EVO SLOT

Hinge Milling Machine for Wooden Profiles – EVO SLOT

Precision, Stability, and Efficiency in Milling Hinges, Locks, and Handle Openings for Wooden Doors and Window Frames

Professional Hinge Milling for Wood Processing

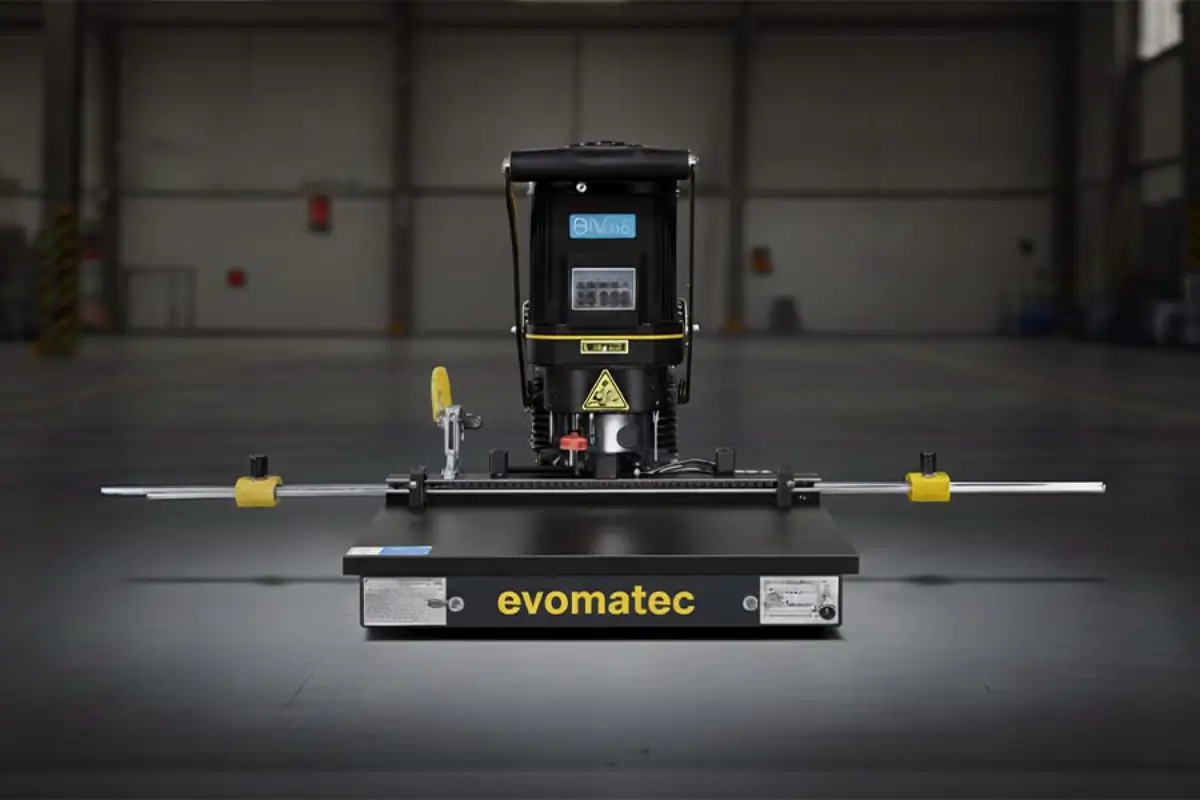

The EVO SLOT hinge milling machine for wooden profiles is a professional woodworking machine designed for the precise milling and drilling of hinges, locks, and handle openings.
With its solid construction, powerful motor, and ergonomic operation, it provides exceptional accuracy and repeatability — ideal for both small workshops and industrial production lines.

This hinge milling machine ensures clean milling edges, consistent cutting depths, and long-term surface precision, making it the perfect solution for wooden doors, windows, and solid wood profiles.

Maximum Precision in Hinge and Fitting Milling

The EVO SLOT hinge milling machine is engineered for the exact routing of hinge and fitting pockets.
A precision spring-pressure system ensures constant cutting depth, while the integrated measuring scale allows for accurate repeat cuts — even in series production, without the need for rework.

Thanks to its compact design and robust mechanical structure, the EVO SLOT delivers stable performance with low vibration.
It is ideal for carpentry workshops, wooden window production, furniture manufacturing, and other professional woodworking facilities where precision and quality are essential.

Technical Specifications

Motor power: 1 HP / 0.75 kW
Speed: 3000 rpm
Power supply: 230 V, 50/60 Hz, 4.8 A
Drilling diameter: Ø 35 mm main drill, Ø 2 mm auxiliary drills
Maximum milling depth: 45 mm
Machine dimensions: 445 × 450 × 420 mm
Weight: 20 kg

These specifications make the EVO SLOT a high-precision and reliable solution for milling wooden profiles of varying density and hardness.

Advantages of the EVO SLOT Hinge Milling Machine for Wood

Precision machining: uniform milling depth, clean edges, and accurate pockets
Solid construction: high stability and vibration-free operation
Ergonomic handling: comfortable operation during long working hours
Durable and low maintenance: high-quality materials and robust mechanics
CE-certified and energy-efficient: compliant with European safety standards
Versatile application: suitable for wooden doors, window profiles, furniture parts, and wooden frames

Equipment and Accessories

Standard Equipment

Impact cutter for precision milling
Two Ø 2 mm drills
Two profile templates for hinge dimensions

Optional Accessories

Second collet chuck for multiple machining operations
Heavy-duty machine table or stand for stationary use

Application Areas

The EVO SLOT hinge milling machine for wooden profiles is suitable for a wide range of woodworking applications — from single-piece manufacturing to mass production.

It is ideal for:

Wooden doors and window frames
Solid wood profiles and laminated wood panels
Furniture components with hinge or lock slots
Hardware and handle cut-outs in wooden profiles

With its high precision and repeatability, the EVO SLOT increases productivity and ensures perfect surface quality even on demanding wood textures.

Conclusion

The EVO SLOT hinge milling machine for wood stands for power, precision, and professional woodworking performance.
It is the optimal solution for those who demand top-quality and efficiency in milling hinges, locks, and handle openings in wooden materials.

With its robust design and precise operation, the EVO SLOT sets a new benchmark in wooden profile processing and guarantees long-term reliability in both craftsmanship and industrial applications.
