ALUMINIUM PROFILE MACHINING AND CUTTING CENTER EVOAV

ALUMINIUM PROFILE MACHINING AND CUTTING CENTER EVOAV – CNC PROFILE MACHINING CENTER WITH 12 SERVO AXES

Maximum Precision, Speed and Automation in Aluminium Profile Processing

High-Performance CNC Technology for Aluminium and PVC Profiles

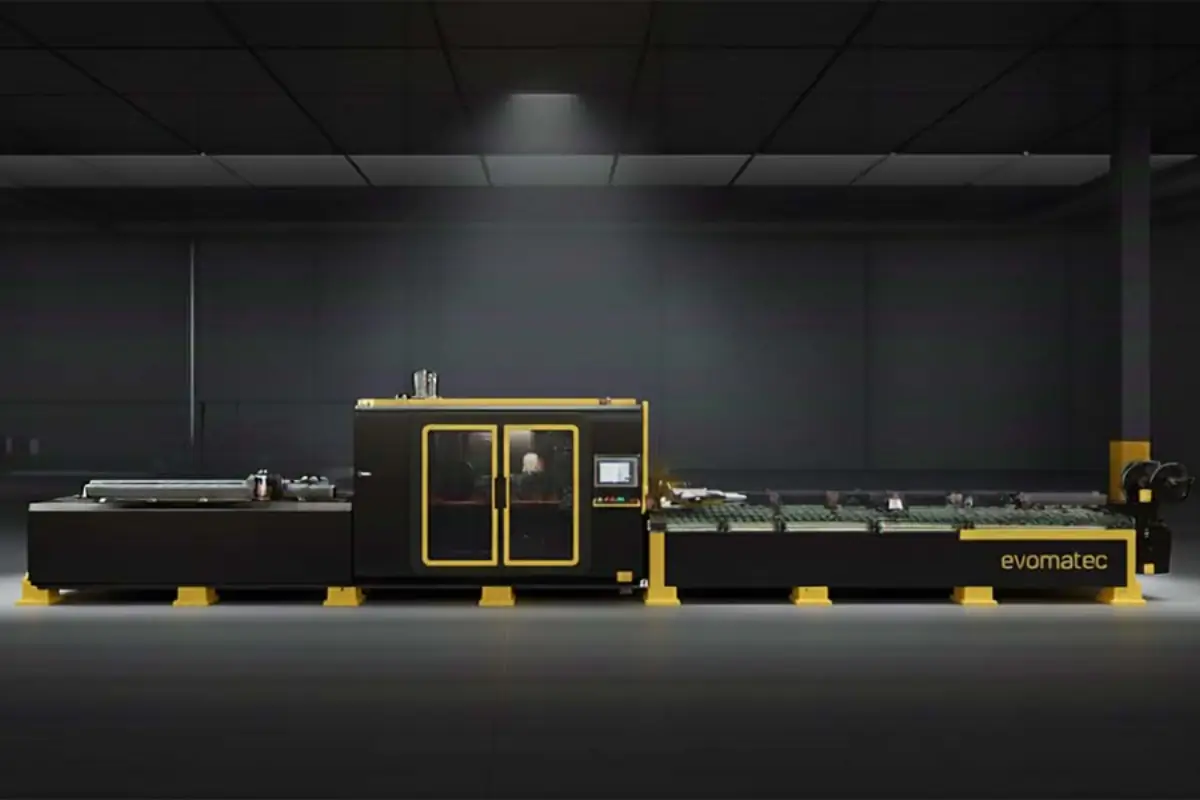

The EVOAV CNC Profile Machining and Cutting Center from EVOMATEC is a high-performance industrial system designed for precise, efficient, and fully automated processing of aluminium and PVC profiles.
Equipped with 12 servo axes, a 5-axis cutting system, and eight configurable spindle motors, the EVOAV delivers exceptional speed, flexibility, and industrial-grade precision.

Its modular construction and independent processing units allow for cutting, milling, finishing, surface treatment, and special operations to be performed simultaneously.
The result is minimal cycle times, maximum productivity, and absolute repeat accuracy – ideal for window, door, façade, and industrial profile applications.

Technological Innovation and Industry 4.0 Integration

Servo-Controlled Precision with Smart Automation

The EVOAV Machining Center is designed for 24/7 serial production, combining servo-driven precision, digital process optimization, and fully automated profile handling.
The integrated 550 mm saw unit with a 5-axis motion system allows precise cutting between 0° and 180°, while multi-side machining enables simultaneous processing on all four profile surfaces.

With a profile width of up to 300 mm and a loading length of up to 8,000 mm, the EVOAV meets the highest industrial demands — from standard profiles to complex custom geometries.
Its CNC control system, compatible with Camquix CAM and other optimization programs, ensures seamless integration into modern production environments.

Main Features of the EVOAV CNC Profile Machining Center

High-Performance Multi-Side Machining

Eight fan-cooled high-speed spindles, individually configurable
Precision milling and drilling on four sides of aluminium profiles
Option to add up to five additional spindle motors (up to 14 total slots)

Advanced Cutting Unit

Saw blade diameter: 550 mm
Cutting angle range: 0°–180°
Drive power: 3 kW
Maximum cutting capacity: 300 mm (width) × 165 mm (height)

Optimized Material Handling

Automatic loading and unloading system with a capacity of 4 profiles
Integrated chip conveyor for clean and continuous operation
Fully automated material flow for serial production

Control and Software

15″ industrial touchscreen PC with intuitive interface
Barcode printer, Ethernet, and USB connectivity
Compatible with optimization and CAM software (Camquix CAM included)
Fully networked and ready for Industry 4.0 environments

Technical Specifications of the EVOAV

Positioning Speeds

X1 (Longitudinal): 40 m/min Y1 (Horizontal): 40 m/min Z1 (Vertical): 40 m/min
X2 (Cutting unit longitudinal): 40 m/min Y2 (Horizontal): 40 m/min Z2 (Vertical): 42 m/min
U (Clamping system): 40 m/min A & C (Rotational axes): 166°/s
XL (Robot): 90 m/min YL (Lateral): 20 m/min ZL (Vertical): 20 m/min

Milling Unit

8 high-speed spindles, 3 kW, 18,000 rpm
Tool holder: ER 20

Cutting Unit

550 mm saw blade 3 kW motor Cutting angle 0°–180°

Loading and Unloading Unit

Profile length: 1,200–8,000 mm Capacity: 4 profiles

Pneumatics and Media

Operating pressure: 6–8 bar FESTO pneumatic system
Automatic lubrication (standard) Central lubrication (optional)

Power Supply

Maximum power: 43.5 kW Power consumption: 122 A

Precise CNC Machining for Aluminium and PVC

The EVOAV Machining Center is designed for manufacturers demanding the highest production quality.
Its 12 servo-axis technology enables complex CNC milling, cutting, and drilling processes to be performed in a single continuous workflow.
This significantly reduces setup times, minimizes material waste, and ensures consistently precise results for both serial and custom production.

Typical Processes:

CNC milling of aluminium profiles
CNC cutting and sawing of aluminium profiles
CNC drilling, marking, and finishing operations
Multi-side machining of complex profile systems

Industrial Applications

Window manufacturing: milling of locks, handles, and drainage openings
Door production: cutting, drilling, and milling of door frame profiles
Façade construction: machining of large architectural profiles
Mechanical and automotive engineering: precision machining of technical aluminium components

With 12 servo axes, high-speed spindles, and automated control, the EVOAV stands as one of the most powerful and versatile solutions on the market.

EVOMATEC – Technological Leadership in CNC Profile Machining

EVOMATEC is one of the world’s leading manufacturers of CNC machinery for aluminium profile processing.
Our systems combine German engineering precision, advanced software integration, and robust construction to ensure maximum reliability in continuous industrial operation.

With an EVOMATEC CNC Machining Center, companies benefit from:

Superior machining quality and production speed
Minimal energy consumption and maintenance
Configurable machine architecture for various profile types
Long-lasting technology designed for modern manufacturing demands

Conclusion – Future-Proof Technology for Aluminium and PVC Profile Processing

The EVOAV CNC Profile Machining and Cutting Center provides maximum flexibility, precision, and efficiency.
With its 12 servo axes, 5-axis cutting system, and automated material handling, it is the ideal choice for manufacturers focused on productivity, quality, and process reliability.

EVOMATEC – Your Partner for Precision, Efficiency, and Innovation in Aluminium Profile Processing
