AUTOMATIC MITRE SAW FOR ALUMINIUM AND ALUMINIUM PROFILES – EVOM II

Professional Mitre Saw with Hydro-Pneumatic Feed – Precision, Performance, and Reliability in Aluminium Processing

Precision Cutting through Hydro-Pneumatic Feed Technology

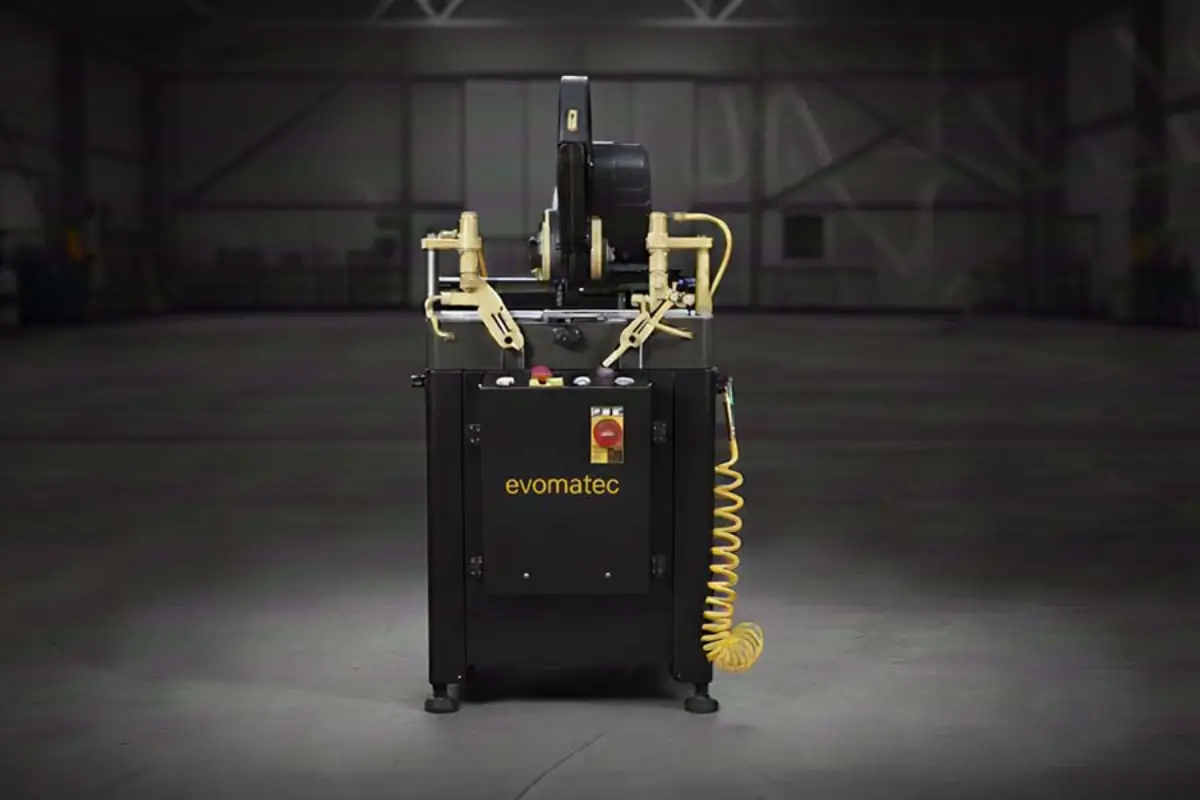

The EVOM II is an automatic mitre saw for aluminium profiles, designed for precise, clean, and burr-free cutting of aluminium and light alloy profiles.
With its hydro-pneumatic feed system, pneumatic clamping mechanism, and robust industrial construction, it guarantees maximum dimensional accuracy, repeatability, and process stability — ideal for window, door, and façade production, as well as for industrial serial manufacturing.

The precise feed control ensures smooth cutting motion with minimal vibration and optimized tool wear, maintaining consistently high cut quality regardless of profile geometry or wall thickness.

Hydro-Pneumatic Feed for Consistent Cutting Quality

The integrated hydro-pneumatic feed system provides a controlled, finely adjustable cutting motion.
Its stable and constant feed pressure minimizes vibration, extends tool life, and maintains cutting quality at a consistently high level.

Pneumatic Clamping System

Vertical and horizontal clamps hold the workpiece securely in position, ensuring absolute stability even at high cutting speeds.
The result: precise, angle-accurate, and burr-free cuts — ideal for aluminium profiles with varying wall thicknesses or sensitive surfaces.

Robust Construction and Maximum Operational Safety

The heavy-duty cast-iron frame of the EVOM II ensures smooth, low-vibration operation and a long service life — even in continuous industrial use.
A dual-spring safety cover and protective enclosure safeguard the operator during cutting.
Automatic adjustment of cutting speed to match the profile material ensures consistent results, protects the workpiece, and reduces rework times.

The EVOM II is CE-certified and meets all current European safety standards.

Technical Specifications

Performance Data

  • Saw Blade Diameter: Ø 400 mm

  • Spindle Speed: 3,000 rpm

  • Motor Power: 2.2 kW (3 HP)

  • Voltage / Frequency: 400 V / 50 Hz

Cutting Range and Feed System

  • Cutting Angles: −45° to +45° with preset stops at 0°, 15°, 22.5°, 30°, and 45°

  • Feed System: hydro-pneumatic, continuously adjustable

  • Air Pressure: 6–8 bar

  • Air Consumption: 25 L/min

Dimensions and Construction

  • Machine Dimensions (L × W × H): 1,200 × 1,230 × 1,500 mm

  • Weight: 120 kg

  • Standard Equipment: Ø 400 mm carbide saw blade, cooling system

  • Optional Equipment: conveyor belt, single-phase drive

Product Advantages

Precision and Control

  • Hydro-pneumatic feed ensures uniform cutting motion

  • Pneumatic vertical and horizontal clamping for absolute stability

Efficiency and Reliability

  • Burr-free cuts with maximum repeat accuracy

  • Low-vibration operation due to solid industrial design

  • Adjustable cutting speed based on profile material

Durability and Safety

  • Energy-efficient, low-maintenance drive system

  • CE-certified to European safety regulations

  • Ideal for continuous operation in industrial production lines

Typical Applications

The EVOM II is the optimal solution for precise and efficient cutting in aluminium fabrication.
Common applications include:

  • Cutting aluminium profiles for windows, doors, and façade components

  • Precision cuts in aluminium and light-metal processing

  • Serial production of frame and system profiles

  • Industrial cutting of aluminium extrusions

  • Semi- and fully-automatic mitre cutting with hydro-pneumatic control

Wherever precision, consistency, and productivity are required, the EVOM II delivers industrial-grade results.

Conclusion

The automatic mitre saw EVOM II with hydro-pneumatic feed technology represents the latest in cutting innovation, offering unmatched precision, performance, and efficiency.
It combines automated feed control, advanced clamping systems, and robust construction into a long-lasting, high-performance solution for professional aluminium processing.

Whether in window, door, or façade fabrication — the EVOM II provides precise, burr-free cuts with maximum productivity and reliability.
