CNC CORNER CLEANING MACHINE EVOOV

‹ ›

CNC Corner Cleaning Machine EVOOV – Automated Precision for PVC Windows and Plastic Profiles

Advanced CNC Technology for Modern Window and Door Manufacturing

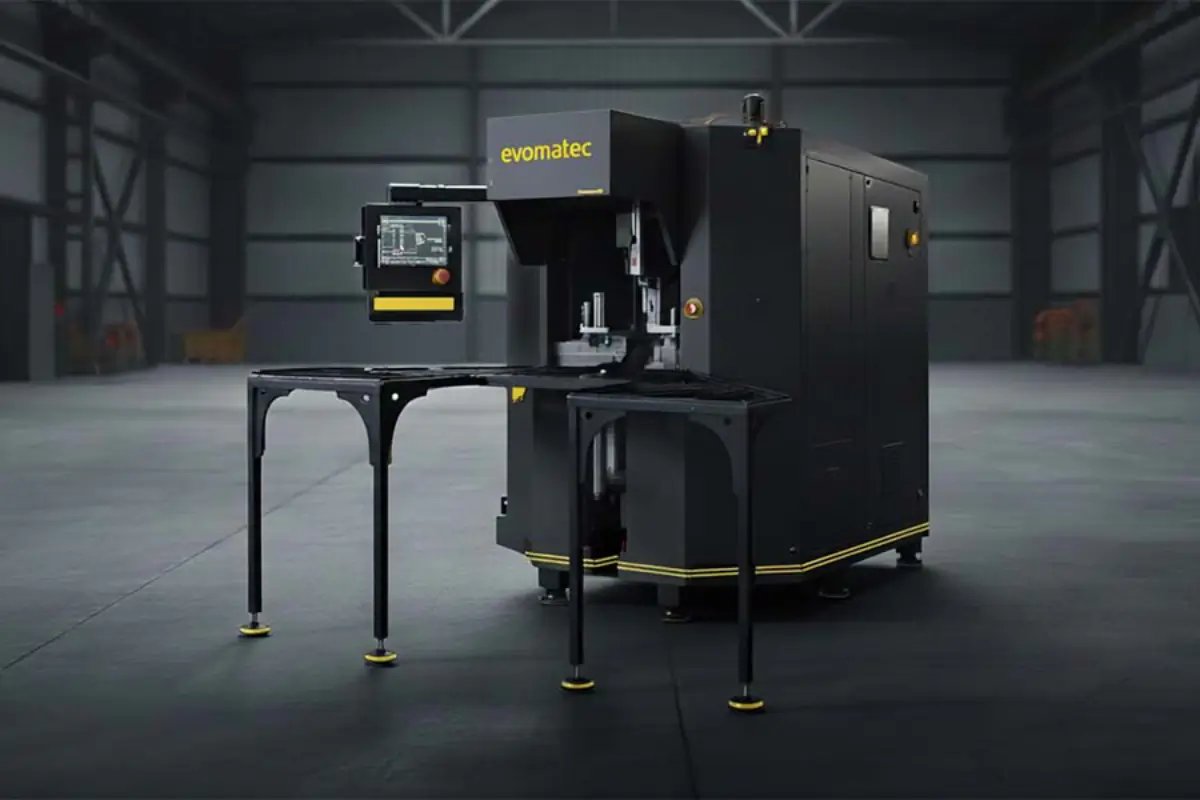

CNC Corner Cleaning Machine EVOOV – High-Precision Automation for Industrial PVC Processing

The CNC Corner Cleaning Machine EVOOV by Evomatec is a state-of-the-art CNC corner cleaning and finishing system designed for the fully automatic post-processing of welded PVC and uPVC profiles.
It removes welding beads, material residues, and surface irregularities on window frames, door profiles, and sash profiles, producing clean, precise, and perfectly finished edges.

Equipped with digital CNC control, 11 automatic milling units, and a profile memory for up to 1,000 programs, the EVOOV enables efficient serial production in modern window and door manufacturing while maintaining consistent, high-end quality.

Why CNC Corner Cleaning Systems Are Essential in PVC Window Production

In industrial PVC window production, welded joints generate visible weld beads and burrs that must be removed to achieve flawless surfaces and tight-fitting corners.
CNC corner cleaning systems are a crucial finishing step — they determine both the visual quality and the dimensional precision of the final frame.

The EVOOV CNC Corner Cleaning Machine automates this process entirely:
It simultaneously processes multiple surfaces, removes welding residues, and delivers uniform, smooth profiles — without any manual reworking.

Technological Features and Operating Principles

Intelligent CNC Control

The integrated CNC system continuously monitors all machining parameters in real time, guaranteeing consistent repeat accuracy throughout production.
Two independent milling units operate simultaneously on inner, outer, and surface areas, ensuring precise, high-speed results.

Automatic Tool Detection and Profile Management

The machine automatically identifies the profile type and dynamically adjusts its tools.
Up to 1,000 profile configurations can be stored and retrieved instantly — a major time-saver in large-scale serial production.

Variable Axis Speeds and Precision Milling

Electronically controlled axes enable precise adjustment of all milling and scraping movements according to the material and profile geometry.
This ensures burr-free, high-precision edge finishing with minimal material removal.

Technical Specifications of the EVOOV

Automated Working Process

1. Profile Loading and Clamping – The profile is automatically clamped and aligned.

2. Profile Scanning and Parameter Matching – CNC sensors analyze shape and dimensions.

3. Multi-Surface Processing – Top, bottom, and outer surfaces are simultaneously cleaned.

4. Fine Cutting and Surface Finishing – Special cutting tools remove residual burrs for a perfect finish.

5. Automatic Reset and Restart – After each cycle, the machine returns automatically to its start position, ready for the next frame.

This workflow ensures maximum precision, fast cycle times, and repeatable results for every production batch.

Key Advantages of the EVOOV

• CNC-controlled automation for fully automatic post-processing without manual intervention

• Up to 70% faster than manual corner cleaning systems

• Consistent repeat precision for identical results across all profiles

• Versatile profile compatibility for varying heights, widths, and geometries

• Durable industrial components for low maintenance and continuous operation

• Intuitive touchscreen operation with integrated profile management

• Clean workspace through built-in dust and chip extraction system

Application Areas of the CNC Corner Cleaning Machine

The EVOOV is widely used across industrial PVC processing sectors:

• PVC Window Production: Precise cleaning of welded corners on window frames and sashes

• Door Manufacturing: Automated post-processing of PVC door frames and side sections

• Façade Construction: Accurate trimming of large structural plastic profiles

• Industrial Series Production: Full integration into automated welding and cleaning lines

The CNC Corner Cleaning Machine EVOOV features a modular design, making it suitable as a standalone machine or as part of a complete automated production system.

Safety and Quality Standards

The EVOOV Corner Cleaning System complies with CE regulations and European safety and EMC standards.
Its low-noise operation and enclosed safety housing ensure maximum operator protection.
The integrated dust extraction system removes PVC chips and debris directly, extending tool life and maintaining a clean work environment.

Efficiency and Future Readiness

Investing in the CNC Corner Cleaning Machine EVOOV means investing in maximum productivity and cost-efficiency:

• Reduced labor requirements through full automation

• Shorter cycle times and increased daily output

• Minimized material waste and scrap

• Industry 4.0 compatibility with Ethernet or USB data connectivity for digital production monitoring

Evomatec is already developing AI-driven profile recognition and automated tool optimization, paving the way for next-generation intelligent PVC machining solutions.

Conclusion – Industrial Perfection Through CNC Technology

The CNC Corner Cleaning Machine EVOOV by Evomatec is the ultimate solution for manufacturers who demand superior precision, automation, and efficiency.
Combining digital CNC control, high-performance mechanics, and energy-efficient design, it sets a new benchmark in professional PVC window and door fabrication.

Contact our team for a free consultation. Click here
