ALUMINIUM PROFILE COPY ROUTER & HANDLE DRILLING SYSTEM EVOCOPY II

‹ ›

ALUMINIUM PROFILE COPY ROUTER WITH HANDLE DRILLING SYSTEM EVOCOPY II

Maximum Precision, Stability, and Efficiency in Aluminium Profile Machining

High-Precision Copy Router for Aluminium Profiles with Integrated Handle Drilling System

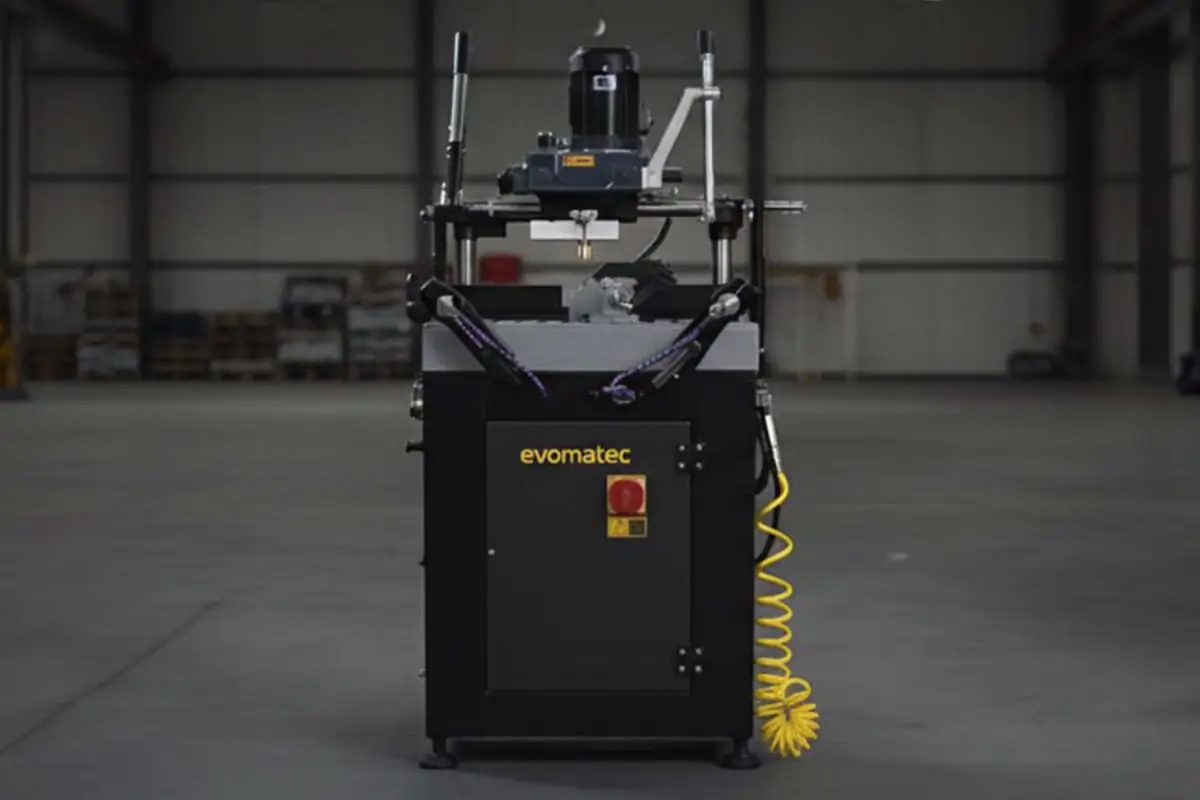

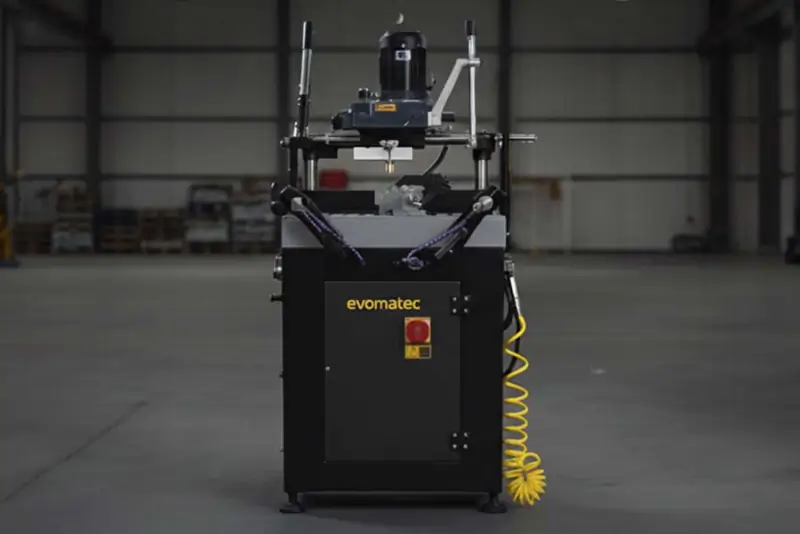

The EVOCOPY II Aluminium Profile Copy Router with Handle Drilling System is an advanced milling and drilling machine designed for precise processing of aluminium and plastic profiles.
It combines cutting-edge milling technology, pneumatic clamping, and a Triple-Grip multi-drilling unit capable of performing multiple holes simultaneously with exceptional accuracy.

Developed for professional use in window, door, and façade production, this machine delivers clean, repeatable milling and drilling results through its rigid mechanics, precision-guided system, and ergonomic design — ideal for handle holes, lock slots, and olive hole drilling in aluminium profiles.

Keywords: Aluminium Profile Copy Router,Copy Router with Handle Drilling System,Handle Hole Copy Router,Triple-Grip Drilling Machine,Aluminium Copy Milling Machine,Copy Router Aluminium Profiles,CNC Copy Router Aluminium,Manual Copy Router for Aluminium Profiles,Copy Router with Handle Hole Drilling,Aluminium Machining Equipment,Copy Router for Window and Door Profiles,Profile Milling Machine Aluminium,Copy Router Machine for Aluminium,Aluminium Profile Machining Machine,Aluminium Window Machinery,Door and Façade Profile Router,Aluminium Handle Drilling Machine,Industrial Copy Router Aluminium,Precision Copy Router for Aluminium Profiles

Precision Milling Technology for Industrial Aluminium Profile Processing

The EVOCOPY II enables precise milling, drilling, and slotting of aluminium profiles in a single operation.
Its integrated Triple-Grip Drilling System allows up to three holes to be drilled simultaneously — ideal for handle holes, lock housings, and olive hole areas.

The combination of pneumatic clamping, a stable cast-iron frame, and a precision-guided copy system ensures maximum dimensional accuracy and consistent results — even when processing complex profile geometries.

Technically Advanced Milling Unit with Triple-Grip System

Pneumatic Clamping System

Securely holds the workpiece during the entire milling and drilling process for maximum safety and stability.

Integrated Cooling System

Ensures burr-free cutting surfaces, reduces heat buildup, and extends tool life.

Precision Copy Unit

Template-guided copy milling ensures accurate and repeatable machining results for every profile.

Triple-Grip Drilling System

Performs three holes simultaneously — perfect for handle or lock-hole drilling in window and door profiles.

This Copy Router with Handle Drilling System combines advanced mechanical engineering with proven reliability, delivering high precision, fast cycle times, and minimal maintenance — ideal for continuous industrial operation.

Technical Specifications

• Main Motor: 1.1 kW (1.5 HP) | 3,000 rpm

• Drilling Motor: 0.55 kW (0.75 HP) | 1,400 rpm

• Milling Cutter Diameter: 5 mm (standard), 8 mm (optional)

• Drilling Diameter: 10–12 mm

• Working Travel (X/Y/Z): 250 / 110 / 115 mm

• Air Pressure: 6–8 bar | Consumption: 5 L/min

• Electrical Connection: 400 V | 50/60 Hz

• Machine Dimensions: 2,540 × 860 × 1,450 mm

• Machine Weight: 127 kg

• Cooling System: Standard integrated, low-maintenance

Advantages of the EVOCOPY II Copy Router with Handle Drilling System

Triple-Grip Drilling System

Drills three holes simultaneously — ideal for handle, lock, and olive hole drilling.

Maximum Precision

Servo-regulated milling and precision guide systems ensure dimensional accuracy of ±0.1 mm.

Robust Construction

Solid cast structure guarantees vibration-free operation and long service life.

Energy Efficient & Low Maintenance

Low air consumption, automatic lubrication, and durable components ensure reliable performance.

CE Certified

Complies with all European safety and CE industrial standards.

Flexible Application

Suitable for aluminium, PVC, and hybrid profiles used in window, door, and façade manufacturing.

Typical Applications

Window Production

Handle hole drilling, lock slot milling, drainage openings, and technical cut-outs.

Door Manufacturing

Processing of frame profiles, handle holes, and lock systems.

Façade Construction

Precision milling for connectors, drainage systems, and mounting apertures.

Metal and Lightweight Structures

Drilling for fasteners, accessories, and technical apertures.

Custom Fabrication

Adaptable copy and drilling templates for non-standard and custom aluminium profiles.

Quality, Ergonomics, and Efficiency

The EVOCOPY II offers high precision with user-friendly operation.
Its ergonomic design enables effortless handling, while the stable cast-iron base minimizes vibration and extends tool life.
The integrated cooling and automatic lubrication systems reduce maintenance requirements and ensure consistent surface finish and cutting accuracy.

This perfect balance of power, precision, and comfort makes the EVOCOPY II the ideal solution for professional aluminium profile machining in modern industrial environments.

Conclusion

The EVOCOPY II Aluminium Profile Copy Router with Handle Drilling System represents industrial precision, versatility, and long-term reliability.
With its Triple-Grip drilling unit, pneumatic clamping system, and rigid construction, it sets new performance standards in aluminium and plastic profile machining.

Whether for window, door, or façade manufacturing, the EVOCOPY II guarantees clean, accurate, and repeatable milling and drilling results with maximum productivity and minimal maintenance.

EVOMATEC – Machinery for Precision Aluminium Profile Processing
For technical consultation and detailed quotation: info@evomatec.de
