Aluminium Cutting Machine: Precision and Efficiency in Metalworking

The aluminium cutting machine is far more than just a tool; it is the pulsating heart of countless modern manufacturing processes. In a world reliant on lightweight construction, durability, and efficiency, aluminium has established itself as one of the most critical materials. From the delicate profiles in window and facade construction to complex structural components in the automotive industry and massive billets in aerospace—the precise and economical cutting of this material is the first and often decisive step in the value chain.

Choosing the right aluminium cutting machine, often referred to as an aluminium saw or aluminium cut-off saw, is a strategic decision. It directly impacts the dimensional accuracy of the components, the surface quality of the cut edges, the cycle time of the production, and ultimately, the profitability of the entire operation. The unique properties of aluminium place high demands on the machine's technology—demands that a simple wood saw or an unsuitable metal saw can never meet.

This comprehensive article delves deep into the world of aluminium cutting. We analyze the technical fundamentals, compare the different machine types from the cold saw to the CNC-controlled double mitre saw, illuminate the crucial details of saw blades and cooling systems, and examine the economic aspects of such an investment.

Understanding the Material: Why Aluminium Requires Special Cutting Machines

Aluminium is not just aluminium. And its machining, especially cutting, is fundamentally different from that of steel or wood. To understand the need for specialized machines, we must look at the characteristic properties of this lightweight metal.

The Challenges of Machining Aluminium

Although aluminium is considered a "soft" metal, its machining is notoriously demanding. The biggest challenges are:

1. Tendency to "Smear" (Adhesion): Pure aluminium and many soft alloys tend to stick to the cutting edge of the tool. This leads to the formation of a so-called built-up edge (BUE). The material smears instead of being cleanly separated. The cut surface becomes rough, dimensional accuracy suffers, and the saw blade's service life plummets.

2. High Thermal Expansion: Aluminium expands significantly when heated—much more than steel. The frictional heat generated during sawing can cause the material to expand and "pinch" or jam the saw blade.

3. Excellent Thermal Conductivity: The material conducts heat extremely well. On one hand, this is good, as heat is quickly transported away from the cut. On the other hand, it means a lot of energy is introduced into the workpiece, which can lead to warping if not cooled correctly.

4. Chip Formation: Aluminium tends to form long, tough, continuous chips. These can get caught in the machine's working area, obstruct the cutting process, and must be effectively evacuated.

The Influence of Alloys

In industry, pure aluminium is rarely used. Instead, alloys (with silicon, magnesium, copper, etc.) are employed to improve mechanical properties. These alloys have a direct impact on machinability:

• Cast Alloys (e.g., AlSi): The silicon acts as an abrasive and places high demands on the wear resistance of the saw blade.

• Wrought Alloys (e.g., AlMgSi - 6000 Series): These are the most common alloys in the profile sector (windows, facades). They are easily machinable but still prone to smearing.

• High-Strength Alloys (e.g., AlZnMgCu - 7000 Series): Used in aerospace, these alloys are very hard and brittle. They produce shorter chips but require extremely stable machines and high cutting forces.

These material properties dictate that an aluminium cutting machine must master four things perfectly: a stable and low-vibration machine construction, precise saw blade guidance, adapted saw blade tooth geometry, and a highly efficient cooling and lubrication system.

From Hand Saw to CNC Cell: The Evolution of the Aluminium Cutting Saw

The history of the aluminium cutting machine is closely linked to the rise of the material itself. What began as a rare and expensive material in the late 19th century became a mass product by the mid-20th century.

In the early days, people made do with modified wood saws or simple hacksaws. The results were often poor: burnt edges, heavy burrs, and dangerous flying sparks were commonplace.

The first major leap was the development of the cold circular saw for metals. These machines relied on low speeds and robust HSS (High-Speed Steel) saw blades, often in combination with flood cooling. They produced a clean, cool, and low-burr cut but were relatively slow.

The breakthrough in the architectural sector—the boom in aluminium windows and facades in the 1960s and 70s—required a new type of machine. Precise 45-degree mitre cuts were in demand. This was the birth of the mitre saw and, shortly thereafter, the double mitre saw. These machines could cut a profile at both ends simultaneously and at an exact angle, drastically reducing production times.

The most recent revolution was the integration of CNC (Computerized Numerical Control). Lengths and angles no longer had to be set manually via a handwheel and scale. They were now entered digitally or imported directly from CAD programs. Today's aluminium cutting machine is often a fully automatic machining center that saws, drills, mills, and is seamlessly integrated into an Industry 4.0 environment.

Typology: Which Aluminium Cutting Machine for Which Purpose?

The term "aluminium cutting machine" is an umbrella term for a multitude of different concepts. The choice of the right type depends on the application, the material (profile, plate, block), and the required throughput.

Circular Saws: The Universal Cutting Machines

Circular saws are the most widespread technology for cutting aluminium. However, they are divided into two fundamentally different categories.

Cold Circular Saws (Low-RPM)

The cold saw is a classic in metal fabrication and workshops.

• How it works: It operates at very low speeds, typically between 30 and 120 RPM (Revolutions Per Minute). A robust worm gear drive transfers enormous torque to an HSS or segmented saw blade.

• Cooling: Flood cooling (emulsion) is almost always used, which cools the cutting area and flushes away chips.

• Application: Ideal for cutting solid material (round bars, square stock) and thick-walled tubes.

• Advantages: Extremely precise, smooth, and burr-free cut surfaces ("mirror finish"). The material is barely affected thermally.

• Disadvantages: Relatively slow cutting speed, therefore unsuitable for high throughput of thin-walled profiles.

High-Speed Circular Saws (High-RPM)

These machines are the exact opposite of the cold saw and are the standard for profile cutting.

• How it works: They operate at very high speeds, often between 3,000 and 6,000 RPM. Only carbide-tipped saw blades (TCT blades) are used.

• Cooling: Minimal Quantity Lubrication (MQL) dominates here, where an oil-air mixture is sprayed directly onto the cutting edges.

• Application: The definitive standard for cutting aluminium profiles (hollow-chamber profiles) in window, facade, trade show, and machine construction.

• Advantages: Extremely fast cutting times (cycle times of a few seconds), good surface quality on thin-walled material.

• Disadvantages: Less suitable for solid material, as the high speed would generate too much heat and overload the blade's chip gullets.

Mitre Saws: The Specialists for Angles

In construction, the 90-degree cut is the exception. Frame constructions require precise mitre cuts, usually at 45 degrees.

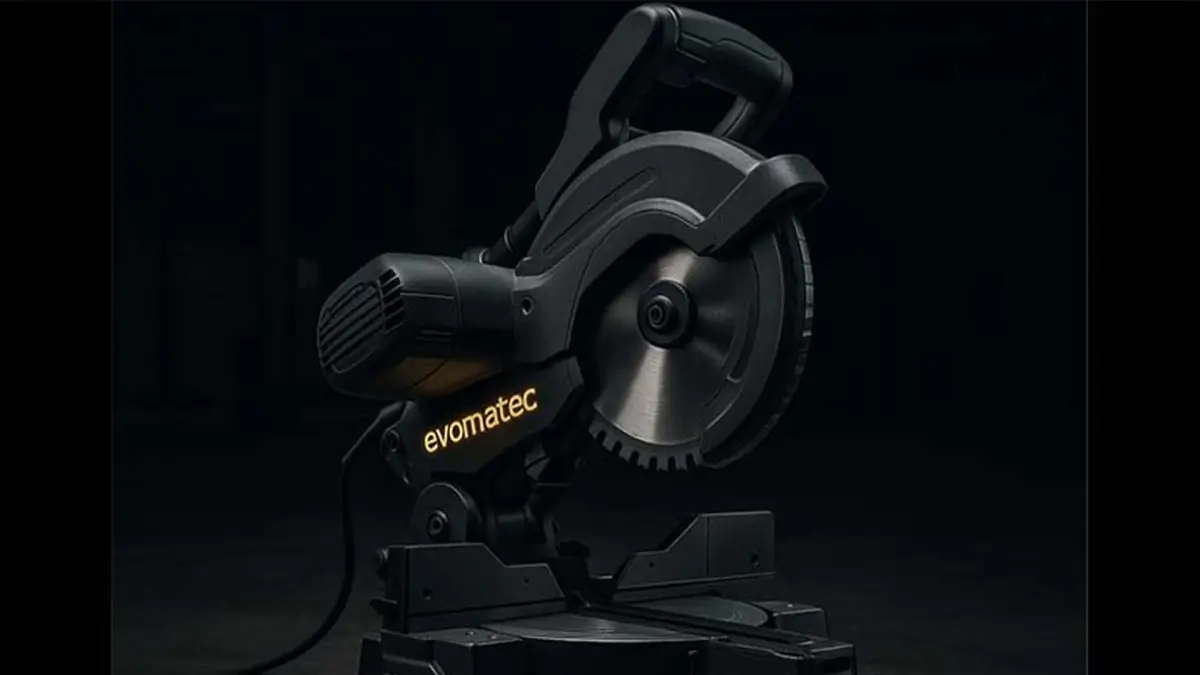

Single-Head Mitre Saws

The single-head saw is the flexible basic machine for craft workshops and small series production.

• Design: A saw unit that can be pivoted manually or motor-driven (e.g., from 45° left to 45° right, sometimes also tiltable).

• Variants:

  • Manual Chop Saws: The simplest form, often as an up-cut saw, where the blade rises from below the table.

  • Semi-Automatic Saws: The operator inserts the profile, pneumatic clamps fix it, and the sawing cycle (saw, cool, return) starts at the push of a button.

  • Fully Automatic Saws (Automatic Length Stop): Combined with a material feeder. The operator enters the length and quantity, and the machine cuts the series independently.

Double Mitre Saws

This is the key machine in the industrial manufacturing of windows, doors, and facades.

• Design: Two saw units on a massive machine bed. One unit is fixed (the 0-reference), the other is motor-driven on a precision guide to set the cutting length.

• How it works: The operator loads a 6-meter bar. The control system (usually CNC) receives the cutting list (length, angle, quantity) digitally. The movable head travels to the exact length (e.g., 2450.5 mm), both heads pivot to the desired angle (e.g., 45°), and both cuts are executed simultaneously.

• Efficiency: The gain in efficiency is enormous. Instead of inserting, measuring, and clamping a profile twice, it is cut to length at both ends precisely in one cycle.

• CNC Control: Modern double mitre saws are fully CNC-controlled. They manage complex cutting lists, optimize for minimal waste, and can set the angles automatically.

Panel Saws for Aluminium

When cutting a plate or sheet instead of a profile (e.g., for facade cassettes, machine enclosures), panel saws are used.

• Horizontal Panel Saws (Beam Saws): The sheet lies on a table, a pressure beam fixes it, and a saw carriage travels underneath the panel. High precision and ideal for stack cutting.

• Vertical Panel Saws: Space-saving, as the panel stands vertically. The saw unit is guided through the panel manually or automatically. Ideal for single cuts in workshops or at material distributors.

Band Saws for Blocks and Contours

Band saws show their strengths when cutting very large cross-sections (e.g., cast aluminium blocks, billets) or for contour cuts.

• Horizontal Band Saws: Ideal for cutting heavy solid material to length.

• Vertical Band Saws: Used for cutting out shapes and radii.

• Advantage: Low material loss due to a thin saw band (kerf).

Technology in Detail: What Defines a Good Aluminium Cutting Machine

The difference between a mediocre and an excellent aluminium cutting machine lies in the details. High speed alone is not a mark of quality; precision must be maintained at that speed.

The Saw Blade: The Heart of the Cut

The best machine bed is useless with the wrong tool.

• Material: For high-speed saws, Carbide (HM), also known as TCT (Tungsten Carbide Tipped), is the absolute standard. The teeth are extremely wear-resistant. For cold saws, HSS (High-Speed Steel) is used.

• Tooth Form: The most common and best tooth form for aluminium is the Triple-Chip Ground (TCG) or Trapezoidal-Flat (TR-F). A higher, narrower "pre-cutter" tooth (trapezoidal) alternates with a lower, wider "finisher" tooth (flat). This ensures optimal chip distribution, smooth operation, and excellent surface finishes.

• Rake Angle: This is a critical parameter.

  • Positive Rake Angle: The tooth "bites" aggressively into the material. Ideal for solid material, as it pulls the material into the cut.

  • Negative Rake Angle: The tooth has a "scraping" or "planing" action. This is mandatory for thin-walled profiles. A positive angle would "lift" the profile, jam it, or deform it. The negative angle presses the profile against the fence and ensures a smooth, clean cut.

Cooling and Lubrication: The Key Against Adhesion

As mentioned, aluminium tends to stick. Effective lubrication and cooling are therefore not "nice-to-haves" but fundamental prerequisites.

• Flood Cooling (Wet Cut): An emulsion of water and oil floods the cutting area.

  • Advantages: Maximum cooling effect, ideal for solid material and cold saws. Chips are immediately washed away.

  • Disadvantages: High consumption, complex disposal of the emulsion, wet components that must be cleaned and dried.

• Minimal Quantity Lubrication (MQL) or Spray Mist Cooling: An oil-air mixture is sprayed as a fine mist under high pressure directly onto the cutting edges of the saw blade.

  • Advantages: Extremely low lubricant consumption (often just a few milliliters per hour). The components are virtually dry and oil-free. No disposal problems. Environmentally friendly. This is the modern standard for profile machining.

  • Disadvantages: Lower cooling effect, therefore less suitable for solid material.

Clamping Systems: The Guarantee for Precision

Any vibration during the cut is pure poison for dimensional accuracy and the service life of the saw blade. The profile must be fixed completely immobile.

• Pneumatic Clamps: The standard. They are fast, powerful, and reliable.

• Hydraulic Clamps: Used for very large cross-sections and in cold saws for solid material, where extreme clamping forces are needed.

• Vertical and Horizontal Clamps: A high-quality profile saw must always have both. The vertical clamps press the profile down onto the machine table. The horizontal clamps press it from the front against the back fence. Only this combination prevents the profile from lifting or vibrating.

Machine Bed and Drive: The Foundation of Stability

An aluminium cutting machine must be heavy. A massive machine bed made of cast iron or a vibration-dampening mineral-cast composite is ideal. Welded steel structures must be extremely thick-walled and ribbed to absorb vibrations.

The drive of the saw blade must be direct, powerful, and precise. Modern machines use servo motors that allow for exact speed control and a fast, controlled feed of the saw blade.

Controls and Software: The Brain of Production

In Industry 4.0, the control system is a decisive factor.

• NC Control: Allows for the digital entry of lengths and quantities.

• CNC Control: A full-fledged industrial PC, often with a touchscreen. It manages complex orders, displays the cut graphically, and communicates with the network.

• Cutting Optimization Software: A must-have for expensive aluminium profiles. The software receives a list of the required parts (e.g., 10x 1200mm, 5x 800mm, 20x 450mm) and automatically calculates how these parts must be cut from the 6-meter stock bars to minimize waste (offcuts). This saves thousands of euros per year.

• Integration: Modern control systems, such as those found in Evomatec system solutions, allow for a seamless connection to the company's CAD planning and ERP system. The order from the office lands directly on the saw without manual entry.

Applications and Industries: Where Aluminium Cutting Machines are Indispensable

The areas of application are as diverse as the profiles and plates themselves.

Window, Door, and Facade Construction

This is by far the largest market for profile saws. The entire sector is based on the precise cutting of hollow-chamber profiles. Double mitre saws are the gold standard here. They must not only deliver exact 45-degree cuts for the corners but also 90-degree cuts for T-joints (mullions) or angled cuts for special constructions.

Automotive Industry and Suppliers

Lightweight construction to reduce weight and increase range (e-mobility) is driving the use of aluminium. Structural components, space frames, battery trays, and trim pieces are cut on highly automated sawing lines and CNC machining centers. High speed, robotic integration, and absolute repeat accuracy are the main requirements here.

Mechanical and Plant Engineering

In mechanical engineering, aluminium profiles (often system profiles, "T-slot profiles") are used for frames, safety enclosures, and gantry constructions. Flexible single-head saws or automatic cutting machines are often used here to quickly produce a high variety of different parts.

Aerospace

The highest standards apply here. High-strength, difficult-to-machine aluminium alloys are cut. The machines (often specialized plate or band saws) must be extremely robust and deliver perfect cut quality, as any thermal influence or micro-cracking can pose a safety risk.

Metal Distribution and Service Centers

Metal distributors who stock aluminium bars, blocks, and plates use powerful cold saws or horizontal band saws to cut the material to the customer's desired length. The focus is on high throughput and reliability in continuous operation.

Trade Show, Shop Fitting, and Furniture Design

Wherever visible frame systems (e.g., for displays, shelves, showcases) made of aluminium are used, precise mitre cuts are in demand. Compact and flexible single-head mitre saws are often the first choice here.

Investment Considerations: Costs, ROI, and Selection Criteria

The purchase of an aluminium cutting machine is a significant investment. The price range extends from a few thousand euros for a manual chop saw to several hundred thousand euros for a fully automated, interlinked CNC double mitre saw with a storage system.

Calculating the Return on Investment (ROI)

An expensive machine must pay for itself. The ROI is determined by several factors:

1. Personnel Costs: An automatic saw (especially a double mitre saw) replaces the manual labor of several employees on single-head saws. The throughput per operator hour multiplies.

2. Material Costs (Waste): A CNC saw with optimization software often reduces material waste by 5% to 15% compared to manual cutting. Given the high prices for aluminium profiles, the machine often pays for itself through this saving alone.

3. Cycle Time: Faster cycles mean higher capacity. Orders can be processed more quickly, which increases competitiveness.

4. Error Reduction: Manual measurement errors are eliminated. Every incorrectly cut part costs material and time. The digital transfer of measurements to a CNC control reduces the scrap rate to almost zero.

5. Quality: A clean, precise, and burr-free cut reduces the effort for post-processing (deburring) and increases the quality of the end product.

Criteria for the Purchase Decision

Before you invest, define your requirement profile:

• What is being cut? (Profiles, solid material, plates?)

• What cross-sections? (What is the largest profile?)

• What quantities? (Craft single-piece production or industrial series?)

• What accuracy is needed? (Standard cut-off or high-precision mitre?)

• What is the automation requirement? (Manual entry or fully automatic list processing?)

New vs. Used

The used market is tempting but carries risks. A used machine often has mechanical wear on guides and spindles, which impairs precision. Control systems may be outdated and no longer compatible. However, the crucial factor is safety: An old machine often no longer complies with current CE standards.

Safety and Maintenance: Ensuring Longevity and Protection

A high-speed saw is a powerful and potentially dangerous machine. Safety and maintenance are non-negotiable.

CE Conformity and Safe Operation

Every machine sold in the EU must comply with the Machinery Directive and bear a CE mark. This guarantees that basic safety standards are met.

• Safety Guards: This includes solid, interlocked safety enclosures that protect the operator from flying chips and the saw blade.

• Safe Clamping Systems: The machine must not start the sawing cycle if the material is not securely clamped.

• Two-Hand Operation or Light Curtains: Prevent the operator from reaching into the danger zone during the cycle.

CE conformity is a legal baseline that the manufacturer must ensure. Our extensive project experience, gained from a multitude of customer installations, enables us to conduct every technical acceptance and safety inspection with maximum accuracy, always in line with the highest quality standards and safety requirements.

Preventive Maintenance for Lasting Precision

An aluminium cutting machine is a precision instrument. Only regular maintenance ensures its performance.

• Saw Blade: Must be regularly checked for sharpness and damage and professionally resharpened.

• Cooling System: Nozzles must be clear, and the level of MQL oil or emulsion must be correct.

• Guides: Linear guides (especially on double mitre saws) must be kept clean and lubricated according to plan.

• Pneumatics: Hoses and cylinders must be checked for leaks.

Preventive maintenance by trained personnel is the key to avoiding costly breakdowns. Thanks to our long-standing experience, we can ensure that such inspections—whether by our service team or your trained on-site staff—are always carried out with the highest diligence regarding quality and CE-compliant safety, guaranteeing the longevity and precision of your investment.

The Future of Aluminium Cutting: Trends and Innovations

Development does not stand still. Three major trends are shaping the future of aluminium cutting machines.

1. Full Automation and Robotics

The next step is the "autonomous sawing cell." A robot takes the 6-meter bars from an intelligent storage system, loads them into the saw, starts the optimized cutting job, and removes the finished parts. It sorts them, deburrs them if necessary, and stacks them for the next process step. The human only handles supervision and programming.

2. Integration and Industry 4.0

The saw becomes an intelligent node in the network (IoT). It reports its status (parts produced, remaining blade life) live to the MES (Manufacturing Execution System). It autonomously orders a new saw blade before the old one becomes dull (Predictive Maintenance). The entire production becomes transparent and controllable in real-time.

3. Efficiency and Sustainability

The pressure to conserve resources is increasing.

• Energy Efficiency: Modern servo motors and intelligent controls consume significantly less electricity than old hydraulic units or motors that run continuously.

• Lubricants: The trend is clearly towards Minimal Quantity Lubrication (MQL) to eliminate the use of cooling emulsions and enable clean, dry production.

• Chip Management: Efficient chip extraction and briquetting systems are important for returning the valuable aluminium to the recycling loop in a sorted manner.

Frequently Asked Questions (FAQ)

What is the difference between a cold saw and a high-speed aluminium saw?

The main difference lies in the speed and the saw blade. A cold saw runs slowly (e.g., 60 RPM) with an HSS blade and flood cooling, ideal for solid material and thick tubes to produce a cool, burr-free cut. A high-speed saw runs fast (e.g., 4,000 RPM) with a carbide (TCT) blade and Minimal Quantity Lubrication (MQL). It is the standard for the fast cutting of thin-walled aluminium profiles.

Why is a negative rake angle important when sawing aluminium profiles?

A negative rake angle (the tooth tip is slightly tilted backward) is crucial for safety and quality when cutting thin-walled profiles. A positive angle would "aggressively" bite into the thin material, lifting, bending, or jamming it. The negative angle has a "scraping" or "planing" action, presses the profile stable against the fence, and prevents the blade from "climbing." This ensures a clean cut without deformation.

Do I always need cooling or lubrication when cutting aluminium?

Yes, without exception. Aluminium has a strong tendency to stick to the cutting edge and "smear" (built-up edge). Without lubrication, the saw blade would clog with adhered material within a very short time, the cut quality would drop drastically, and the blade would be destroyed by overheating. Modern minimal quantity lubrication (MQL) systems are extremely efficient and clean.

---
