PLASTIC PROFILE MACHINING CENTER EVO G800 K

‹ ›

PLASTIC PROFILE MACHINING CENTER EVO G800 K – CNC PROFILE MACHINING CENTRE - 4 AXES

Precision, Efficiency and Flexibility for Industrial PVC and Plastic Profile Processing

Advanced CNC Technology for PVC Profiles, Plastic Profiles and Technical Profile Systems

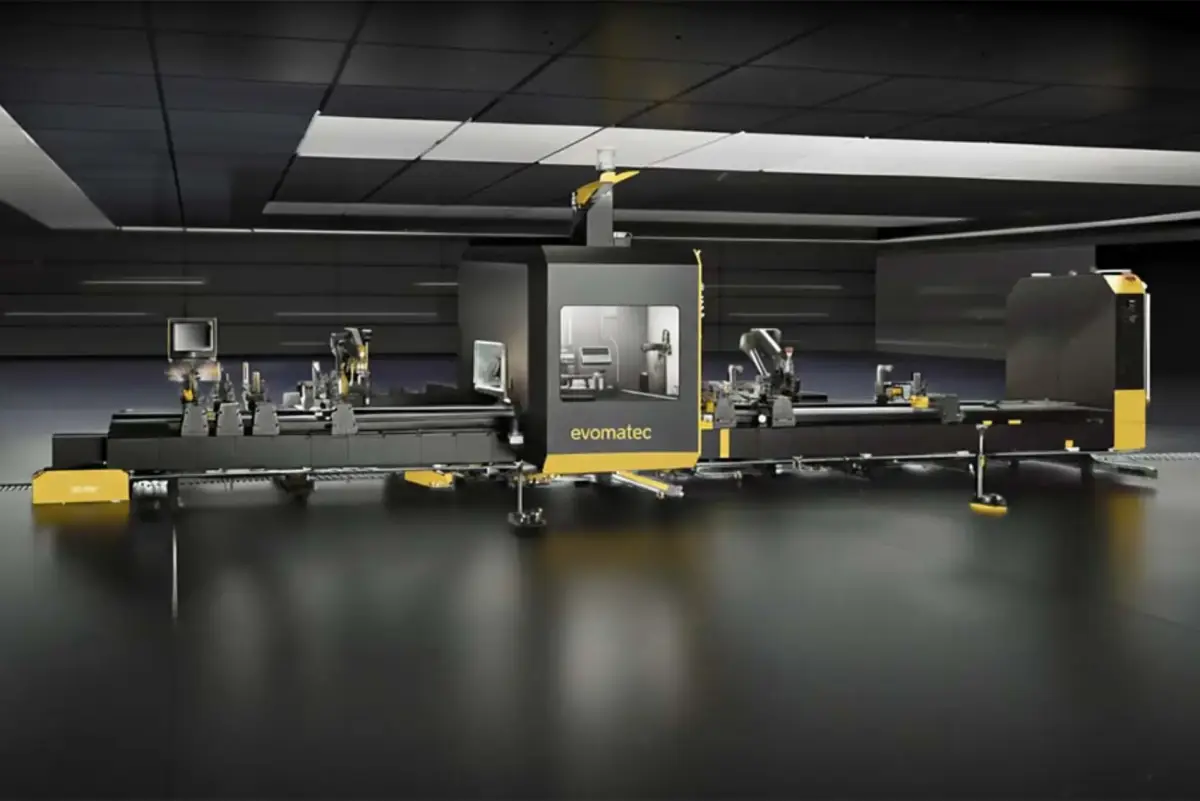

The EVO G800 K CNC Profile Machining Center by EVOMATEC is a modern, high-performance solution for automated machining of PVC profiles, plastic profiles, and demanding industrial profile systems. Designed for consistent accuracy and stable production output, the machine combines 4 servo-controlled axes with a rotating spindle unit from -90° to +90° and a compact, efficient working area of 580 × 290 mm. This configuration enables versatile machining operations such as milling, drilling, drainage channel opening, marking, and end milling in one reliable CNC process.

With its dynamic axis motion, integrated tool management, and intelligent clamping technology, the EVO G800 K supports efficient workflows with reduced operator effort. It is a powerful option for manufacturers working in PVC window production, plastic door profile processing, façade-related profile machining, and industrial profile applications that require repeatable quality and high cycle stability.

Advanced Technology for High Output and Stable Process Quality

High-Power Spindle and Automated Tool Handling

The EVO G800 K combines advanced CNC control with practical industrial efficiency. Its 9 kW spindle system supports demanding machining cycles for plastic profile machining with clean results and high repeatability. The automatic tool changer allows continuous machining sequences without unnecessary interruptions, keeping throughput consistent even with varying profile geometries and processing tasks.

A 20-position tool magazine, synchronized with the moving gantry, enables fast tool changes and reduces setup time. Optional automatic lubrication supports long-term axis performance and helps minimize maintenance requirements. The enclosed protective cabin provides a safe and clean machining environment, supporting stable production conditions in daily industrial operation.

Technical Highlights of the EVO G800 K

Machining Capacity

• X-axis (longitudinal): 8,000 mm (optionally extendable)
• Y-axis (transverse): 580 mm
• Z-axis (vertical): 290 mm
• A-axis (spindle rotation): -90° to +90°

Positioning Speed

• X-axis: 84 m/min
• Y-axis: 75 m/min
• Z-axis: 40 m/min
• A-axis (rotation): 100°/s

Electrical Specifications

• Total power: 18.3 kW
• Frequency: 50–60 Hz
• Voltage: 400 V, 3N PE AC

Spindle System

• Spindle power: 9 kW
• Tool holder: ISO 30
• Cooling: Electric fan
• Maximum speed: 24,000 rpm

Tool Magazine

• Automatic Tool Changer (ATC): Umbrella type
• Capacity: 20 tools
• Automatic tool measurement: integrated
• Max. saw blade diameter: 180 mm

Control and Software Integration

• Industrial PC with 15″ touchscreen
• Barcode scanner for automatic program selection
• Camquix CAM software preinstalled
• CadXtract CAD/CAM optional
• Data transfer: Ethernet, USB, remote access

Pneumatics and Air System

• Operating pressure: 6–8 bar
• Thread tapping capacity: M8
• FESTO pneumatic system optional

Profile Positioning and Work Area

• Pneumatic profile referencing (right and left)
• Standard clamping fixtures: 8 (up to 10 optional)
• Servo-controlled clamping position (optional)
• Automatic lubrication and chip extraction (optional)

Industrial Advantages of EVO G800 K CNC Technology

Stable Precision and High-Speed Profile Machining

The EVO G800 K is built for consistent machining performance in industrial PVC profile processing. Repeatable accuracy of up to ±0.1 mm supports reliable quality even in series production. Servo-controlled axis motion combined with automated tool changes reduces cycle time while maintaining machining stability for complex profile structures.

High Productivity with Operator-Friendly Workflow

Automated clamping ensures secure profile fixation, while CAM integration supports efficient programming and structured production planning. Digital axis control improves motion smoothness and reduces vibration, allowing clean surface quality and stable machining results across different plastic profile systems.

Durable Construction and Safe Working Environment

A rigid machine frame, a closed protective cabin, and optional lubrication solutions support long-term reliability. These features help reduce maintenance intervals and ensure stable performance for daily profile machining operations in industrial environments.

Application Areas for PVC and Plastic Profile Processing

Window Manufacturing

• Milling, drilling, and machining of PVC frame and sash profiles
• Processing of drainage openings and functional profile channels

Door Manufacturing

• Precise machining of PVC door frames and lock areas
• Reliable profile processing for reinforced plastic profile constructions

Façade and Construction Profile Systems

• Machining of large-format profiles and variable-angle operations
• Flexible production for customized profile solutions

Industrial Profile Fabrication

• CNC machining of technical plastic profiles for industrial applications
• Processing of customized profile components with repeatable quality

Why Choose EVOMATEC for Plastic Profile Machining

EVOMATEC focuses on industrial reliability, efficient automation, and practical CNC solutions for modern profile production. The EVO G800 K combines a powerful spindle unit, intelligent tool handling, and flexible machining capability to support manufacturers who require stable quality and efficient profile processing in PVC and plastic production environments.

Key Advantages

• Servo-controlled 4-axis machining technology
• Automatic tool changer with 20 positions
• Repeat accuracy up to ±0.1 mm
• Machining lengths up to 8 meters
• CAM and CAD compatibility for professional programming
• Energy-efficient design and reduced maintenance effort

Conclusion – Future-Proof Plastic Profile Processing with EVO G800 K

The EVO G800 K CNC Profile Machining Center from EVOMATEC combines precision, spindle power, and industrial automation in one compact and efficient system. With 4-axis CNC control, a 9 kW spindle, automatic tool management, and digital production integration, the EVO G800 K is a reliable choice for manufacturers looking for high-quality results and stable productivity in PVC profile machining and plastic profile processing.

EVO G800 K – Your Key to Efficient, Precise, and Future-Proof Plastic Profile Machining.
