4-AXIS CNC PROFILE MACHINING CENTER FOR PLASTIC PROFILES EVO MILWAUKEE MATIC II K

‹ ›

4-Axis CNC Profile Machining Center for Plastic Profiles EVO MILWAUKEE MATIC II K

Industrial Quality for Precise Profile Processing in Plastics, PVC and Technical Plastics

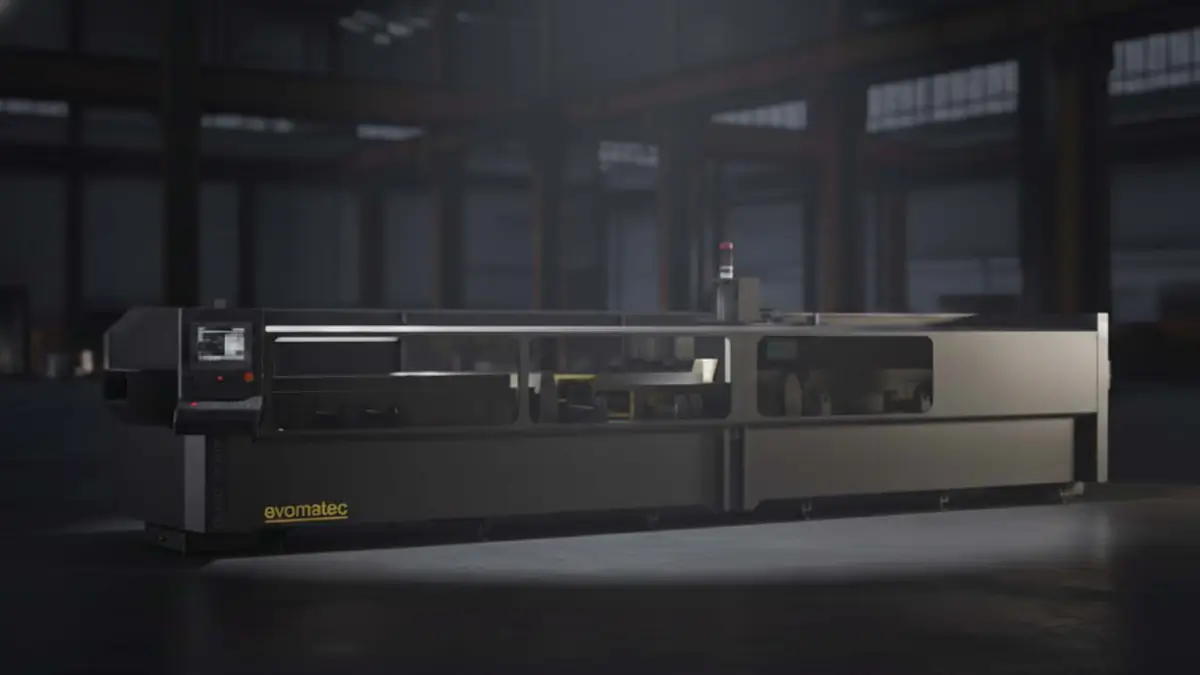

The EVO MILWAUKEE MATIC II K is a powerful 4-axis CNC profile machining center for modern series production and flexible job processing of plastic profiles. As a profile machining center, the machine combines multiple work steps in one system and increases productivity in window manufacturing, door manufacturing, façade manufacturing, as well as in industrial plastic profile production. The concept is designed to simplify processes, reduce setup times, and ensure consistently high quality. Users looking for a CNC machining center for plastic profiles benefit from a continuous workflow for milling, drilling, drainage holes, notching, marking, and end milling, both for standard profiles and demanding special geometries.

Robust Construction for Reproducible Results in Plastic Machining

Thanks to the robust design, well-thought-out automation, and high axis dynamics, the EVO MILWAUKEE MATIC II K is a future-proof machining center for profiles and, in particular, a profile machining center for plastic profiles with precise, reproducible results. In plastic machining, clean edges, low-burr milling quality, accurate hole patterns, and process-reliable sequences in continuous operation are crucial. This is exactly what the system is designed for. Production becomes more predictable, rework decreases, and output increases because operations are deliberately combined and implemented within one clamping concept.

Large Travel Range and Flexible Angle Machining for Different Profile Cross-Sections

Machining Length for Long Plastic Profiles and Series Production

With a machining length of 8000 mm on the X-axis, the EVO MILWAUKEE MATIC II K is designed for long plastic profiles and efficient series workflows. The working range of 340 mm in Y and 255 mm in Z provides additional freedom for wide and tall profile cross-sections.

A-Axis from -90 to +90 Degrees for Complex Contours

The A-axis enables angle machining from -90 degrees to +90 degrees, allowing machining on different profile sides, at various angles, and on complex contours to be carried out efficiently in one sequence. This makes the system particularly suitable for companies that must manage changing profile types, variable machining operations, and different profile geometries economically.

Bar Machining Center for Plastic Profiles and Continuous Material Flow

In practice, the system is established as a reliable bar machining center for plastic profiles for long bar stock and as a bar machining center for profiles when different suitable profile materials are processed in one production environment. Anyone looking for high process density within a compact footprint uses the EVO MILWAUKEE MATIC II K as a CNC bar machining center for fast, structured, and repeatable workflows in plastic profile production.

Spindle, Tool Change and Precision as the Basis for Stable Processes

5.6 kW Spindle, 20,000 rpm and HSK F50 Tool Holder

At the core is a 5.6 kW spindle with up to 20,000 rpm, HSK F50 tool holder, and liquid cooling. This configuration supports stable cutting conditions for plastics, PVC, and suitable technical plastics.

16-Tool Linear Magazine and Automatic Tool Measurement

Automatic tool change via an integrated linear magazine with 16 tools significantly reduces setup times and makes the machine especially efficient when frequent switching between different machining operations is required. Automatic tool measurement increases process reliability because tool lengths and offsets are checked without unnecessarily interrupting the workflow.

CNC Drilling and Milling Center for Plastic Profiles in One Clamping Operation

This makes the system a powerful CNC milling center for plastic profiles in everyday use and at the same time a CNC drilling and milling center for profiles, because drilling, pockets, grooves, and contours are completed in one clamping operation. For users looking for a combined solution, it is a CNC drilling-milling center for plastic profiles, because drilling and milling are reliably combined in one process.

High Axis Dynamics for Short Non-Productive Times and Strong Output

Fast Positioning Speeds for Productive Series Workflows

For productive series workflows, the positioning speeds are designed for rapid travel. The X-axis travels up to 90 m/min, the Y-axis up to 60 m/min, and the Z-axis up to 20 m/min. The A-axis reaches 166 degrees per second. This combination ensures short non-productive times, quick position changes, and stable machining windows without compromising dimensional accuracy.

Consistently Reproducible Machining Quality in Plastic Profile Production

The result is consistently reproducible machining that saves time in series production and visibly improves process quality. In daily production, the EVO MILWAUKEE MATIC II K is therefore often used as CNC profile machining for plastics, because it covers the typical requirements of the profile industry: repeatable hole patterns, clean milled edges, precise angle machining, and stable material flow.

Automatic Clamping Technology, Dual Linear-Rail Bridge and Clean Surfaces

Fully Automatic Collet Positioning for Fast Setup Processes

A key advantage is automation in the clamping area. The collets are positioned fully automatically via the X-axis, reducing operator workload during setup and handling tasks. As standard, 8 collets are provided, with a maximum of 10 possible. This allows the EVO MILWAUKEE MATIC II K to be optimally configured depending on profile geometry, profile weight, and machining strategy.

High Rigidity for Better Surfaces and More Precise Contours

The bridge construction with dual linear rails is designed for high rigidity and durability. Less vibration means better surfaces, more precise contours, and a cleaner machining result, especially on long profiles and dynamic programs. In addition, protective solutions in the machining area support the workpiece surface and help keep the process zone clean.

Control, Software and Options for Digitally Guided Production

Industrial PC with 15-Inch Touchscreen and Barcode Reader

The control system is based on an industrial PC with a 15-inch touchscreen and a barcode reader for fast job assignment. The system is supplied with Camquix CAM software; optionally, the CadXtract CAD-CAM production program can be added.

Options for Extended Applications and Plant Standards

For extended applications, an optional tapping function up to M8 is available with a pneumatic tapping head. Optional features also include automatic lubrication, an automatic tool cooling system, and a FESTO pneumatic system. In this way, the EVO MILWAUKEE MATIC II K can be implemented as a highly automated plastic profile machining center depending on plant standards and application requirements.

Technical Data EVO MILWAUKEE MATIC II K
