PLASTIC PROFILE MACHINING CENTER 3 AXIS - EVO K LILIPUT

‹ ›

PLASTIC MACHINING CENTER EVO K LILIPUT – 3-AXIS NC COMPACT MACHINING CENTER WITH COPY MILLING FUNCTION

Precision, Compact Design and Efficient Workflow in PVC and Plastic Profile Processing

High-Performance Compact Machining for PVC Profiles, Plastic Profiles and Technical Profile Systems

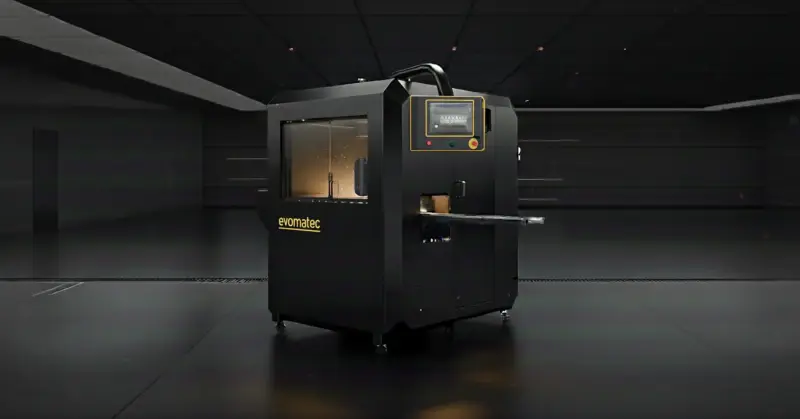

The EVO K LILIPUT Plastic Machining Center is a modern 3-axis NC compact machining center with an integrated copy milling function, developed for precise machining of plastic profiles, PVC profiles, and industrial profile systems. The machine is designed for manufacturers who want high machining quality while keeping the footprint compact. This makes the EVO K LILIPUT an excellent solution for workshops and production facilities with limited space, especially in window, door, and façade-related profile manufacturing.

With servo-controlled axis motion, intuitive control operation, laser-supported positioning, and strong spindle performance, the EVO K LILIPUT enables stable milling results for daily production needs. Typical operations such as slot milling, drilling, recess machining, and functional openings can be completed with reliable repeat accuracy, ensuring clean profile assembly and consistent product quality.

Technological Innovation by EVOMATEC

Advanced NC Engineering for Clean Results and Repeatable Precision

The EVO K LILIPUT uses modern NC technology and milling engineering to deliver accurate machining results for PVC profile processing and plastic profile machining. Three independently driven spindle motors allow simultaneous machining on three sides of a profile. This multi-surface processing concept reduces handling effort, supports stable machining, and improves overall production efficiency.

Parametric machining templates within the control software allow users to define, store, and repeat common profile operations. This includes lock slots, handle openings, hinge recesses, drainage paths, and fastening holes. The 10-inch touchscreen interface supports quick programming and easy operation, while the laser alignment system improves profile positioning and reduces operator-related setup errors.

Main Features of the EVO K LILIPUT NC Machining Center

• 10″ touchscreen control panel with a user-friendly interface
• Independent spindle motors for machining multiple profile surfaces
• Copy milling function for complex PVC and plastic profile machining
• Integrated cooling system to support tool life and stable machining quality
• Horizontal and vertical pneumatic clamping system (2 upper, 2 front)
• Laser alignment with right and left positioning stops for accurate profile setup
• Parametric program templates for fast, repeatable machining cycles

Standard and Optional Equipment

Standard Equipment

• Cooling system
• Pneumatic clamping units (2 upper, 2 front)
• Three 6 mm milling cutters
• Right and left positioning stop
• Laser alignment system

Optional Equipment

• Milling cutters in 5, 6, 8, and 10 mm diameters
• Servo-controlled profile support for long PVC profiles and plastic profiles
• 45° drainage slot milling for water drainage profile applications

Technical Specifications of the EVO K LILIPUT

Machining Travel

• X-axis: 350 mm
• Y-axis: 150 mm
• Z-axis: 120 mm

Positioning Speed

• X/Y/Z: 30 m/min

Electrical Specifications

• Maximum Power: 12 kW
• 400 V
• 50–60 Hz
• 3 Phases

Spindles

• Number: 3
• Speed: 18,000 rpm
• Power: 3 kW
• Tool Holder: ER 20

Control Unit

• 10″ touchscreen
• USB data transfer (standard)
• Smart-CAM post-processing (optional)

Compressed Air

• 6–8 bar
• Consumption: 40 L/min

Work Area and Equipment

• Four clamping fixtures
• Automatic cooling system
• Fully enclosed safety cabin

Applications in PVC and Plastic Profile Manufacturing

The EVO K LILIPUT is designed for flexible production tasks where clean milling quality and repeatable accuracy are essential. It is suitable for a wide variety of profile processing operations in industrial manufacturing.

Typical Application Areas

• Window manufacturing: milling of handle openings, lock areas, latch slots, and drainage machining in PVC profiles
• Door production: machining of frame and sash profiles for plastic door systems
• Façade construction: machining of profile joints and connection geometries for technical profile systems
• Furniture and interior applications: machining of plastic profile connections and assembly elements
• Mechanical and lightweight construction: precise milling of functional components made from plastic profiles

Due to stable machining accuracy and reliable repeatability, the EVO K LILIPUT supports faster assembly workflows, improved fit accuracy, and reduced rework in profile production.

Flexibility with EVOMATEC Technology

Modular Expansion for Tailored Profile Processing Efficiency

The EVO K LILIPUT is designed as a compact system with expandable options. Additional tool sets and support solutions allow the machine to be configured to match specific production requirements while maintaining consistent precision. The optional servo-controlled profile support increases stability when machining longer PVC profiles, and different cutter sizes allow a wider variety of machining operations across different profile designs.

Conclusion – Compact Performance for Precise Profile Machining

The EVO K LILIPUT 3-axis NC Compact Machining Center combines precise milling capability, practical automation, and space-saving construction in one system. With a strong spindle concept, operator-friendly touchscreen control, and efficient copy milling functionality, the EVO K LILIPUT is an ideal solution for manufacturers looking for reliable quality, fast workflows, and stable production performance in PVC profile machining and plastic profile processing.

EVOMATEC – Precision and Innovation for Your Production

Contact: Click Here
