DOUBLE MITER SAW FOR PVC PLASTIC PROFILES EVOG K SAW

‹ ›

Double Mitre Saw for PVC Plastic Profiles – EVOG K SAW

Maximum Precision, Industrial Efficiency and Digital Control for Plastic Profile Machining

Precision and Performance for Professional Cutting of PVC Profiles

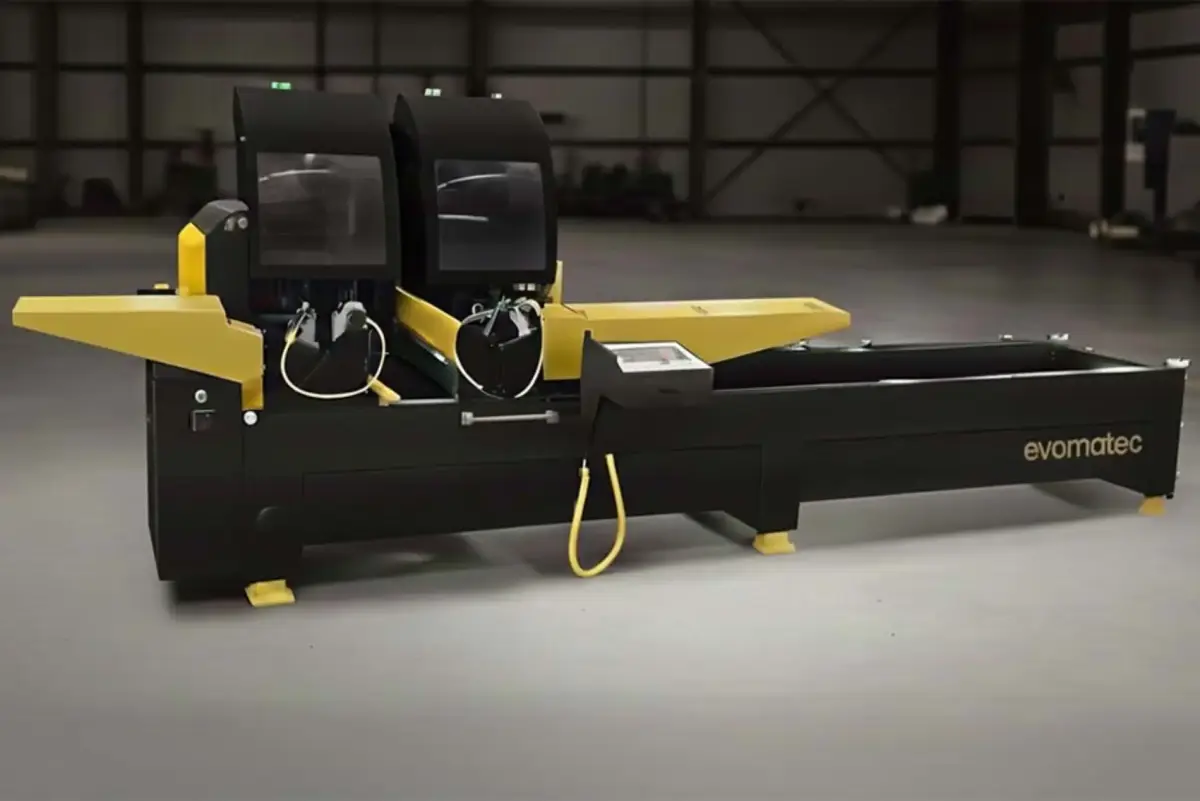

The EVOG K SAW double mitre saw from EVOMATEC is a robust, high-precision CNC solution for cutting PVC plastic profiles in window, door and façade production. With two synchronously operating saw units, digital angle control and a stable machine structure, the system delivers dimensionally accurate, clean cuts with consistently high repeatability. This makes the machine ideal for serial production as well as demanding job order manufacturing with changing profile geometries. Modern drive technology, intelligent CNC control and precise clamping and guiding processes support efficient production with high output, reproducible results and minimized material loss.

Double-Sided Cutting with Maximum Accuracy

High-Performance Cutting for Industrial Requirements

The EVOG K SAW enables simultaneous double-sided cutting of PVC plastic profiles. The two saw units can work synchronously or independently, making the system ideal for frame and sash joints in window, door and façade production systems. Parallel cutting reduces cycle times, increases throughput and maintains dimensional accuracy consistently over longer production runs. The stable machine design ensures smooth operation and constant cutting quality, even during continuous use in multi-shift production environments.

Digital Mitre Control for Angles from 45° to 90°

CNC Accuracy for Every Frame Geometry

Both saw units can be infinitely adjusted within a range of 45° to 90° via automatic CNC angle control. This enables reproducible mitre cuts for corner joints, frame constructions and individual profile applications. Especially with changing orders and varying profile cross-sections, reliable angle repeatability is a key advantage for consistently perfect fit results. The servo-assisted angle adjustment supports stable process control regardless of profile shape, wall thickness or surface characteristics.

CNC Control for Millimeter-Accurate Profile Cutting

Intelligent Automation for Fast and Safe Processes

With digital length measurement and CNC positioning, the EVOG K SAW aligns PVC profiles with millimeter accuracy and ensures precise, repeatable cuts. The control system supports process-reliable workflows, reduces typical operating errors and simplifies the implementation of serial programs as well as variable cutting requirements. Via EVOSOFT, programs can be saved, parameters adjusted and angles managed digitally. This simplifies production for series orders while also enabling flexible changeovers for project-based manufacturing.

Versatility for Different Plastic Profile Geometries

Flexible Cutting for Complex Profile Shapes

The EVOG K SAW is suitable for a wide range of PVC plastic profiles, including rectangular profiles as well as multi-chamber profile geometries. The coordinated saw blade technology ensures clean cutting edges and reliable results, even with thin-walled profiles or demanding surfaces. The result is uniform cut surfaces, precise connections and clean edge finishes that support accurate further processing in window, door and façade systems.

Automation and Integration into Production Lines

Compatible with Digital Production Workflows

The EVOG K SAW can be supplied as a CNC variant with automatic positioning and can be integrated into digital production processes. This creates structured workflows designed for efficiency from profile handling through to cutting. In automated lines, the machine supports consistent quality with reduced time per component and improves planning reliability in serial production. Integration into existing production environments helps increase productivity without complicating daily operation.

Typical Applications

PVC window production: frame and sash profiles PVC door production: 45° and 90° cuts for door frames and constructions Façade construction: precise cuts for plastic profiles in system solutions Conservatory construction and special structures: variable angles and individual geometries Industrial profiles: cutting for technical plastic frames and assemblies Profile constructions: precise corner joints for serial and project production

Technical Specifications EVOG K SAW

Optional Equipment and Functions

CNC positioning of both saw heads Automatic profile infeed and outfeed Digital angle and length storage Optimization of cutting parameters via EVOSOFT Cooling option for clean cutting edges Barcode connection for automated workflows USB / Ethernet interface for data exchange Compatibility with common production and planning systems

Advantages of the EVOG K SAW

1. High Cutting Quality for Serial Production

Synchronized saw units support clean cutting edges and stable angle accuracy, even at high cycle rates.

2. Highly Repeatable CNC Processes

Digital control ensures consistent results, short set-up times and predictable production workflows.

3. Efficient Workflows and Reduced Process Costs

Optimized motion and positioning logic minimizes idle times, increases output and reduces material loss.

4. Robust Machine Concept for Continuous Operation

Stable construction and durable components ensure reliable use in daily production operations.

5. Safety in Industrial Use

CE-compliant protection systems, emergency stop and clearly structured operating logic increase occupational safety for operating personnel.

Quality Assurance and Production Reliability

Each EVOG K SAW is inspected, calibrated and tested according to defined standards. This ensures that EVOMATEC provides a machine that works reliably in everyday production and delivers reproducible results. This includes controlled functional tests, safety-relevant system checks and precise coordination of all cutting and positioning functions.

Conclusion – Precision, Stability and Efficiency for Cutting PVC Profiles

The EVOG K SAW sets new standards for precise, process-reliable and economical cutting of PVC plastic profiles. The combination of digital angle control, CNC positioning and robust machine design makes it the ideal solution for manufacturers who expect consistent quality, high repeat accuracy and efficient workflows in window, door and façade production. EVOMATEC – machines for the precise machining of plastic profiles
